Soft State Seamless Busbar Conductor Rail with Oxygen-Free Copper Core for Overhead Crane Applications
Price:
CN¥6.97-31.36/units
MOQ:
50M
Delivery Time:
3 DAYS
Brand:
HGCRANE
Product Description

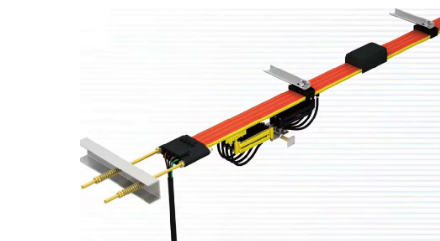

Soft State Safety Seamless Busbar Overhead Crane Conductor Rail
Our advanced crane busbar system delivers reliable power transmission for heavy machinery operations with customizable voltage requirements. Engineered for optimal performance and safety in demanding industrial environments.
Premium Construction: 99.99% oxygen-free copper core ensures superior conductivity and long-term reliability.
Key Features
- Seamless conductor design eliminates voltage drops and power interruptions
- Excellent conductivity with minimal energy loss
- Simple installation and maintenance procedures
- Durable construction resists wear and extends service life
- Flexible design allows for easy modifications and replacements
- Compact size for efficient transportation and handling
- Enhanced safety features prevent contact line injuries
Technical Specifications
| Turning Radius | Minimum turning radius 750 mm |

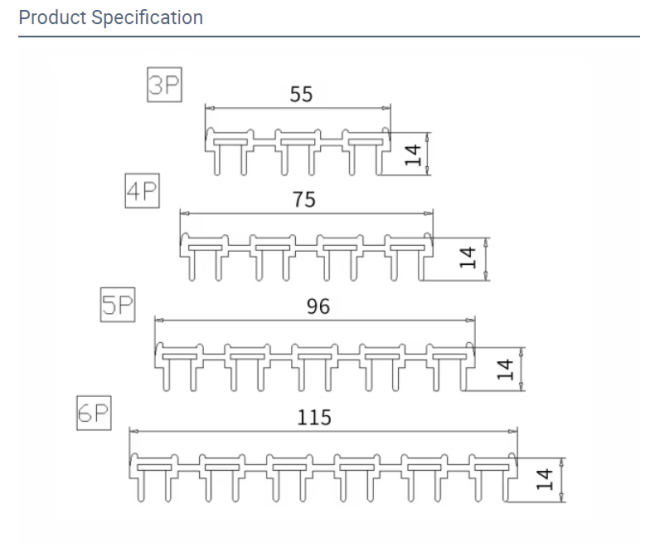

| Conductor Quantity | 3P, 4P, 6P configurations available |
| Current Rating | 50A to 120A |
| Key Characteristics | No interface, compact size, easy installation, simple maintenance, bendable design |
| Applications | Single beam cranes, gantry cranes, entertainment facilities, warehouse storage equipment, and similar industrial machinery |
Product Images

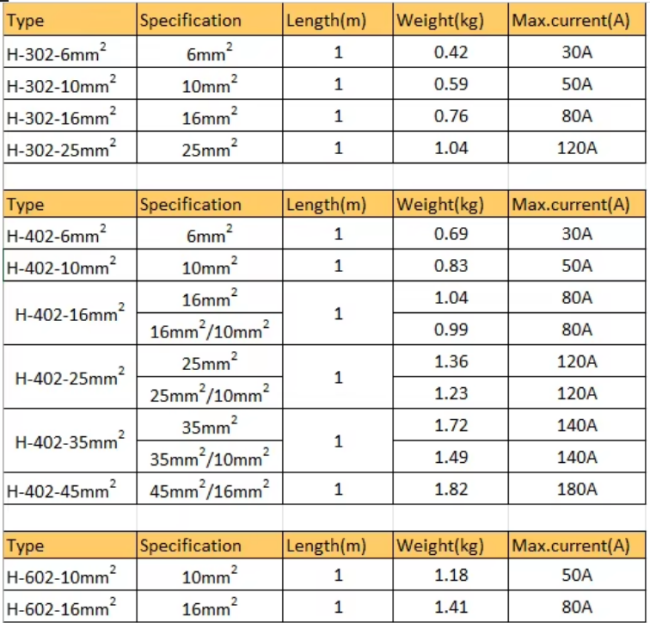

| Type | Specification | Length(m) | Weight(kg) | Max.current(A) |
| H-302-6mm² | 6mm² | 1 | 0.42 | 30A |
| H-302-10mm² | 10mm² | 1 | 0.59 | 50A |
| H-302-16mm² | 16mm² | 1 | 0.76 | 80A |
| H-302-25mm² | 25mm² | 1 | 1.04 | 120A |
| Type | Specification | Length(m) | Weight(kg) | Max.current(A) |
| H-402-6mm² | 6mm² | 1 | 0.69 | 30A |
| H-402-10mm² | 10mm² | 1 | 0.83 | 50A |
| H-402-16mm² | 16mm² | 1 | 1.04 | 80A |
| 16mm²/10mm² | 1 | 0.99 | 80A | |
| H-402-25mm² | 25mm² | 1 | 1.36 | 120A |
| 25mm²/10mm² | 1 | 1.23 | 120A | |
| H-402-35mm² | 35mm² | 1 | 1.72 | 140A |
| 35mm²/10mm² | 1.49 | 140A | ||
| H-402-35mm² | 45mm²/16mm² | 1 | 1.82 | 180A |
| Type | Specification | Length(m) | Weight(kg) | Max.current(A) |
| H-602-10mm² | 10mm² | 1 | 1.18 | 50A |
| H-602-16mm² | 16mm² | 1 | 1.41 | 80A |

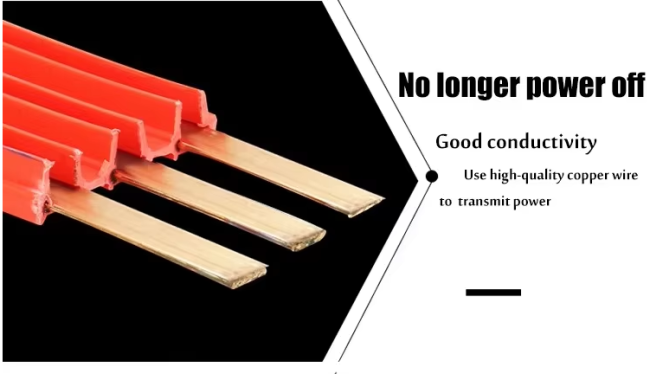

No longer power off
Good conductivity Use high-quality copper wire to transmit power

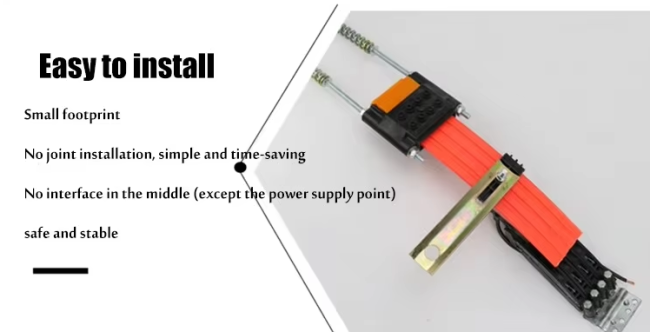

Easyto install
Small footprint
No joint installation, simple and time-saving
No interface in the middle (except the power supply point)
safe and stable
