Robust R Series Three Stage Reduction Helical Gear Reducer with High Transmission Efficiency and Hardened Gear for Engineering Machinery
Price:
CN¥1,149.82/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
HUAGONG
Product Description
Robust R Series Helical Three Stage Reduction Gearbox
Engineered for demanding applications in engineering and building materials machinery, the R Series helical gear reducer delivers exceptional performance and reliability.
Product Overview
The R series helical gear hardened gear reducer features serialized and modular design concepts with precisely graded transmission ratios. This advanced gearbox offers high transmission efficiency, low energy consumption, superior performance characteristics, and broad application adaptability.
- Multiple motor combinations and mounting positions available
- Flexible structural solutions tailored to specific requirements
- Customizable speed options and structural configurations
- All transmission gears feature high-frequency heat treatment
- Enhanced gear hardness and abrasion resistance
- Meets international technical standards for comparable products
Technical Specifications
| specification | R17 | R27 | R37 | R47 | R57 | R67 | R77 |
| Input power(KW) | 0.12-0.75 | 0.12-3 | 0.12-3 | 0.12-5.5 | 0.12-7.5 | 0.12-7.5 | 0.18-11 |
| Gear ratio | 3.83-81.64 | 3.37-135 | 3.83-134.8 | 3.83-177 | 4.39-187 | 4.29-199.8 | 5.31-195.2 |
| Maximum torque(N·m) | 87 | 128 | 196 | 305 | 440 | 595 | 705 |
| specification | R87 | R97 | R107 | R137 | R147 | R167 | |
| Input power(KW) | 0.55-22 | 0.55-30 | 2.2-45 | 5.5-55 | 11-90 | 11-160 | |
| Gear ratio | 5.3-246.54 | 4.5-289-74 | 5.04-251.17 | 5.15-223.6 | 5-163.31 | 5-229.71 | |
| Maximum torque(N·m) | 1310 | 2110 | 4380 | 7910 | 12700 | 17700 | |
| specification | RX37 | RX57 | RX67 | RX77 | RX87 | RX97 | RX107 |
| Input power(KW) | 0.12-1.1 | 0.12-5.5 | 0.12-7.5 | 1.1-11 | 3-22 | 5.5-30 | 5.5-45 |
| Gear ratio | 1.62-4.43 | 1.3-5.5 | 1.4-6.07 | 1.42-5.63 | 1.39-6.45 | 1.42-5.79 | 1.44-6.63 |
| Maximum torque(N·m) | 20 | 71 | 120 | 215 | 395 | 600 | 810 |

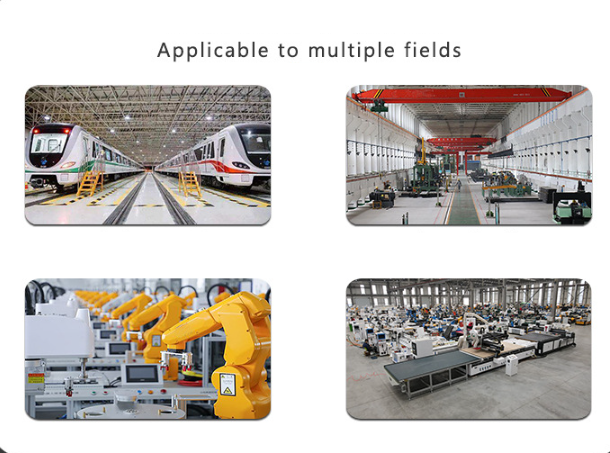

Application Industries
The R series gear reducers are extensively utilized across multiple industrial sectors including:
- Light industry and food processing
- Beverage and brewery equipment
- Chemical processing plants
- Escalators and automated warehousing systems
- Building materials machinery
- Steel metallurgy and environmental protection
- Power generation and coal mining
- Paper manufacturing and automotive
- Port and airport machinery
- Tobacco processing equipment
Product Details
Gear unit weight
| Size | R17 | R27 | R37 | R47 | R57 | R67 | R77 | R87 | R97 | R107 | R137 | R147 | R167 |
| Weight (kg) | 4 | 5.5 | 8.5 | 10 | 18 | 25 | 36 | 63 | 101 | 153 | 220 | 400 | 700 |
Input power rating and permissible torque
| Size | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
| Structure | R / RF | ||||||||||||
| Input power rating (kW) | 0.18~0.75 | 0.18~3 | 0.18~3 | 0.18~5.5 | 0.18~7.5 | 0.18~7.5 | 0.18~11 | 0.55~22 | 0.55~30 | 2.2~45 | 5.5~55 | 11~90 | 11~160 |
| Ratio | 3.83~74.84 | 3.37~135.09 | 3.33~134.82 | 3.83~176.88 | 4.39~186.89 | 4.29~199.81 | 5.21~195.24 | 5.36~246.54 | 4.49~289.74 | 5.06~249.16 | 5.15~222.60 | 5.00~163.31 | 10.24~229.71 |
| Permissible torque (N.m) | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 |
| Size | 37 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | ||||
| Structur | RX / RXF | ||||||||||||
| Input power rating (kW) | 0.18~1.1 | 0.18~5.5 | 0.18~7.5 | 1.1~11 | 3~22 | 5.5~30 | 7.5~45 | 7.5~90 | 11~132 | ||||
| Ratio | 1.62~4.43 | 1.3~5.5 | 1.4~6.07 | 1.42~8.00 | 1.39~8.65 | 1.42~8.23 | 1.44~6.63 | 1.51~6.2 | 1.57~6.2 | ||||
| Permissible torque (N.m) | 20 | 70 | 135 | 215 | 400 | 600 | 830 | 1110 | 1680 | ||||
