ODM Supports Nmrv 030 040 050 Worm Gearbox for Aluminum/Cast Iron Transmission Gear Drive

Name: ODM Supports Nmrv 030 040 050 Worm Gearbox for Aluminum/Cast Iron Transmission Gear Drive
Brand: Henan Huagong Industrial Group Co., Ltd.

Price Negotiable

Price: 88.88-99.99USD

MOQ: 1

Delivery Time: 7Days

Product Description

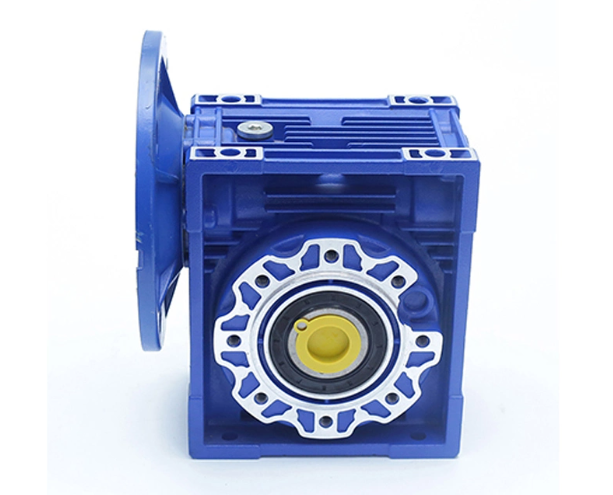

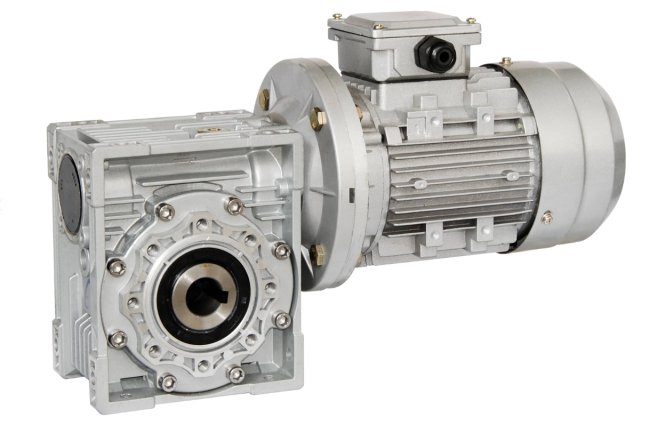

High Quality ODR Worm Gearbox

Premium mechanical reducer drive gear worm gearbox supporting NMRV 030, 040, and 050 models for aluminum and cast iron transmission applications.

Technical Specifications

Parameter	Specification
Model	025 ~ 150
Power	0.06kw ~ 15kw
Input Speed	750rpm ~ 2000rpm
Reduction Ratio	1/5 ~ 1/100
Input Motor	AC (1 phase or 3 phase) / DC / BLDC / Stepper / Servo
Output Shaft	Solid shaft / Hollow shaft / Output flange
Dimension Standard	Metric size / Inch size
Material of Housing	Die-cast aluminum / Cast iron / Stainless steel
Accessories	Flange / Solid shaft / Torque arm / Cover
Color	Blue / Silver / Customized

Product Features

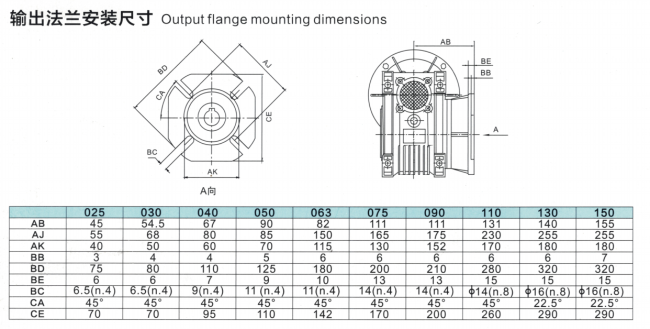

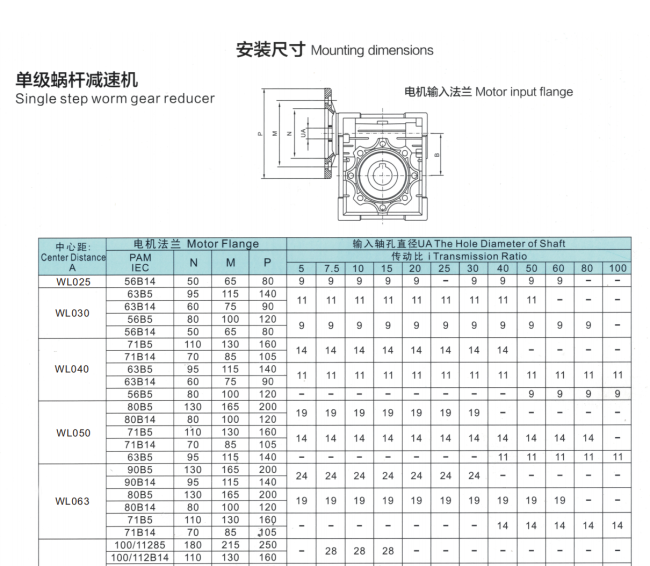

Detailed Specifications

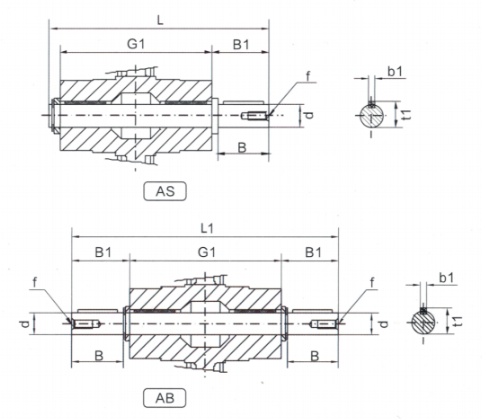

Size of double extension worm shaft(mm)
	d	B	B1	G1	L	L1	f	b1	t1
025	11g6(9)	23(25)	25.5(30)	50	81(85.5)	101	-	4(3)	12.5(10)
030	14 g6	30	32.5	63	102	128	M6	5	16
040	18 h6	40	43	78	128	164	M6	6	20.5
050	25 h6	50	53.5	92	153	199	M10	8	28
063	25 h6	50	53.5	112	173	219	M10	8	28
075	28 h6	60	63.5	120	192	247	M10	8	31
090	35 h6	80	84.5	140	234	309	M12	10	38
110	42 h6	80	84.5	155	249	324	M16	12	45
130	45 h6	80	85	170	265	340	M16	14	48.5
150	50 h6	82	87	200	297	374	M16	14	53.5

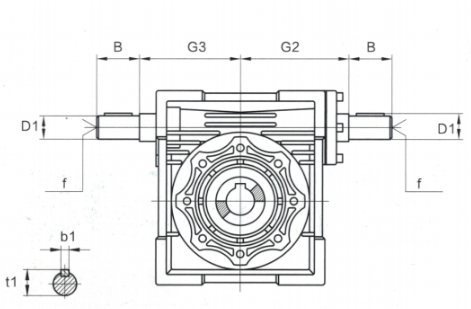

Size of double extension worm shaft(mm)
	G2	G3	D1(j6)	B	f	b1	t1
025	38	37	9	20	-	3	10.2
030	51	45	9	20	-	3	10.2
040	60	53	11	23	-	4	12.5
050	74	64	14	30	M6	5	16
063	90	75	19	40	M6	6	21.5
075	105	90	24	50	M8	8	27
090	125	108	24	50	M8	8	27
110	142	135	28	60	M10	8	31
130	162	155	30	80	M10	8	38
150	195	175	35	80	M12	10	38
