Hot-Selling HWS European-Type Fully Enclosed High Tensile Strength Wheel Assembly with High Load Capacity for Gantry Crane Traveling Wheel Block
Price:
250
MOQ:
1
Delivery Time:
25 DAYS
Brand:
HG Crane
Product Description
Highlights at a glance
and high-frequency surface hardening, providing excellent wear resistance
and a service life of over ten years

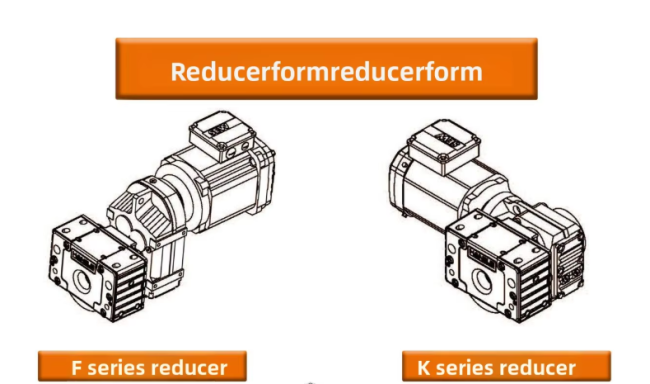

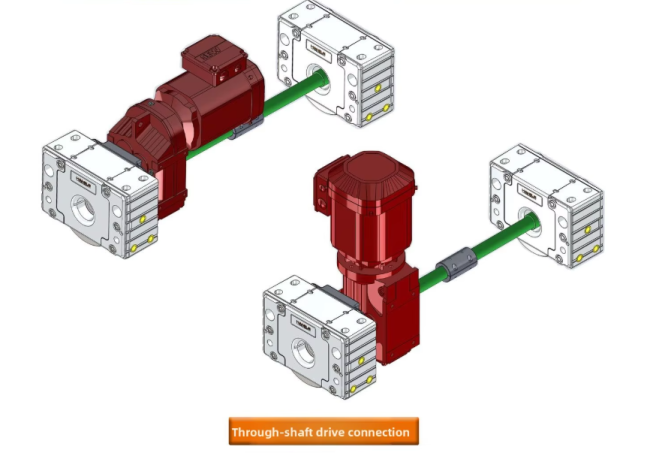

geared motor via spline shaft, ensuring a compact structure and rational design
and accurate installation
greatly reducing customers design cost and time for traveling mechanisms

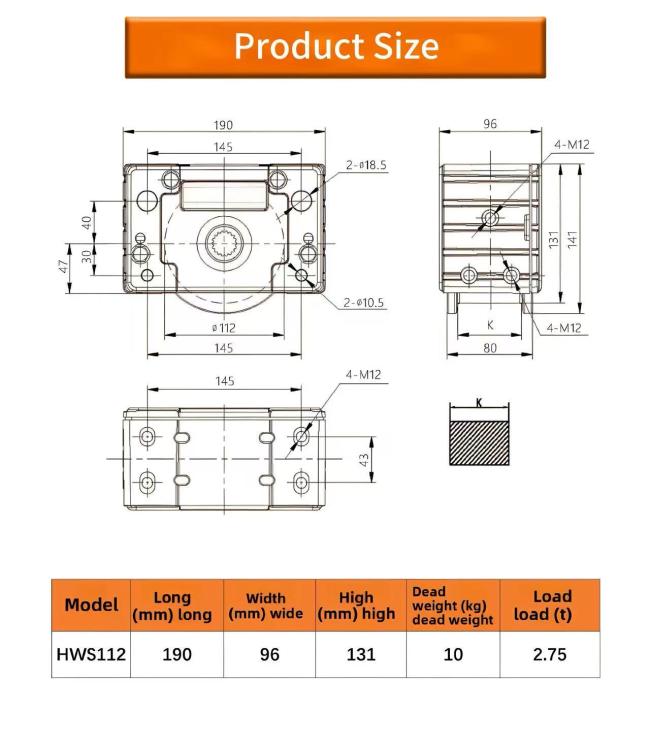

| Model | Long(mm) | Wide(mm) | High(mm) | Dead weight (kg)dead weight | Load(t) |
| HWS112 | 190 | 96 | 131 | 10 | 2.75 |

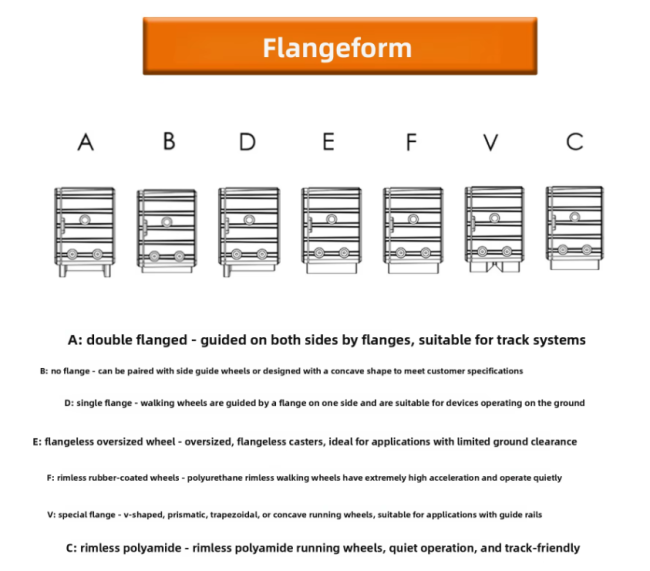

A: double flanged - guided on both sides by flanges, suitable for track systems
B: no flange - can be paired with side guide wheels or designed with a concave shape to meet customer specifications
D: single flange - walking wheels are guided by a flange on one side and are suitable for devices operating on the ground
E: flangeless oversized wheel - oversized, flangeless casters, ideal for applications with limited ground clearance
F: rimless rubber-coated wheels - polyurethane rimless walking wheels have extremely high acceleration and operate quietly
V: special flange - V-shaped, prismatic, trapezoidal, or concave running wheels, suitable for applications with guide ralls
C: rimless polyamide - rimless polyamide running wheels, quiet operation, and track-friendly
