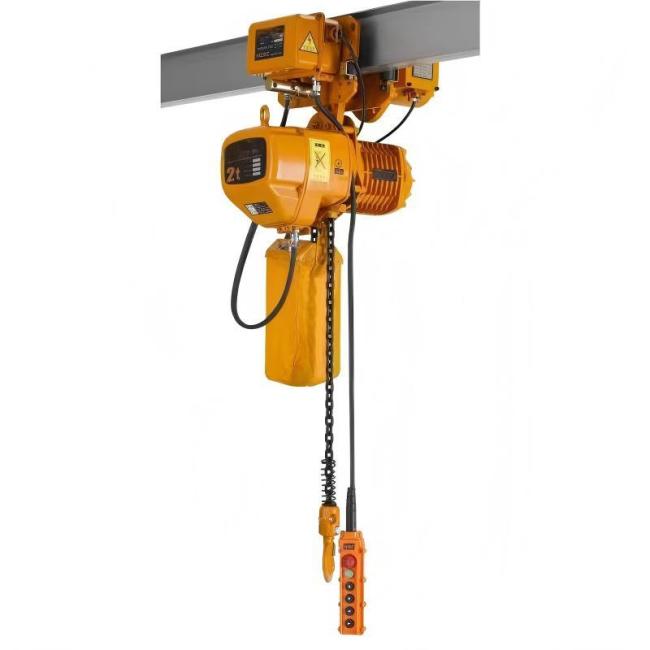

2T Load Capacity 380V Electric Chain Hoist Industrial Traveling Crane Lifting Machine
Price:
USD200-700
MOQ:
1
Delivery Time:
7 work days
Brand:
HG CRANE
Product Description
Running Type
Equipped with an electric trolley, it can move left and right on the I-beam.
The default operation covers 4 directions (up, down, left, right), and it can be expanded to 6 directions (up, down, left, right, forward, backward) when used with an overhead crane.

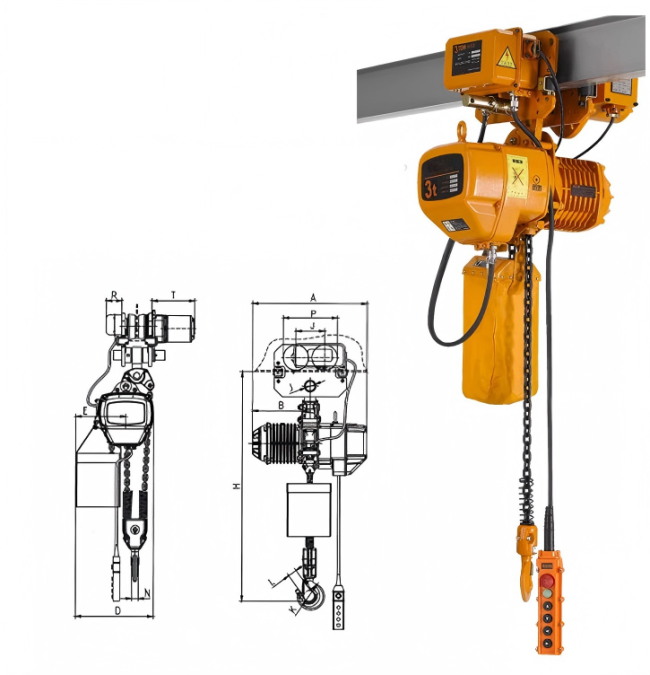

| Dimensions and Specifications | 0.5T-5T | ||||
| model | H | A | B | D | E |
| HHBB0.5-01S | 630 | 460 | 230 | 280 | 160 |
| HHBB01-01S | 650 | 520 | 260 | 300 | 176 |
| HHBB01-02S | 640 | 460 | 230 | 280 | 205 |
| HHBB02-01S | 770 | 620 | 310 | 430 | 265 |
| HHBB02-02S | 740 | 520 | 260 | 300 | 230 |
| HHBB03-01S | 840 | 620 | 310 | 430 | 265 |
| HHBB03-02S | 940 | 620 | 310 | 430 | 320 |
| HHBB03-03S | 920 | 520 | 260 | 350 | 280 |
| HHBB05-02S | 1015 | 620 | 310 | 430 | 325 |
| Specifications | 0.5T-5T | |||||||
| model | Lifting Capacity | Lifting Height | Lifting Speed | Hoist Motor | ||||
| Power | Speed | Phases | Voltage | Hz | ||||
| HHBB0.5-01S | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 380 | 50 |
| HHBB01-01S | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380 | 50 |
| HHBB01-02S | 1 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 380 | 50 |
| HHBB02-01S | 2 | 3/9 | 6.6 | 3.0 | 1440 | 3 | 380 | 50 |
| HHBB02-02S | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380 | 50 |
| HHBB03-01S | 3 | 3/9 | 5.6 | 3.0 | 1440 | 3 | 380 | 50 |
| HHBB03-02S | 3 | 3/9 | 3.3 | 3.0 | 1440 | 3 | 380 | 50 |
| HHBB03-03S | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 380 | 50 |
| HHBB05-02S | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 380 | 50 |
Details of the product
1.Durable motor, lowheat generation, noburnout
2.Chain protectioncover prevents falling
3.G8o high-strength chainis safe, reliable anddurable
4.Anti-falling hook 360o Rotatable
5.Four-way remote control,industrial splash-proof

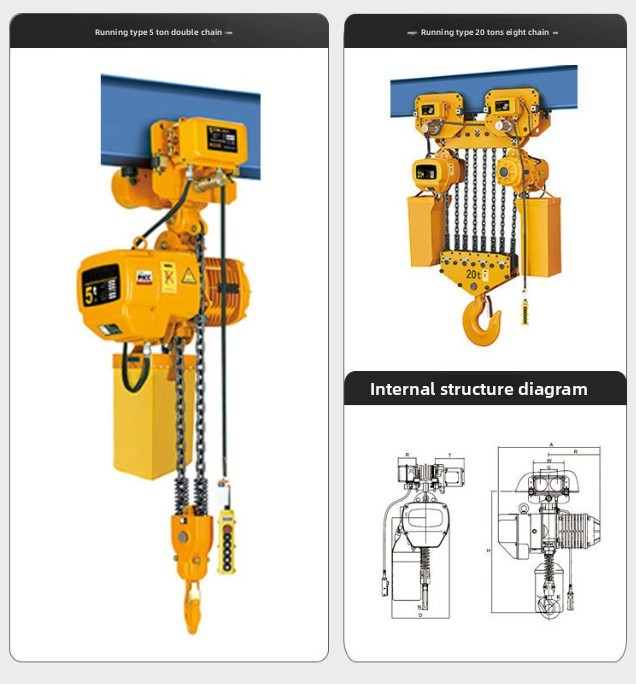

Running type 5 ton double chain
Running type 20 ton eight chain
Internal structure diagram
