Heavy Duty LD Crane Wheel Assembly for Overhead Crane with 20crmnti Steel and Precision Processing
Price:
USD30-250/Set
MOQ:
1
Delivery Time:
5-8Days
Brand:
HG CRANE
Product Description

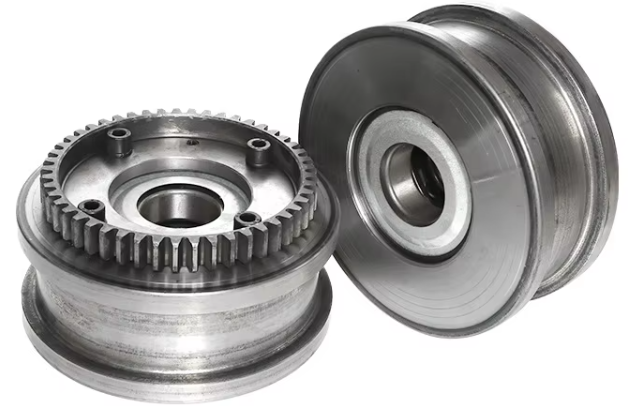

Crane ld wheel set
Precision processing ensures stable performance
 |
Driving wheel |
 |
Driven wheel |
 |
Axis |
 |
Ring gear |
 |
Bearing |

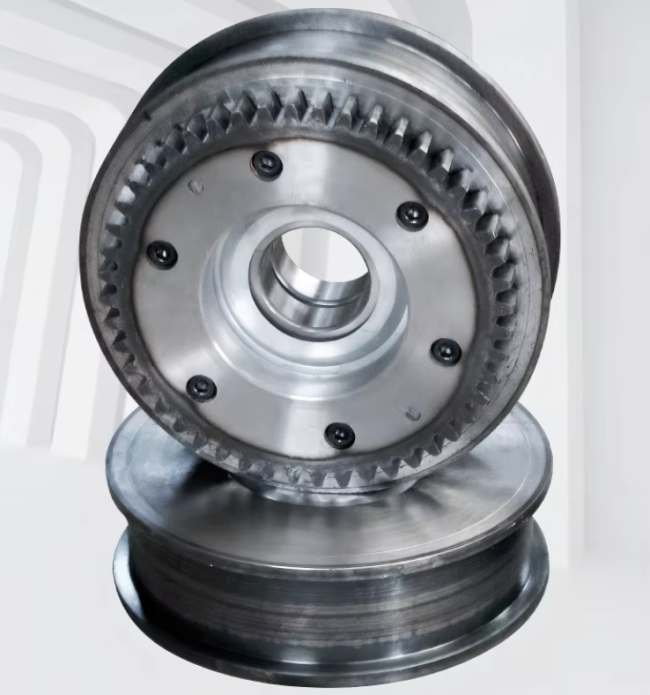

Precision gears aremore stable in use
Made with 20crmnti steel - a low-carbon alloy steel known for its highhardness and stable performance. it undergoes vacuum carburizing heattreatment, resulting in a uniform case depth

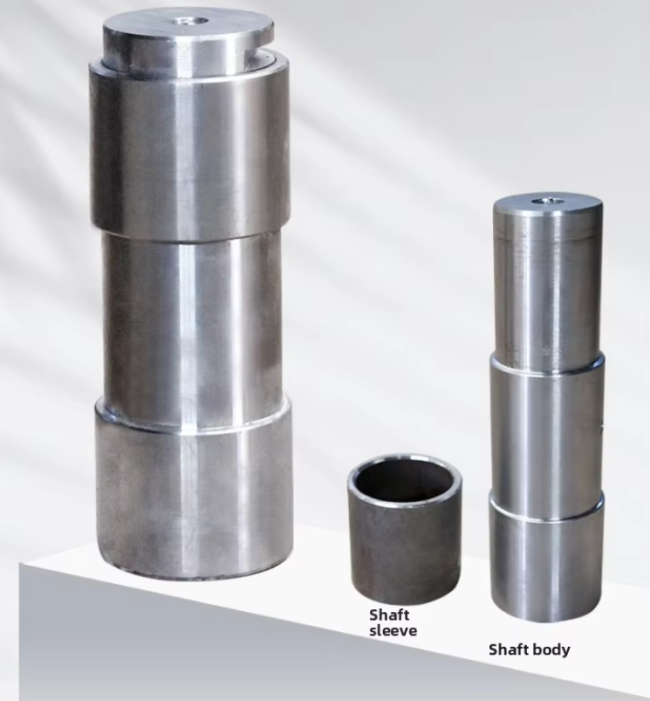

Steel throughshaft
Round steel is processed and manufactured by high-precisionmachine tools.
it is easy to install and has built-in oil injectionholes

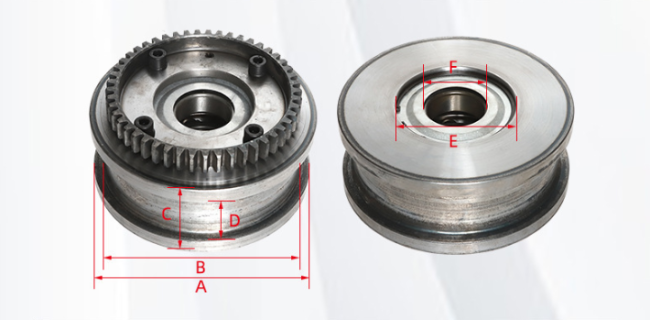

| size(mm) | ||||||
| Specifications | A Wheel Diameter |
B Tire Diameter |
C Total Thickness |
D Rim Groove |
E Inner Diameter |
F Bearing Inner Strike |
| LD150 | 150 | 128 | 140/160 | 110/130 | 85 | 45 |
| LD200 | 185 | 158 | 80 | 60 | 90 | 50 |
| LD300 | 295 | 265 | 116 | 70/90 | 150 | 70 |
| LD400 | 395 | 365 | 118 | 90 | 190 | 90 |

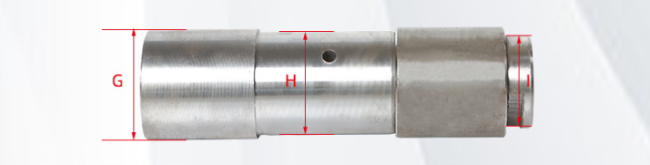

| size(mm) | ||||
| Specifications | G Major head diameter |
H Middle diameter |
I Small head diameter |
shaft length |
| LD150 | 48 | 45 | 40 | 220/240 |
| LD200 | 55 | 50 | 45 | 200 |
| LD300 | 75 | 70 | 65 | 263 |
| LD400 | 100 | 90 | 85 | 273 |
