Compact Structure End Carriage with Corrosion-Resistant Finish and Precision-Machined Wheel Treads for Overhead Crane

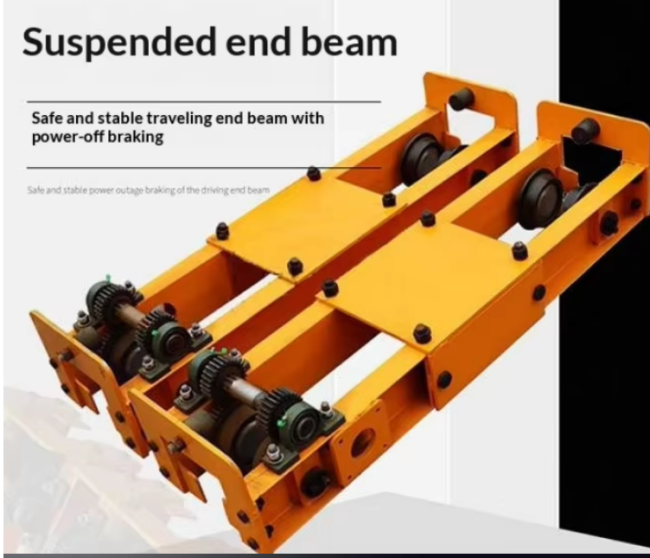

End Carriage for Suspended LX Single-Girder Overhead Crane – Running Components

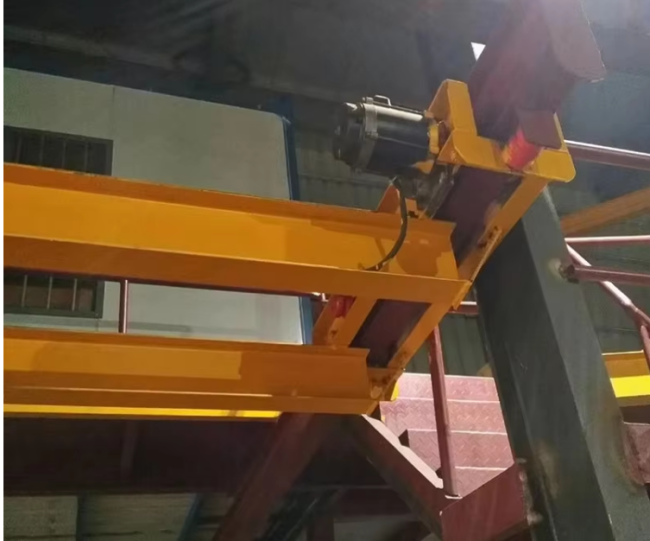

The end carriage is a key traveling component of the LX series suspended single-girder overhead crane. It is mounted at both ends of the main girder and supports the entire crane while traveling along the suspended runway I-beam.
Key Features:
Compact structure, suitable for low-headroom workshops
Smooth travel with low rolling resistance
High-strength steel plate, welded and stress-relieved
Precision-machined wheel treads for reduced wear and noise
Self-aligning bearings to compensate for minor rail misalignment
Adjustable wheel flanges to fit various I-beam widths
Corrosion-resistant finish (shot blasting + anti-rust paint)

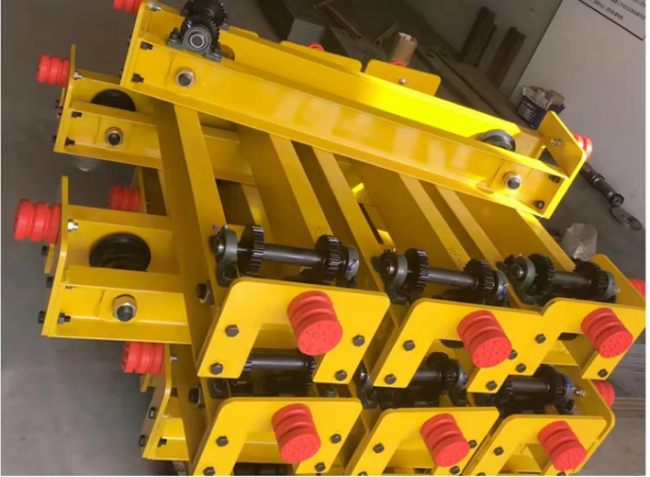

Optional accessories: travel limit switches, buffer stops, dust covers
Technical Specifications (Typical):
| Parameter | Value |
|---|---|
| Capacity | 0.5 t – 5 t |
| Wheel diameter | 80 – 160 mm |
| I-beam flange width | 75 – 125 mm |
| Travel speed | 10 – 20 m/min (fixed or VFD) |
| Travel motor power | 0.2 – 0.75 kW |
| Power supply | 380V / 400V / 415V, 50Hz, 3-phase |
| Duty class | A3 – A5 (FEM/ISO) |
Advantages:
Reliable and low-maintenance
Easy to install and align
Suitable for light to medium duty material handling
Can be customized for different runway beam sizes and travel speeds
