Premium Durable LD Crane Traveling Wheel Assembly for Industrial Overhead Crane

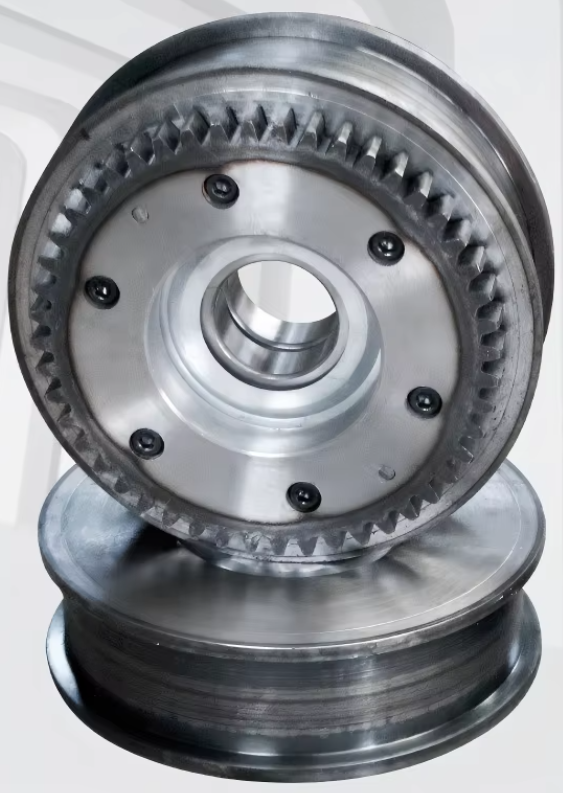

Crane ld wheel set
Precision processing ensures stable performance

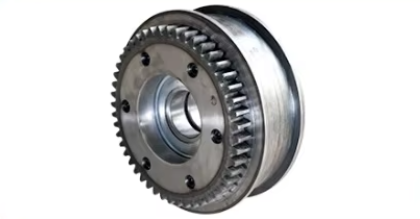

Driving wheel

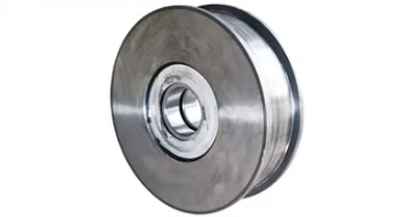

Driven wheel
Shaft

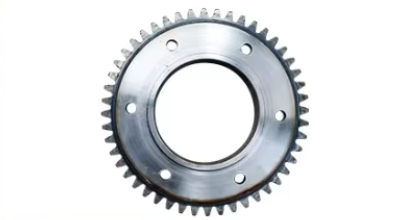

Ring gear

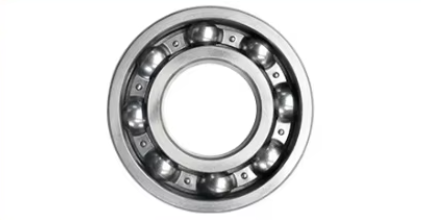

Bearing
Precision gears aremore stable in use
Made with 20crmnti steel - a low-carbon alloy steel known for its high hardness and stable performance.
it undergoes vacuum carburizing heattreatment, resulting in a uniform case depth

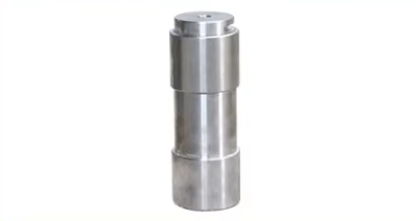

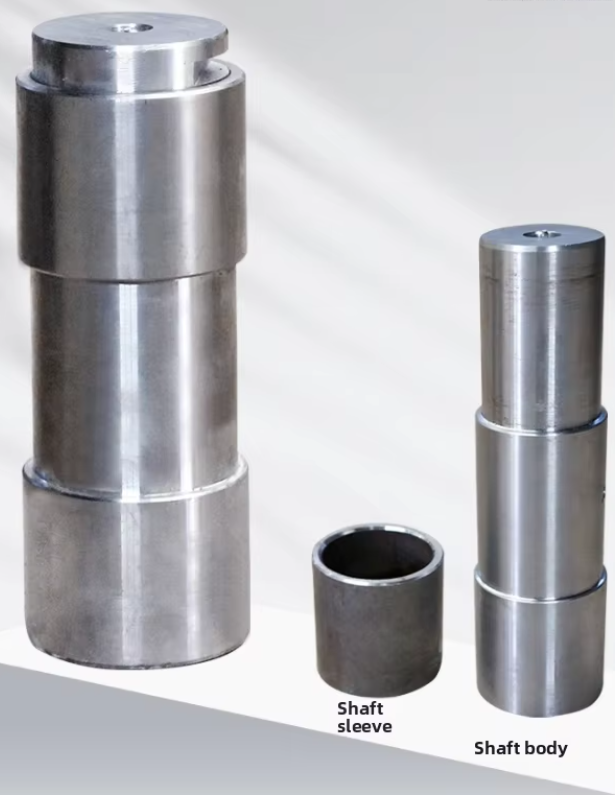

Steelthrough shaft
Round steel is processed and manufactured by high-precision machine tools.
it is easy to install and has built-in oil injection holes

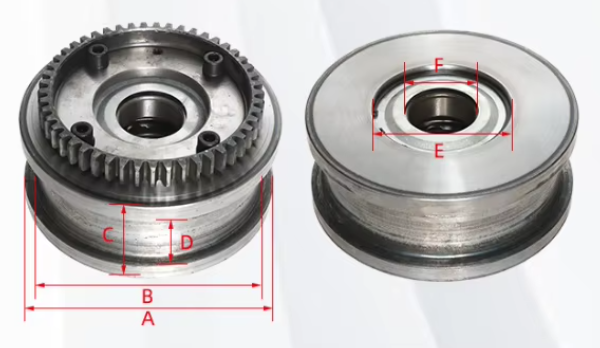

| Size(mm) | ||||||
| Specifications | A Wheel Diameter |
B Tire Diameter |
C Total Thickness |
D Rim Groove |
E Inner Diameter |
F Bearing Inner Strike |
| LD150 | 150 | 128 | 140 / 160 | 110 / 130 | 85 | 45 |
| LD200 | 185 | 158 | 80 | 60 | 90 | 50 |
| LD300 | 295 | 265 | 116 | 70 / 90 | 150 | 70 |
| LD400 | 395 | 365 | 118 | 90 | 190 | 90 |

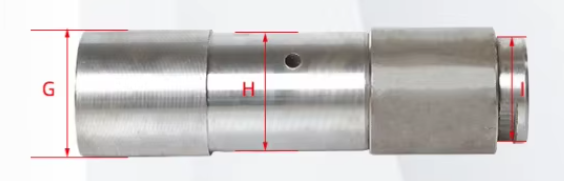

| Size(mm) | ||||
| Specifications | G Major head diameter |
H Middle diameter |
I Small head diameter |
shaft length |
| LD150 | 48 | 45 | 40 | 220 / 240 |
| LD200 | 55 | 50 | 45 | 200 |
| LD300 | 75 | 70 | 65 | 263 |
| LD400 | 100 | 90 | 85 | 273 |

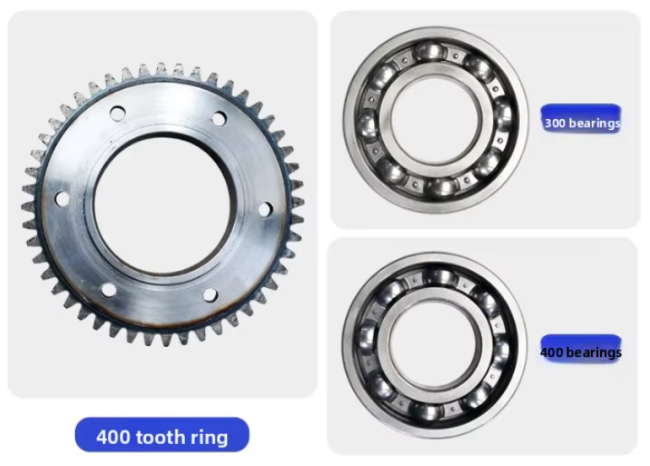

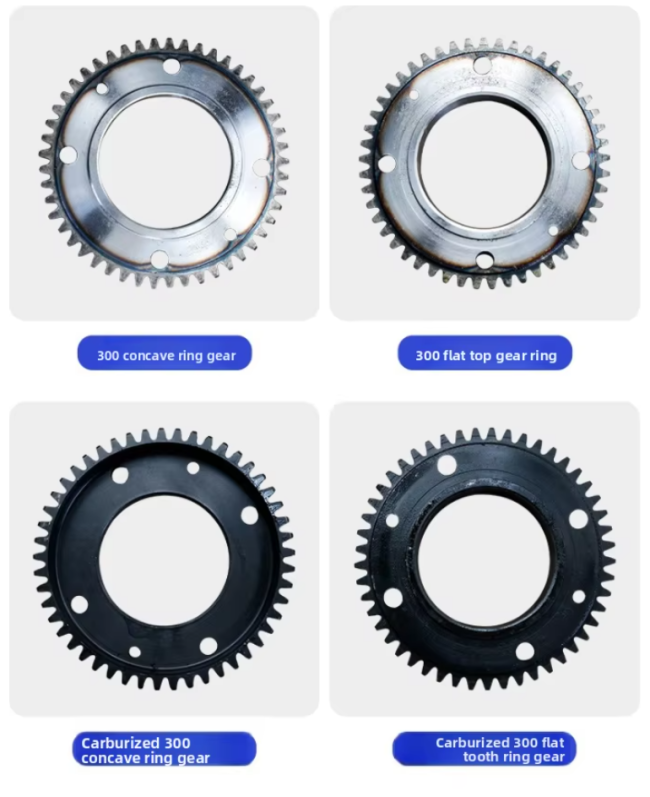

Ld driving wheel accessories display
