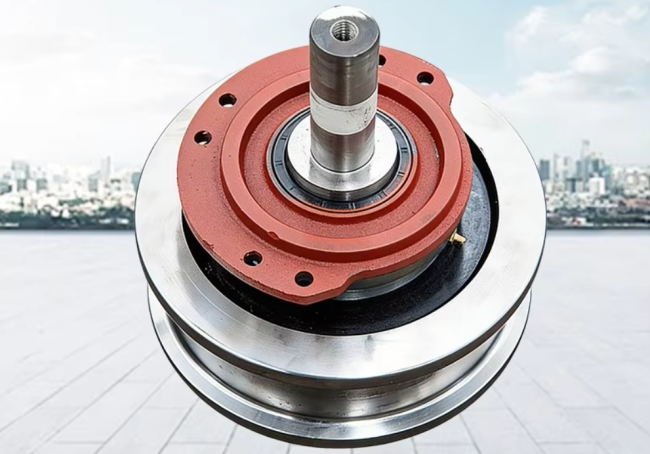

High Strength Cylindrical Crane Wheel Set, Quenched & Wear-Resistant, for Single/Double Girder & Container Cranes
Price:
USD299-999
MOQ:
1
Delivery Time:
15 work days
Brand:
HG CRANE
Product Description
wheel set
Support customization/stable supply/price discounts
Product details display
Every detail is strictly controlled, making it easier to use

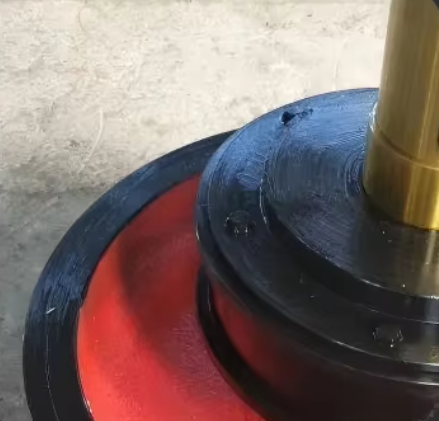

1.Precision machining
High strength, strong load-bearingcapacity,
strong pressure resistance,precision machining

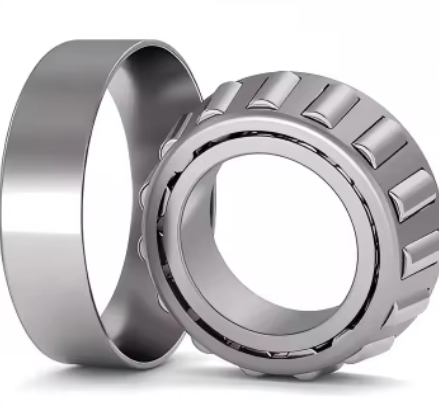

2.High quality bearings
High precision, high efficiency,and long lifespan. flexiblerotation. utilizes premium,
high-quality bearings to ensurethe core quality of transmission

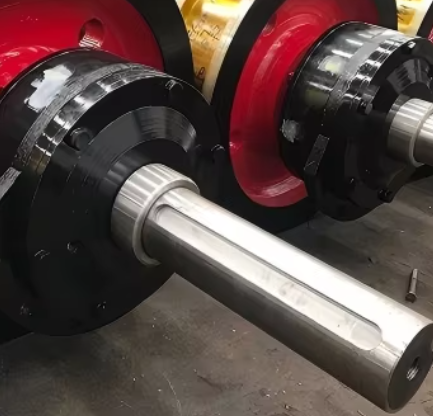

3.Integrated linkage shaft
One-piece molding, robustand durable. splined'shaft/plain shaft

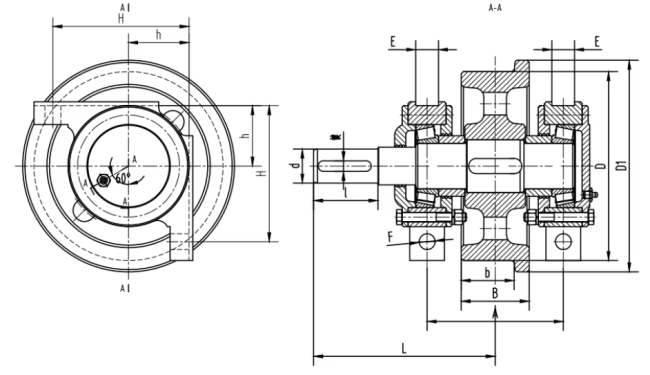

| Crane Wheel Assembly Parameters | ||||||||||||||
| Drawing No. |
D Tread Diameter |
D1 Wheel Outer Diameter |
B Wheel Thickness |
b Wheel Groove |
H | h | A Angle Box Groove Center Distance |
L Wheel Center to Shaft End |
E Angle Box Groove Width |
F Angle Box Foot Hole |
d Shaft End Diameter |
l Shaft End Length |
Shaft Key |
Bearing |
| L762 | ∅500 | ∅540 | 130 | 110 | 300 | 140 | 270 | 365 | 50 | 21 | 80 | 130 | 22 | 7524 |
| L758 | ∅400 | ∅440 | 120 | 100 | 260 | 120 | 240 | 365 | 50 | 21 | 80 | 130 | 22 | 7520 |
| L756 | ∅380 | ∅350 | 100 | 81 | 225 | 105 | 200 | 320 | 50 | 21 | 65 | 105 | 18 | 7518 |
| L754 | ∅280 | ∅250 | 80 | 70 | 180 | 80 | 180 | 240 | 30 | 21 | 45 | 85 | 14 | 7512 |
