Heavy Duty Crane Wheel Assembly with Angle Box Housing for Double Girder Overhead & Gantry Cranes

Name: Heavy Duty Crane Wheel Assembly with Angle Box Housing for Double Girder Overhead & Gantry Cranes
Brand: Henan Huagong Industrial Group Co., Ltd.

Price Negotiable

Price: USD99

MOQ: 1

Delivery Time: 15 work days

Brand: HG CRANE

Product Description

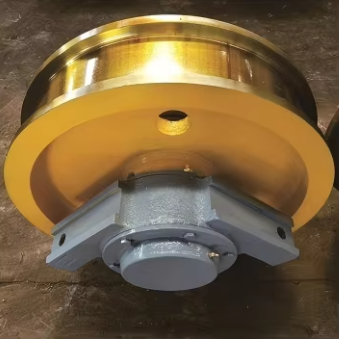

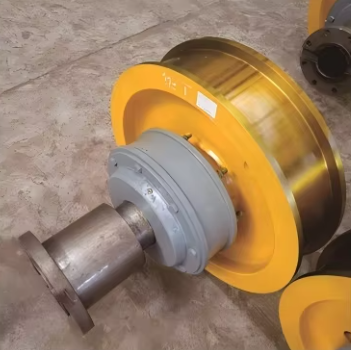

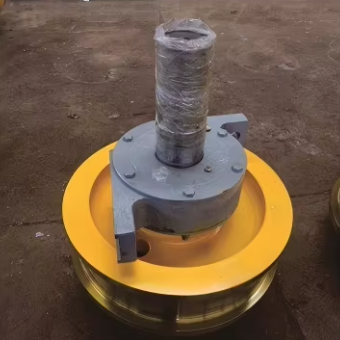

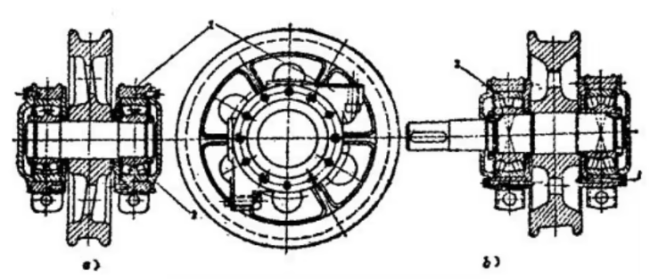

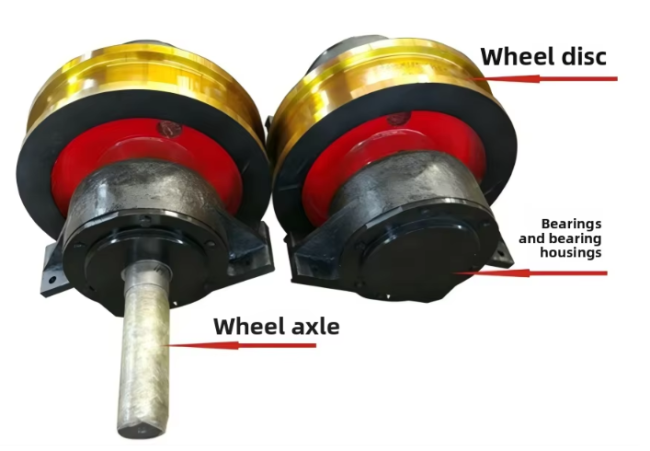

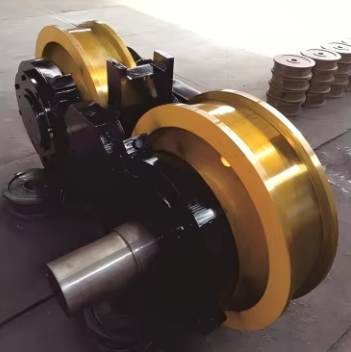

Corner box wheel set

wheel set installed on the rotating

shaft a driven wheel set b driving wheel set

Feature 1
We manufacture our own wheel blanks,casting them to exacting standard drawings.

we maintain strict tolerances forweb thickness and fillet radii (r-angles).

Feature 2
All wheel flanges undergo secondary aesneicat processing

to ensure a smooth and aesthetically pleasing finish.

Feature 3
The wheels and wheel axles are all integrally quenched

and tempered,ensuring a hardness of 330-380 hrc.

Feature 4
After the wheel axle is processed, it is

processed again using a grinding machine.

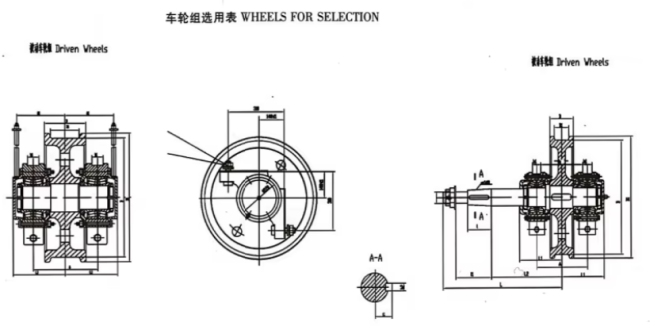

No.	Item Name	Drg. No.	D(h9)	D1	B	B1	A	h	h1(h11)	b1(H9)	d(s₆)	l	d4	L	L1	G	b2	Weight
1	Drive Wheels (∅250)	L754	250	280	90	70	180	180	80	30	45	82	M20	237	130	485	14	45
2	Driven Wheels (∅250)	L755	250	280	90	70	180	180	80	30	-	-	M20	-	130	-	-	42
3	Drive Wheels (∅350)	L756	350	380	100	81	200	225	105	50	65	105	M20	320	150	69	18	112
4	Driven Wheels (∅350)	L757	350	380	100	81	200	225	105	50	-	-	M20	-	150	-	-	105
5	Drive Wheels (∅400)	L758	400	440	120	100	240	260	120	50	80	130	M20	365	170	85	22	155
6	Driven Wheels (∅400)	L759	400	440	120	100	240	260	120	50	-	-	M20	-	170	-	-	148
7	Drive Wheels (∅500)	L762	500	540	130	110	270	300	140	50	80	130	M20	365	195	85	22	250
8	Driven Wheels (∅500)	L763	500	540	130	110	270	300	140	50	-	-	M20	-	195	-	-	245
9	Drive Wheels (∅315)	L774	315	345	100	81	200	225	105	50	65	105	M20	320	150	69	18	112
10	Driven Wheels (∅315)	L775	315	345	100	81	200	225	105	50	-	-	M20	-	150	-	-	105

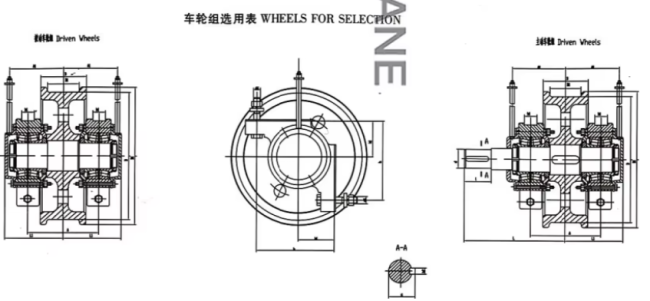

No.	Item	Drg. No.	D(h9)	D1	A	A1	h	h1	b	b1	d(s₆)	l	d4	L	L1	G	b2	Weight
1	Drive Wheels ∅500	L764	500	540	280	213.5	310	140	230	50	75	105	M24	400	230	79.5	20	284
2	Driven Wheels ∅500	L765	500	540	280	213.5	310	140	230	50	-	-	M24	-	230	-	-	277
3	Drive Wheels ∅600	L766	600	640	280	213	310	140	230	50	85	130	M24	415	230	90	22	332
4	Driven Wheels ∅600	L767	600	640	280	213	310	140	230	50	-	-	M24	415	230	-	-	322
5	Drive Wheels ∅700	L768	700	750	315	240	350	160	235	80	90	130	M30	455	260	95	25	508
6	Driven Wheels ∅700	L769	700	750	315	240	350	160	235	80	-	-	M30	-	260	-	-	495
7	Drive Wheels ∅800	L770	800	850	365	280	410	190	275	90	95	130	M30	500	300	100	25	756
8	Driven Wheels ∅800	L771	800	850	365	280	410	190	275	90	-	-	M30	-	300	-	-	743

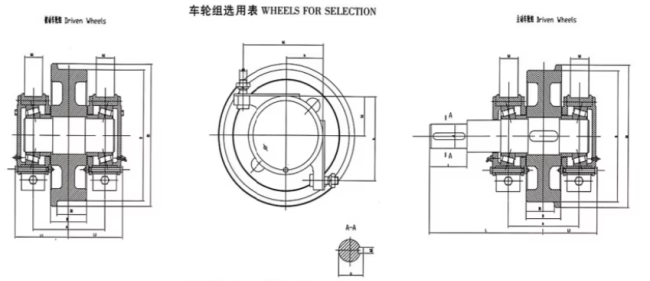

No.	Item	Drg. No.	D	D1	B	B1	A	A1	h	h1	b	b1	M	d4	L	L1	L2	l	l1	G	b2	Weight
1	Drive Wheels ∅600	L783	600	640	150	100	280	-	310	140	230	50	60×3	24	655	240	390	130	195	46.7	22	339.6
2	Driven Wheels ∅600	L813	600	640	150	100	280	-	310	140	230	50	-	24	-	240	-	-	-	-	-	316
3	Drive Wheels ∅700	L784	700	750	150 / 160	100 / 110	315	-	350	160	235	80	76×3	30	725	270	340	165	320	50.9	25	554
4	Driven Wheels ∅700	L814	700	750	190 / 200	130 / 150	315	-	350	160	235	80	-	30	-	270	-	-	-	-	-	533
5	Drive Wheels ∅800	L785	800	850	150 / 160	100 / 110	365	-	410	190	275	90	80×3	30	872	310	425	165	380	61.9	28	833
6	Driven Wheels ∅800	L815	800	850	190 / 210	130 / 150	365	-	410	190	275	90	-	30	-	310	-	-	-	-	-	745

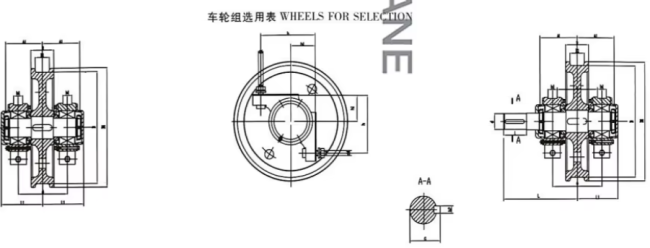

No.	Item	Drg. No.	D	D1	B	B1	A	A1	h	h1	b	b1	d(s₆)	d4	L	L1	l	G	b2	Weight
1	Drive Wheels ∅600	L172G	600	650	140 / 150	90 / 100	280	211	335	155	230	50	95	24	450	226	130	100	25	399
2	Driven Wheels ∅600	L173G	600	650	160 / 180	110 / 130	280	211	335	155	230	50	-	24	-	260	-	-	-	369
3	Drive Wheels ∅600	L174G	600	650	140 / 150	90 / 100	325	240	390	180	255	70	95	24	470	255	130	100	25	506
4	Driven Wheels ∅600	L175	600	650	160 / 180	110 / 130	325	240	390	180	255	70	-	24	-	255	-	-	-	486
5	Drive Wheels ∅700	L176G	700	750	200 / 150	150 / 100	360	265	440	200	280	80	110	30	500	280	165	116	28	754
6	Driven Wheels ∅700	L177G	700	750	160 / 180	110 / 130	360	256	440	200	280	80	-	30	-	280	-	-	-	680
7	Drive Wheels ∅700	L178G	700	750	150 / 160 / 180	100 / 110 / 130	380	285	485	220	300	80	110	30	500	305	165	116	28	849
8	Driven Wheels ∅700	L179G	700	500	180 / 200	130 / 150	380	285	485	220	300	80	-	30	-	305	-	-	-	849
9	Drive Wheels ∅800	L196G	800	850	150 / 160 / 180	100 / 100 / 130	380	285	485	220	300	80	120	30	520	305	165	127	32	969
10	Driven Wheels ∅800	L197	800	850	180 / 200	130 / 150	380	285	485	220	300	80	-	30	-	305	-	-	-	925
