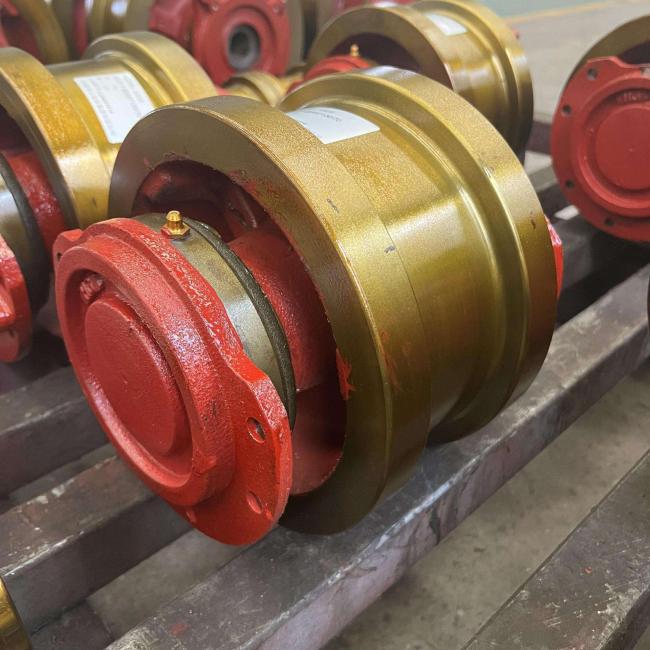

European Type Crane Wheel Assembly, Flange Mounted, for European Standard Overhead Cranes
Single-sided wheel/double-sided wheel
The driving angle box wheel is a key component in the crane running mechanism.
it's primarily used to support the crane and its load, and to enable reciprocatingtravel along the rails.
Single wheel
Suitable for small vehicle operation, with good directional control
Bilateral wheel
It is used for large vehicle operationor scenarios that require highstability, with better directionality.
Product details display
Every detail is strictly controlled, making it easier to use
Beautiful appearance
The surface is flat and smooth, and the paint is evenly sprayed.
it is beautiful and practical, and not easy to rust
Stable operation
Stable performance, simple structure,easy to operate and use,
and can be used in different environments
Various models
Can be selected and used according to needs for a variety of fields

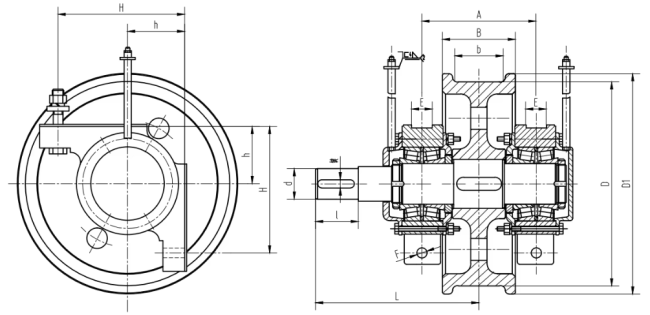

| Drawing No. |
D (Tread Diameter) |
D1 (Wheel Outer) |
B (Wheel Thickness) |
b (Wheel Groove) |
H | h | A (Angle Box Groove Center) |
L (Wheel Center to Shaft End) |
E (Angle Box Groove Width) |
F (Angle Box Foot Hole) |
d (Shaft End Diameter) |
l (Shaft End Length) |
Shaft Key | Bearing |
| L196 | ∅800 | ∅850 | B | b | 485 | 220 | 380 | 520 | 80 | 32 | 120 | 165 | 32 | 3634 |
| L178 | ∅700 | ∅750 | B | b | 485 | 220 | 380 | 500 | 80 | 32 | 110 | 165 | 28 | 3634 |
| L176 | ∅700 | ∅750 | B | b | 440 | 200 | 360 | 500 | 80 | 33 | 110 | 165 | 28 | 3630 |
| L174 | ∅600 | ∅650 | B | b | 390 | 180 | 325 | 470 | 70 | 26 | 95 | 130 | 25 | 3626 |
| L762 | ∅800 | ∅850 | B | b | 410 | 190 | 365 | 500 | 90 | 33 | 95 | 130 | 25 | 7530 |
| L768 | ∅700 | ∅750 | B | b | 350 | 160 | 315 | 455 | 80 | 33 | 90 | 130 | 25 | 7524 |
| L766 | ∅600 | ∅640 | B | b | 310 | 140 | 280 | 415 | 50 | 25 | 85 | 130 | 22 | 7520 |
| L764 | ∅500 | ∅540 | B | b | 310 | 140 | 280 | 400 | 50 | 25 | 75 | 105 | 20 | 7520 |
