European Type Factory Direct Selling Lifting Industry Crane Hook European Engine Electric Hoist Hook Crane Hook Dimensions

Name: European Type Factory Direct Selling Lifting Industry Crane Hook European Engine Electric Hoist Hook Crane Hook Dimensions
Brand: Henan Huagong Industrial Group Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

Products Description

Crane hooks are the very key part in any lifting machines which almost bear all the weight of loads. Any problem of it will give rise to fatal accidents. Generally speaking, the standard crane hooks assembly has a standard processing technology.
In HGocranes, crane hooks production is strictly according to the technology requirements, quality material, proper forging,machining and heat treatment.Our advantage is stable quality.

Crane lifting hook is a common device for grabbing and lifting loads used by a hoist or crane. The lifting hook is usually equipped with safety latch to ensure the wire rope sling, chain or rope in the proper place of hook and ensure the safety. With one or more built-in pulleys, the crane hook group can amplify the lifting force.

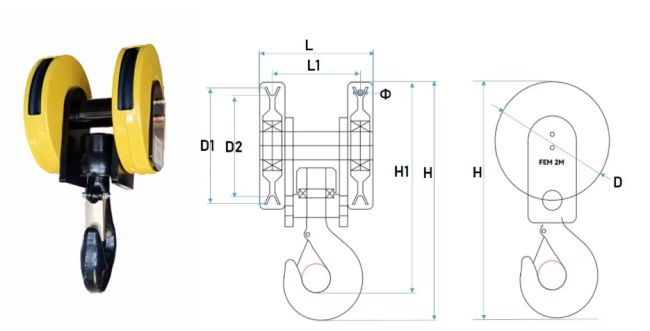

Lifting Capacity	Total Height (mm)	Effective Height (mm)	Total Width (mm)	Wheel Width L1 (mm)	PulleyDia. D1 (mm)	Well Inner Radius D2 (mm)	Groove Dia. φ (mm)	Hook Shell Dia. D (mm)	Total Weight (kg)
3.2t	394	345	200	140	168	134	6月8日	165	23
5t	462	400	230	167	195	162	8	204	31
10t	530	470	287	202	245	214	11	263	55
16t	700	620	340	232	355	298	15	370	100
20t	760	670	340	265	355	298	15	370	133

Ⅰ.pull board widened thickened, made of high quality steel, safe, reliable and durable.

Ⅱ.cover rounded, fine workmanship, beautiful appearance.

Ⅲ.high-thrust bearing assembly, use light and flexible.

Ⅳ. hook, beams made from the nut are forging. Ensure high strength of the product.

Ⅴ.using precision cast steel wheel, which can protect the wire rope can increase service life.

Designed for electric hoists
European-style

Item	Content
Name	European-style electric hoist hook
Specifications	3.2T-20T
Style	Single-wheel hook｜Double-wheel hook
Advantages	Precise structure, attractive appearance, stable overall performance, durable
Scope	Suitable for lifting, machinery, warehouse, port, automotive, and other occasions

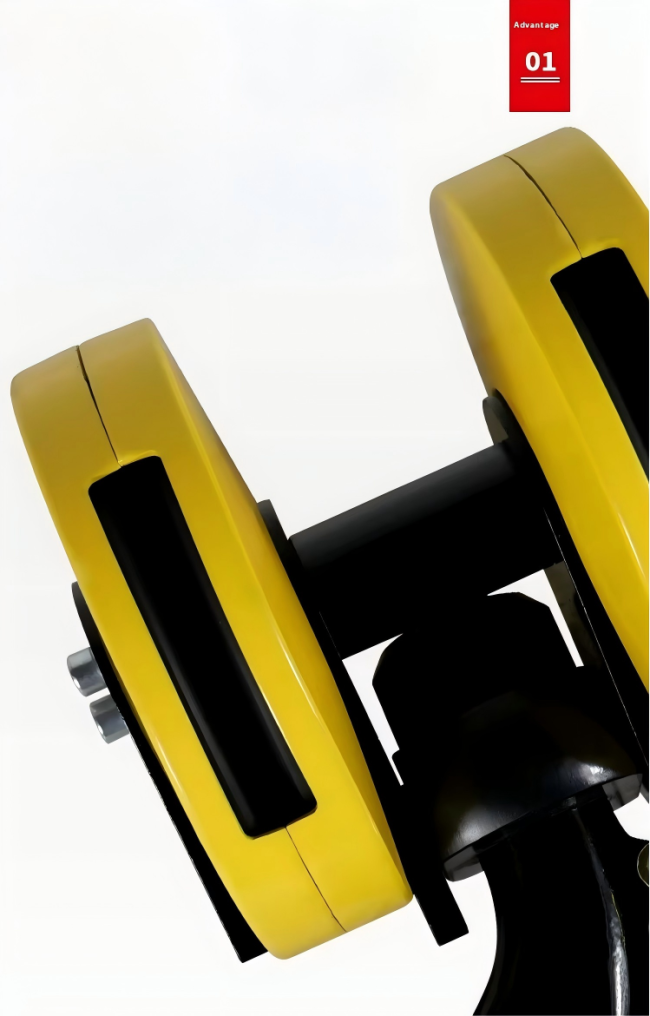

Thickened material hook shell Rust-proof and wear-resistant

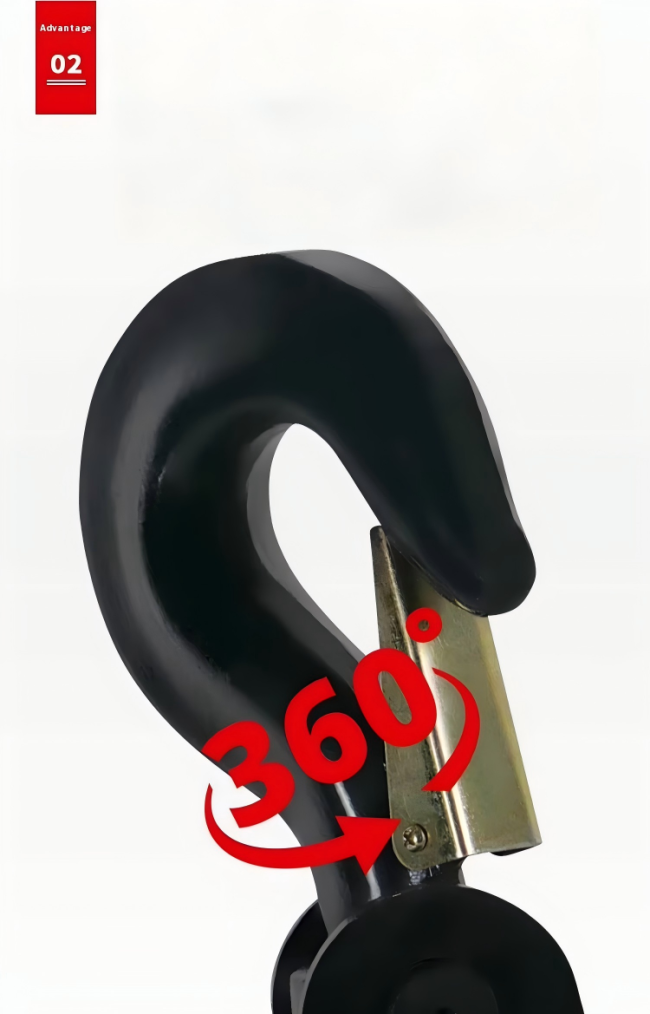

360°Rotatable Hook Head Rotate freely with strong load-bearing capacity

Safety self-locking device Anti-Hair Loss Insurance Card

The pulley rolls smoothly High-strength pressure bearing
