Single Auger TMR Mixer Machine With Double Weight Chassis High Durability
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UHAND
Product Description
16 m³ Single-Auger Vertical Trailed TMR Mixer, Pro Series
Engineered for large-scale feeding operations, the UHAND Pro-16 delivers a 16 m³ capacity with a focus on strength and reliability. Its heavy-gauge NM400 steel construction and powerful single-auger design are built to withstand continuous use. It requires greater tractor power (≥140 hp), positioning it as a core asset for ranches focused on efficiency and throughput for large herds.
Product Information
Place of Origin:
China, Shandong, Qingdao
Brand:
UHAND
Model:
Pro-16
Min. Order:
1 Unit
Delivery Time:
30-60 days
Payment Terms:
T/T
Key Features & Benefits
- Large-Batch Efficiency: Maximizes productivity by preparing 16 m³ of uniform TMR per batch, reducing total daily mixing cycles.
- Professional-Grade Durability: Robust NM400 steel fabrication and 20mm thick auger ensure long service life in high-demand environments.
- Optimized for High Power: Designed to harness the power of ≥140 hp tractors, ensuring consistent performance with dense ration formulations.
- Superior Traction & Load Capacity: Larger 8.25R16×4 tires provide enhanced ground clearance, load-bearing capacity, and traction.

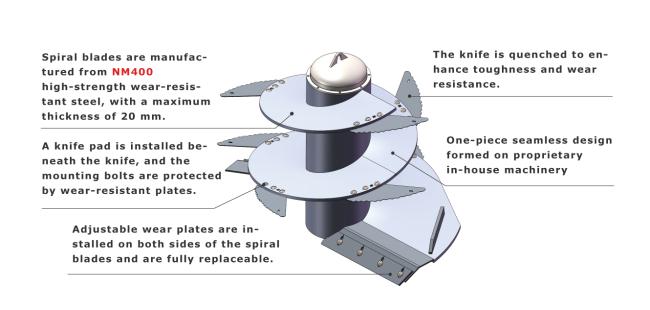

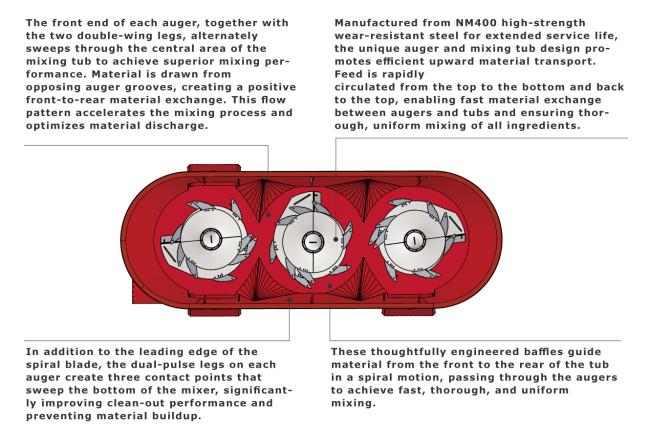

- Precision Mixing System: Heavy-duty auger with 11 carbide blades achieves thorough blend critical for herd health and performance.
- Built for Scale: Every aspect designed to meet the time and durability demands of feeding hundreds of cattle daily.
Technical Specifications
| Parameter | Pro-16 |
|---|---|
| Overall Dimensions (L x W x H) | 5000 x 3000 x 3250 mm |
| Machine Weight | 5500 kg |
| Volume | 16 m³ |
| Required PTO Power | ≥140 hp |
| Number of Augers | 1 |
| Auger Thickness | 20 mm |
| Auger Speed | 540/30 r/min |
| Number of Blades | 11 |
| Blade Material | 65Mn, Tungsten Carbide Coated |

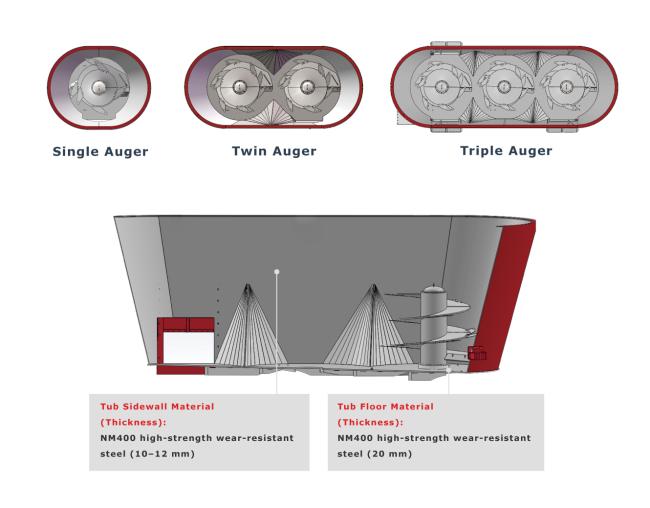

| Cylinder Bottom Plate Thickness | 20 mm |
| Cylinder Side Plate Thickness | 10 mm |
| Tire Specification & Quantity | 8.25R16 x 4 |
Application Scenarios
- Large commercial dairy farms or beef feedlots with significant daily feed requirements
- Operations where equipment uptime and batch size are critical to operational economics
- Ranches that have already invested in higher-horsepower (140+ hp) tractors
Frequently Asked Questions
What does "double-weight chassis" mean for me?
It means exceptional durability and stability. The reinforced frame resists twisting and fatigue, ensuring reliable performance and a much longer service life under heavy loads.
Why does it need ≥140 HP?
This ensures your tractor has enough power to efficiently drive the heavy-duty auger and fully mix dense 16 m³ batches, preventing overload and ensuring optimal performance.
Are the larger 8.25R16 tires important?
Yes. They offer a higher load capacity and better flotation on soft ground, perfectly matching the mixer's heavy-duty design and improving field mobility.
How does your paint process protect my investment?
Our shot blasting and 4-layer paint system create a durable barrier against rust and abrasion, significantly prolonging the equipment's life and appearance.
