Industrial Grade Tool Clamping Fixture Insert Type Ratchet Drive F Clamps For Welding

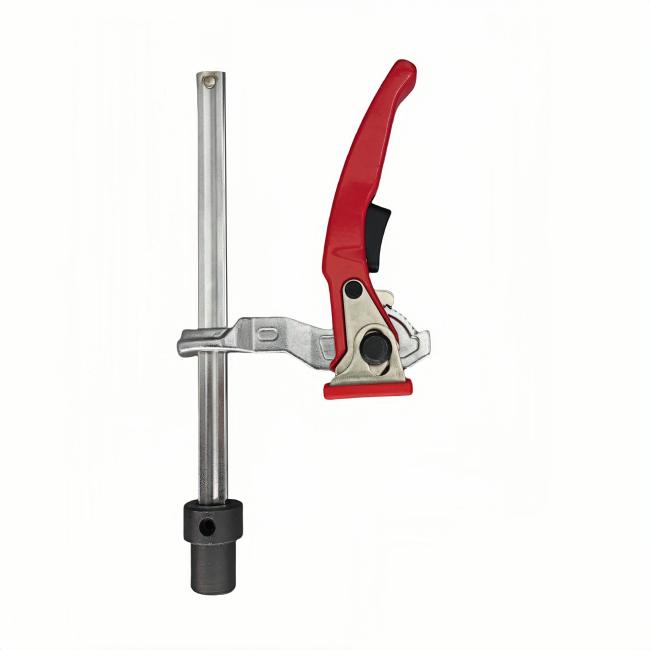

Industrial Grade Insert-Type Ratchet Drive F-Clamp Fixture Tool
| Parameter Category | Specifications Range | illustrate |
|---|---|---|
| Clamping width | 150-1200mm | Suitable for workpieces of different sizes, meeting the clamping needs for everything from small components to large structural parts. |
| Deep throat | 60-200mm | The deep throat design allows for clamping of thick plates, boxes, and other complex workpieces. |
| Clamping force | 300-1000kg | Industrial-grade, high clamping force ensures that workpieces remain in place during welding and assembly. |
| Material | Q455 alloy steel | It has high tensile strength, and after heat treatment, its hardness can reach HRC45-50, making it highly durable. |
| Positioning accuracy | ±0.05mm | The plug-in positioning system, combined with ratchet-based fine adjustment, meets the requirements for precision assembly and welding. |
| Applicable temperature | -20℃~120℃ | Suitable for high-temperature welding environments and outdoor work, with stable performance. |
Core Structure and Working Principle
Main Structure: Composed of high-strength alloy steel guide rails, fixed clamping arms, sliding insertable clamping heads, a ratchet handle, and a quick-release mechanism. The surface is treated with quenching and nitriding for rust prevention and wear resistance.
Insertable Positioning: The clamping head can slide quickly along the guide rail and be inserted into the positioning holes/T-slots of the workbench, achieving millimeter-level positioning and adapting to the modular assembly of tooling platforms such as 3D welding tables.
Ratchet Drive Mechanism: When the ratchet handle is pulled, the pawl drives the screw to advance the clamping head for quick clamping; pulling in the opposite direction or pressing the quick-release button quickly unlocks the clamp, significantly reducing clamping time.
Stable Clamping System: The clamping head is equipped with a rotating pressure block that conforms to irregular workpiece surfaces, evenly distributing the clamping force and preventing workpiece deformation or damage.
Core advantages
High-Efficiency Clamping: Insert-type positioning combined with a ratchet drive reduces clamping time by 60% compared to traditional screw clamps, ideal for mass production.
Stable and Reliable: Industrial-grade materials and structural design ensure consistent clamping force without degradation, capable of withstanding welding impacts and vibrations, guaranteeing processing accuracy.
Strong Adaptability: Compatible with 3D welding tables, tooling platforms, and assembly line workstations; can be used in combination with locating pins and fixture modules, adapting to multiple scenarios.
Convenient Operation: Single-hand operation with a quick-release button for one-touch unlocking, reducing labor intensity and improving work efficiency.
Applicable scenarios
Metal Welding: Used in conjunction with a 3D welding table, it secures steel plates, profiles, and other workpieces, ensuring no displacement during the welding process and improving weld seam accuracy.
Heavy-Duty Assembly: Used in the assembly of chassis and frames in the automotive and construction machinery industries, enabling precise positioning and fixing of multiple components.
Precision Manufacturing: Used for the assembly and positioning of molds and automation equipment parts, ensuring precise tolerance matching between components.
Mass Production: Used as a standardized fixture in production lines, enabling quick workpiece changeover and batch clamping, thereby improving production efficiency.
Key points for use and maintenance
Before use: Check that the chuck, ratchet, and positioning mechanism are working smoothly, and remove any debris from the guide rails and positioning holes to ensure accurate positioning.
During use: Adjust the chuck position according to the workpiece size, insert the workpiece into the positioning mechanism, and gradually apply clamping force, avoiding excessive clamping that could deform the workpiece.
Maintenance: Regularly apply anti-rust oil, clean the ratchet and screw to prevent jamming; store in a dry environment to avoid acid and alkali corrosion.
Selection and application recommendations
Select the clamping width and throat depth according to the workpiece dimensions; for welding thick plates, a deep throat depth is recommended.
When used with a 3D welding table, prioritize using insert-type clamps that match the T-slot size to ensure positioning accuracy.
For mass production, multiple sets of fixtures can be used to achieve simultaneous clamping at multiple workstations, improving production efficiency.
