System 16mm Metric Series Welding Tables and Fixturing Accessories

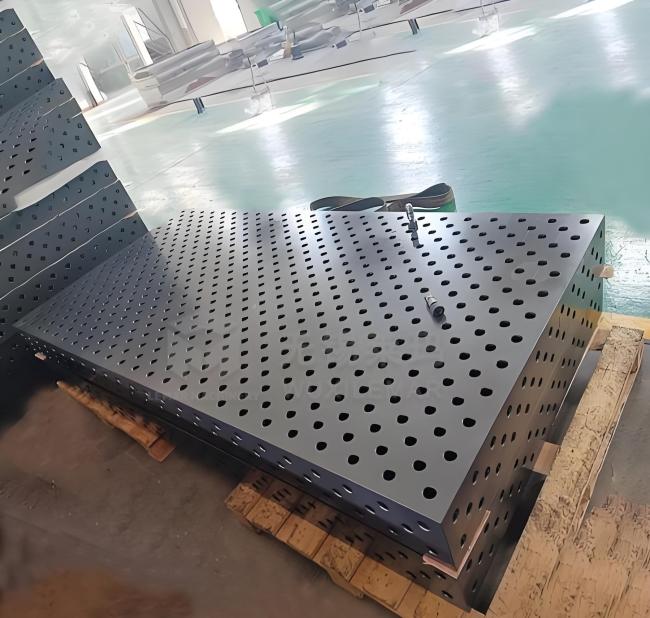

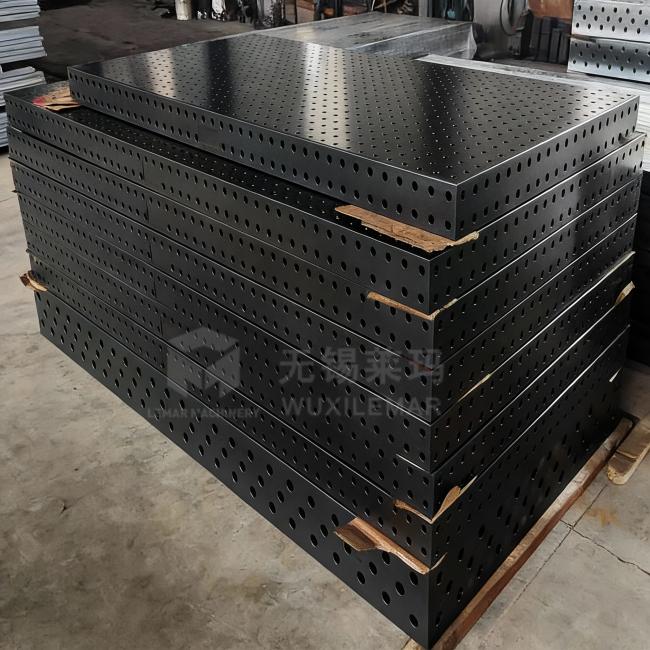

The core of the System 16mm Metric Series Welding Tables and Fixturing Accessories is a tabletop with 16mm diameter holes and a 50mm grid, along with matching fixturing accessories. It is suitable for precise positioning and small-to-medium batch, multi-variety production scenarios, balancing both precision and cost.
| Hole Specifications | 16mm hole diameter, 50mm grid spacing |
| Tabletop Structure | 12mm thick hardened steel plate, five-sided work surface |
| Material and Surface Treatment | Alloy structural steel, plasma nitriding treatment |
| Flatness Accuracy | ±0.0635mm/m |
| Rated Load | Approximately 3.86 tons with standard legs, approximately 0.67 tons with caster legs |
| Tabletop Dimensions | 800×1000mm / 1000×1500mm / 2000×4000mm, etc. |
| Height | 620mm |
Positioning and Support Class

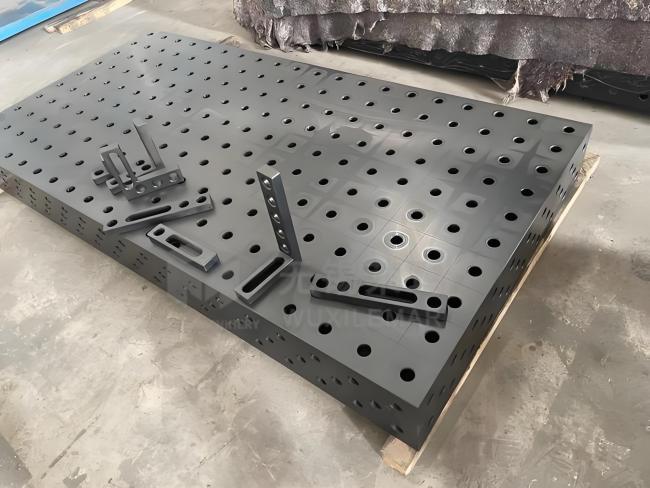

Positioning Blocks / Stoppers: 90° clamping plates, universal stoppers, V-blocks, etc., for achieving right-angle, angle, and circular positioning of workpieces.
Height Adjusting Blocks / Adapter Plates: Used for adjusting the height of the workpiece and adapting to different fixture interfaces. Made of nitrided steel / stainless steel.
Rotation / Angle Accessories: Rotation tables, angle gauges, adjustable supports, meeting the requirements for inclined / multi-angle welding.
Clamping and Fixation Class
Quick Clamping Bolts: Short / Long models, combined with locking mechanisms, enabling quick locking of accessories to the surface, installation time ≤ 30 seconds.
Spiral Clamps / Elbow Clamps: Professional / Basic levels, suitable for different clamping force requirements, some with anti-corrosion coatings.
Press Plates / Press Heads: Adapted to different workpiece shapes, ensuring no displacement during welding.
- Fully compatible modular design: 16mm holes + 50mm grid run through the entire series. Accessories are universal across models and batches, and the changeover time is ≤ 10 minutes.
- Five-sided workholding capability: Breaks through the limitation of the traditional countertop being only usable on the upper surface. The four sides + bottom surface can all be clamped, suitable for irregular workpieces.
- Balance of accuracy and lifespan: Nitriding surface combines wear resistance and rust prevention. A 12mm countertop + reinforced ribs design ensures long-term accuracy stability, with a normal working condition lifespan of ≥ 10 years.
- Cost adaptation: Compared to the 28mm heavy-duty system, the procurement and maintenance costs are lower, suitable for scenarios with budget constraints but high accuracy requirements.
Wide temperature range adaptability
The countertop and accessories have been professionally treated for temperature resistance, enabling stable use in extreme temperature environments ranging from -40℃ to 180℃. They can be suitable for outdoor welding operations in cold regions and also meet the continuous production requirements of high-temperature workshops, without causing deformation, cracking or rust layer detachment due to drastic temperature changes.
Corrosion resistance enhancement option
The standard model can meet the rust prevention requirements for general industrial environments; for special scenarios such as high salt spray and chemical corrosion in coastal areas, stainless steel countertops or double-layer nitriding + electrostatic painting treatment can be selected. The salt spray test tolerance time is increased to over 1000 hours, significantly extending the equipment's service life.
16mm precise positioning, 50mm flexible grid.
This modular welding station and its tooling accessories, with standardized design, break the constraints of traditional tooling, making precise welding and rapid model change more efficient.
From corrosion-resistant nitriding process to fully compatible accessory ecosystem, we delve into every detail, balancing precision and cost, and adapting to the lightweight and precise manufacturing needs of multiple industries.
Global service support, quality always guaranteed. We are willing to work with you, empowering manufacturing with flexible tooling, and creating more possibilities through welding!
