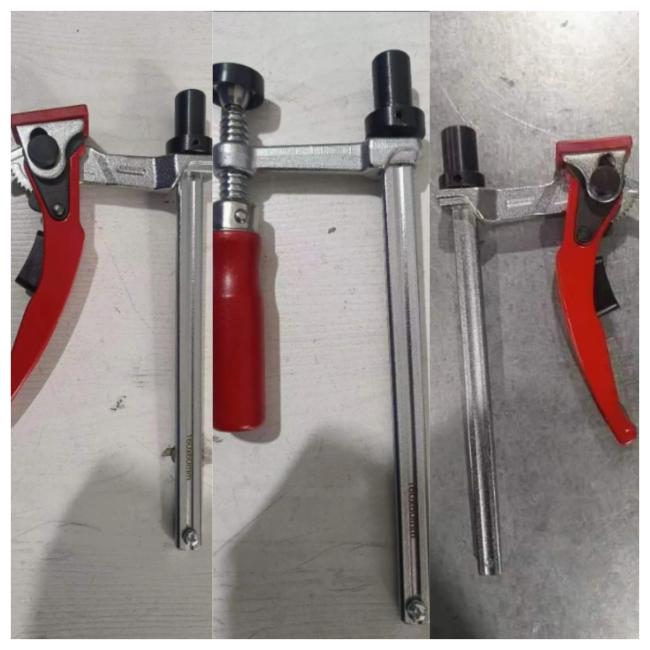

Insert Type Ratchet F Clamp for Metal Fabrication is a special insertion ratchet F-type clamp for metal processing. It is a core tooling fixture for welding, sheet metal, metal assembly and other processes. It is a high-frequency supporting accessory for the 3D Welding Table. Combining the convenience of plug-in installation, the efficiency of ratchet transmission and the clamping stability of F-shaped structure, it is specially designed for rapid clamping and precise fixation in metal processing scenarios, and suitable for welding, bending, splicing and other processes of various metal plates and profiles.

Insert Type Ratchet F Clamp for Metal Fabrication is a necessary tool for welding workshops, sheet metal processing plants, and machinery manufacturing plants. The core applicable scenarios are:

• Three-dimensional welding table supporting: As the core clamp accessory of the 3D Welding Table, it fixes the welding workpiece and is suitable for various welding processes such as manual welding, secondary welding, and argon arc welding;
• Metal plate processing: splicing, bending, and fixing of steel plates and aluminum plates before cutting to prevent workpiece displacement;
• Metal profile processing: assembly and welding of angle steel, channel steel, square tubes, and round tubes to ensure profile docking accuracy;
• Engineering machinery/auto parts manufacturing: welding and clamping of large metal structural parts, automobile frames/sheet metal parts to improve production efficiency;
• Precision metal processing: Precise clamping of small metal accessories and precision instrument sheet metal to ensure processing accuracy.

• Free accessories: For bulk orders (≥500 units), lubricating oil, wrenches, spare gears and other wearing parts will be provided free of charge (1:10 ratio according to order quantity);
• Technical support: Free installation videos and product manuals;
• Warranty service: 1-year warranty for standard models and 6-month warranty for customized models. New parts will be reissued free of charge for non-human damage during the warranty period, and the freight will be borne by the factory.

We have compiled the 3 types of faults that are most likely to occur when customers use the Insert Type Ratchet F Clamp for Metal Fabrication. A simple repair plan is attached. No professional tools are required. Customers can handle it by themselves to reduce after-sales communication costs:

• The ratchet is stuck and the pull is not smooth: the reason is that welding slag/oil enters the gear gap. The solution: use a brush to clean the impurities and apply a small amount of industrial lubricating oil (such as lithium-based grease) to the ratchet part;
• The clamp is slipping and the clamping is not tight: the reason is that the anti-slip teeth of the clamp are worn/there is oil on the surface of the workpiece. Solution: clean the oil on the surface of the workpiece. If the teeth are worn, replace the clamp accessories (the factory can sell them separately);

1. The pin is deformed and cannot be inserted into the grid hole: the reason is over-range clamping/forced insertion. Solution: Use a wrench to slightly correct the pin (light deformation). If the deformation is serious, replace the pin accessories.
