Oversized Fixture Clamp Jaw Ratchet Insert F Clamp For Wide Throat Capacity
Price:
1-100 USD
MOQ:
1
Delivery Time:
7-10 work days
Brand:
LEMAR
Product Description

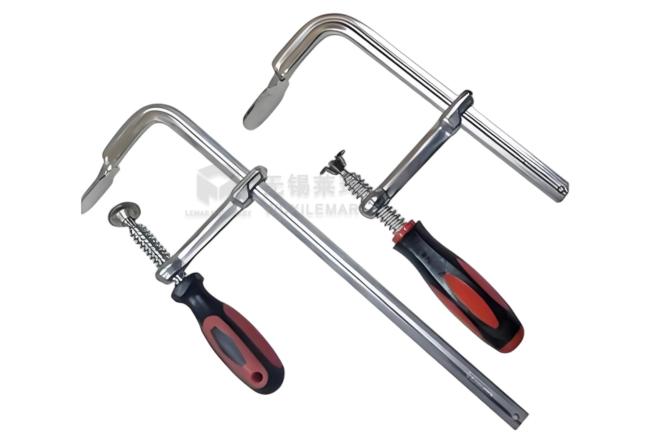

Oversized Jaw Ratchet Insert F Clamp for Wide Throat Capacity
The Oversized Jaw Ratchet Insert F Clamp with Wide Throat Capacity is a heavy-duty clamp specifically engineered for welding and positioning large, irregularly shaped, and thick-walled workpieces. Featuring an extra-large jaw opening and widened throat depth combined with a ratchet drive mechanism, this clamp enables quick clamping and precise positioning of large steel structures and heavy machinery components. It is compatible with standard grid hole systems on 3D welding tables and is widely used in heavy-duty welding applications.
Technical Specifications
| Specification | Available Sizes |
|---|---|
| Standard Throat Depth | 150mm, 200mm, 300mm, 450mm, 600mm |
| Maximum Throat Depth (with Expansion Joint) | 600mm, 900mm, 1200mm, 1500mm, 1800mm |
| Maximum Clamping Depth | 150mm, 200mm, 300mm |
| Maximum Clamping Force | 500 kgf, 1000 kgf, 1500 kgf, 2500 kgf+ |
| Main Materials | High-strength cast iron / Forged carbon steel |
| Screw Diameter | M12, M16, M20, M24 |
Key Design Features
Widened Jaw Design
The jaw width reaches 50-80mm (compared to 20-30mm on conventional models), significantly increasing the contact area with workpieces and preventing deformation of thick-walled workpieces due to concentrated clamping force. The jaw surface features anti-slip serrations and is hardened by quenching to HRC 55-60 hardness, providing exceptional wear resistance and preventing workpiece displacement during welding operations.
Wide Throat Depth Configuration
With throat depths reaching 150-300mm, this clamp easily accommodates workpieces with extra-large cross-sections and irregular contours, including large I-beams, box beam structures, and heavy machinery bases. This solves the common problem of insufficient throat depth in traditional F-clamps that prevents clamping of oversized workpieces.
Reinforced Ratchet Drive System
Heavy-Duty Ratchet Gear Set
Constructed from forged chromium-nickel alloy steel gears with high-frequency quenching treatment, this system withstands extra-large clamping forces of 15-25kN, increasing load capacity by 2-3 times compared to conventional ratchet F-clamps. The optimized 1:6 gear transmission ratio moves the clamping arm 4mm with each handle pull, improving clamping efficiency by more than 4 times compared to screw-type heavy-duty clamps.
Labor-Saving Lever Handle
The extended 220mm handle utilizes lever principles, allowing a single operator to easily drive the heavy-duty clamping arm without auxiliary tools. The handle end features a non-slip rubber grip designed to conform to palm curvature, reducing operator fatigue during extended use.
Embedded Precision Positioning
Reinforced Embedded Base
The base employs an integrated forging process compatible with 16mm/28mm standard welding table grid holes. The built-in double positioning pin structure ensures repetitive positioning accuracy of ≤0.1mm, guaranteeing dimensional consistency when multiple clamps are used for collaborative positioning.
Flush Mounting with Tabletop
After installation, the clamp body sits flush with the welding table surface, eliminating interference with operating space. This design facilitates all-around welding access and prevents welding spatter accumulation in clamp gaps.
Core Application Industries
- Steel Structure Manufacturing: Welding and positioning of factory building frames, bridge box girders, and steel columns
- Construction Machinery: Welding and assembly of excavator chassis, crane booms, and loader frames
- Container Manufacturing: Splicing and welding of container side panels and top panels
- Pressure Vessels: Welding and processing of thick-walled vessels including storage tanks and reactors
Customer Benefits
- Improved Production Efficiency: Ratchet drive mechanism provides four times faster clamping speed compared to traditional screw clamps
- Guaranteed Welding Accuracy: Dual positioning pin design and ≤0.1mm repetitive positioning accuracy ensure dimensional consistency
- Adaptable to Complex Scenarios: Wide throat depth and large jaw design accommodate irregularly shaped and oversized workpieces
- Extended Service Life: Dual anti-rust treatment and high-strength alloy materials ensure durability in harsh workshop environments
