3D Welding Table with D16 Holes for Quick Fixture Setup

The 3D Welding Table with D16 Holes for Quick Fixture Setup is a high-precision, modular, and quick-clamping three-dimensional welding fixture platform designed specifically for small/precision workpieces. Featuring a standard D16 (16mm diameter) hole system (50mm × 50mm grid), its core advantages lie in quick clamping, high positioning accuracy, and flexible adaptability. It is a key piece of equipment for achieving efficient and precise welding and assembly in fields such as sheet metal, precision structural components, and small mechanical parts.

Rapid clamping core mechanism

• Standardized locating pins: Φ16mm precision locating pins, one-click insertion and removal, completing datum positioning within 10 seconds.
• Quick clamping system: Standard equipped with lever-type/eccentric quick clamps, no tools required, workpiece clamping/unclamping can be completed with one hand, increasing clamping efficiency by 80%+.

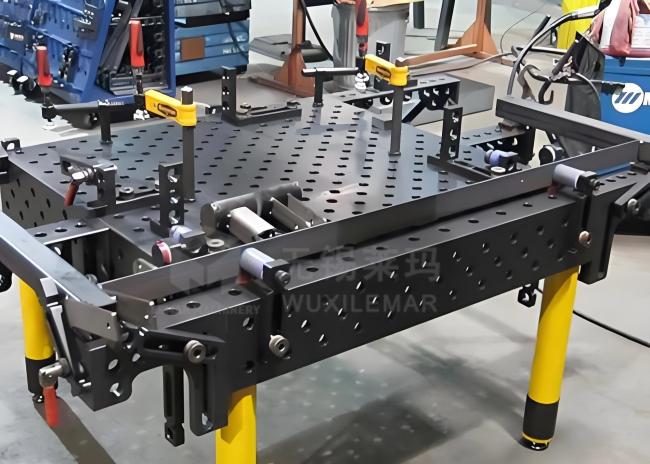

• Modular combination: Standard accessories such as angle rulers, V-blocks, support feet, and angle adjustment blocks are plug-and-play, allowing for the assembly of complex fixtures within 5 minutes.
• Threadless through-hole design: No threads inside the holes, preventing blockage and facilitating cleaning, suitable for welding splatter environments, resulting in low maintenance costs.

Core functions

• 3D Precise Positioning: Fast positioning along the X/Y/Z axes, with a repeat positioning accuracy of ±0.03mm, eliminating welding deformation and dimensional deviations.
• Fast and Flexible Clamping: Suitable for plates, profiles, tubes, and small precision parts; tooling changeover completed within 5 minutes, improving changeover efficiency by 90%.
• Multi-Scenario Adaptability: Fixed/mobile (with casters)/lifting base options available, suitable for workshop production, on-site assembly, equipment maintenance, sample prototyping, and other scenarios.
• Universal Standardization: The entire series of D16 standard fixtures are universally compatible worldwide and highly interchangeable, reducing procurement and inventory costs for parts.

Structural characteristics

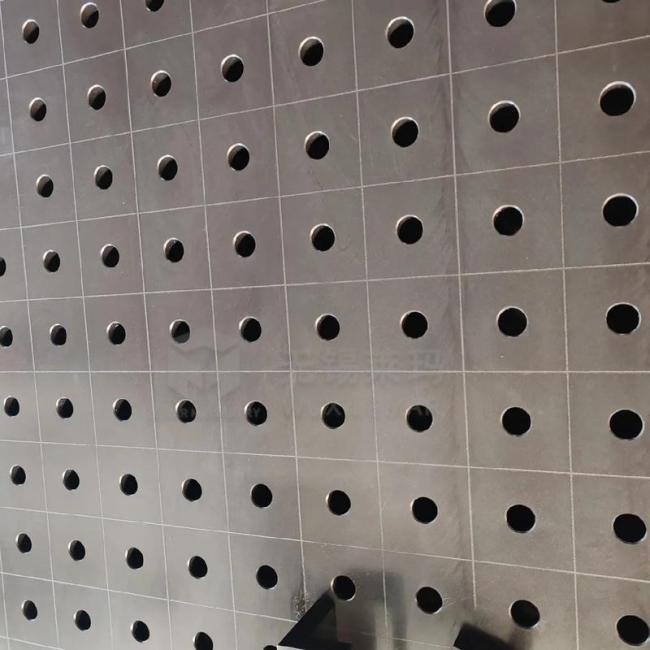

• Five-sided machining (five-sided hole system): The top surface and all four sides can be clamped, enabling 3D spatial welding.
• Overall annealing stress relief: Ensures the 3D Welding Table with D16 Holes for Quick Fixture Setup remains undeformed and warp-free for long-term use, maintaining stable accuracy.
• Lightweight and high-rigidity tabletop: The 3D Welding Table with D16 Holes for Quick Fixture Setup is lighter than D28, making it easier to handle and move.
• Grid scale lines: Comes with 50mm scale markings, eliminating the need for drawing lines or using a tape measure for quick alignment.
• Modular and expandable: Multiple tables can be seamlessly joined together, covering everything from small parts to medium-sized structures.
• Low center of gravity and strong stability: Prevents shaking and displacement during welding.

FAQ

Q:What does “Quick Fixture Setup” mean?
A:It means users can complete positioning and clamping in 3–5 minutes with standard modular accessories (location pins, quick clamps, angle brackets, V-blocks) without complicated tools or custom jigs.

Q:What is the difference between D16 and D28 systems?
A:D16: Φ16mm holes, 50×50mm pitch, lighter, higher precision, for small/precise workpieces.
D28: Φ28mm holes, 100×100mm pitch, heavy-duty, higher load, for large/heavy steel structures.

Q:Can I use it for both welding and assembly?
A:Yes. It supports welding, positioning, assembly, marking, inspection and fixture building for sheet metal, tubes, profiles and small machinery parts.

Q:Is it easy to clean and maintain?
A:Yes. The table uses smooth through holes (no threads), so welding spatter is easy to clean with an air gun. Daily maintenance only requires basic anti-rust care.

Q: Can you provide custom sizes?
A:We accept custom table size, hole pattern, table height, base type (fixed/mobile/lifting), surface treatment and fixture packages.
