3000kg Welding Tank Rotator Polyurethane Turning Rolls For Welding And Cylinders
Price:
500-5000USD
MOQ:
1 set
Delivery Time:
3 days
Brand:
Brand
Product Description

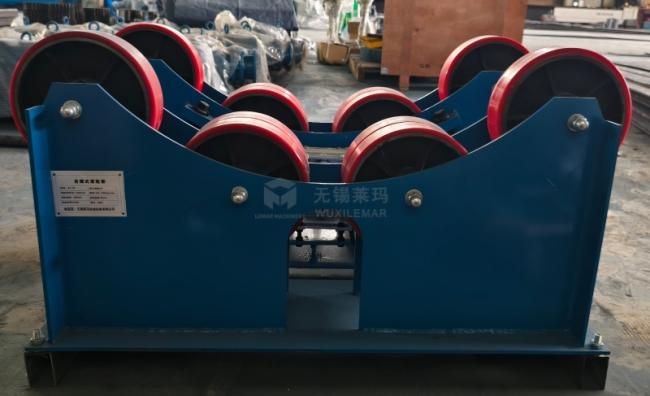

3000kg Adjustable Welding Rotator for Welding and Rotating of Tanks, Pipes & Cylinders
Wuxi Lemar has been a professional manufacturer of rotary rollers for decades and enjoys a high reputation in the industry. Our turning rolls are durable and have low maintenance costs. They have a wide load capacity range, from 1T to 1000T, and we support custom production based on provided drawings.
We offer drive rollers and idler rollers, which can be purchased individually or as a set. If your tube is too long, you can add a set of driven rollers.
We produce various types of rotary rollers: self-adjusting rotary rollers, hydraulically lifting rotary rollers, modular rotary rollers, adjustable rotary rollers, and more.
Product Specifications
The 3000kg welding turning rolls allow for center-distance adjustment via pre-drilled screw holes or lead screws to accommodate variations in workpiece diameter. The drive system utilizes either a cycloidal pinwheel reducer or a worm gear reducer, with dual motors.
Depending on user requirements, the rolls are available in three types: rubber wheels, steel wheels, and a combination of steel and rubber. They can be linked and controlled with other equipment.
| Model | ZTG-3 |
|---|---|
| Max Loading Weight | 3T |
| Suitable for Pipe, Cylinder and Tank | Ø80-Ø1500 |
| Polyurethane Roller Size | Ø250*50 |
| Linear Speed of Welding Rotator | 80-1600mm/min |
| Motor Power | 370W |
| Way of Control | AC 220V/110V |
Structural Features
- Smooth Low-Speed Operation and Low Noise: The DC motor provides constant torque output, strong load capacity, smooth low-speed operation, and low noise.
- Convenient Operation and Strong Controllability: The controller features jog and automatic operation buttons and can be controlled via a foot switch for easy operation.
- Strong Anti-Interference Capability: The controller undergoes high-frequency processing, resulting in extremely strong anti-interference capability and excellent welding effect.
- Convenient Operation, Time-Saving and Labor-Saving: No tools are required when adjusting the roller positions; simply place the rollers symmetrically into the corresponding grooves.
- Digital Adjustment and Display, Accurate Speed: Composed of a driving wheel and a driven wheel, the driving wheel uses a worm gear reducer for excellent performance.
