10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
Price:
500USD
MOQ:
1 set
Delivery Time:
3-5 days
Brand:
Lemar
Product Description
10kg Light Duty Turning Positioner with Pedal
10kg Light Duty Turning Positioner with Pedal is a lightweight, automated welding auxiliary device designed to adjust weld seams to ideal welding positions through rotation and tilting. This significantly enhances welding quality, efficiency, and operator comfort, making it particularly suitable for precision or small workpieces weighing up to 10 kg.
Core Structural Components

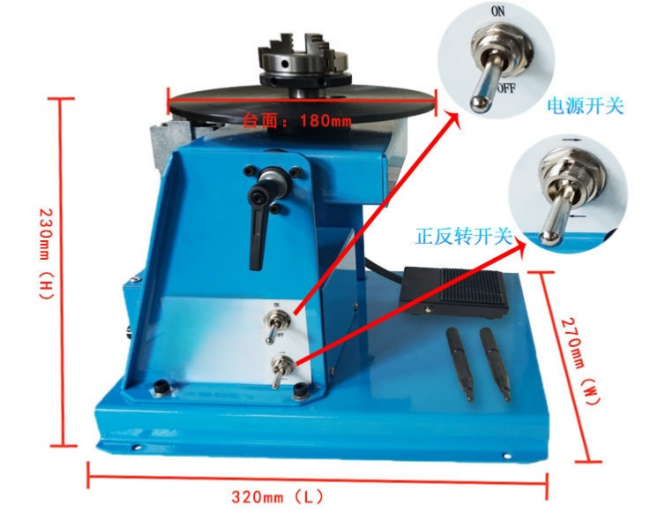

Worktable: Directly fixes the workpiece with 180mm diameter, capable of mounting chucks or special fixtures
Frame: Steel supporting base providing stability for the entire device
Tilting Mechanism: Enables worktable tilting from 0-90 degrees for optimal weld seam positioning
Drive and Control Systems
Drive System: Permanent magnet DC motor with gearbox providing stepless speed regulation from 2-20 rpm
Control System: Includes control box and foot switch for hands-free operation during welding
Technical Specifications
| Horizontal Loading Weight | 10kg |
| Vertical Loading Weight | 5kg |
| Drive Motor | DC 120W |
| Rotate Angle | 0-360° |
| Tilt Angle | 0-90° |
| Rotation Speed | 0.2-2.5 r/min |
| Positioner Table Diameter | 400mm |
10kg positioners are typically available with a variety of optional accessories, such as a three-jaw self-centering chuck (for quickly clamping round workpieces), a pneumatic tailstock (for supporting longer workpieces and maintaining concentricity), and a welding torch adjustment mechanism (for precisely fixing and fine-tuning the welding torch position).

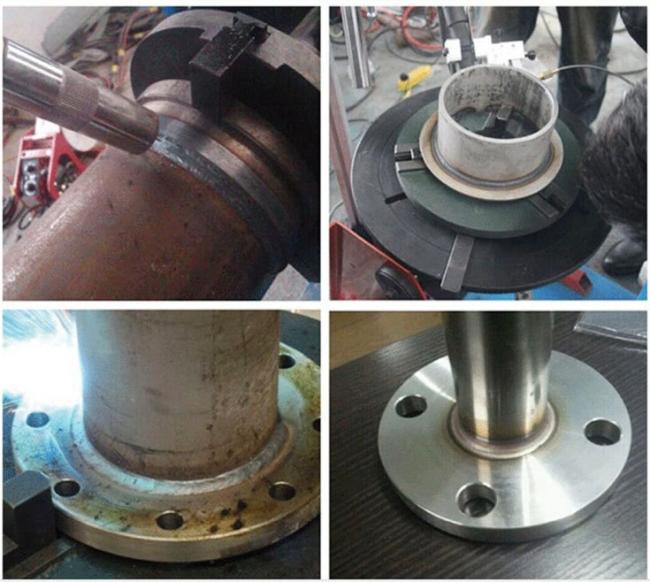

They are mostly used for welding flanges, pipe fittings, pipe connections, automotive shock absorbers, exhaust pipe components, stainless steel/metal bellows, hose fittings, round end caps, small pressure tanks, and end caps.
