Ultra Precision 3D Steel Welding Table For Fine Fabrication HRC50 ‑ 58
Price:
500-1000 USD
MOQ:
1
Delivery Time:
15-25 work days
Brand:
LMEAR
Product Description

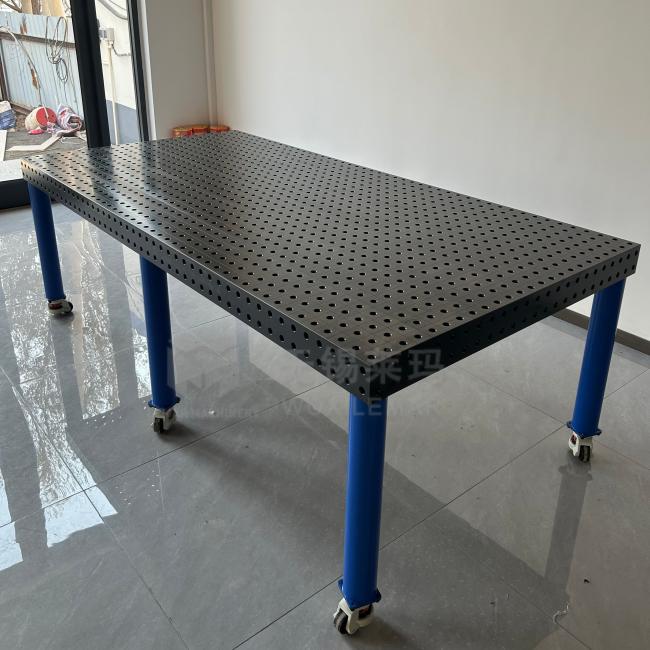

Ultra Precision D16 3D Welding Table for Fine Fabrication
The Ultra Precision 3D Welding Table for Fine Fabrication is a modular, flexible tooling platform designed for high-precision, small-batch, and complex structural component welding and assembly. Its core value lies in achieving micron-level positioning, extremely low welding deformation, and rapid changeover, making it a core tooling for high-end precision manufacturing.
Technical Specifications Comparison
| Comparison Items | Ultra Precision 3D Welding Table | Standard 3D Welding Station |
|---|---|---|
| Flatness | ≤0.03mm/m² (inspection grade) | 0.1-0.3 mm/m² (industrial grade) |
| Positioning Accuracy | ±0.01mm | ±0.05-0.1mm |
| Material | HT300 Cast Iron / Alloy Tool Steel | Ordinary cast iron / Q235 steel |
| Processing Technology | CNC precision milling + manual scraping | Ordinary milling |
| Thermal Stability | Deformation < 0.02 mm/m (-20~120℃) | Deformation > 0.1 mm/m |
| Applicable Scenarios | Precision manufacturing, micron-level tolerances | General welding, structural component manufacturing |
Structural Design Features

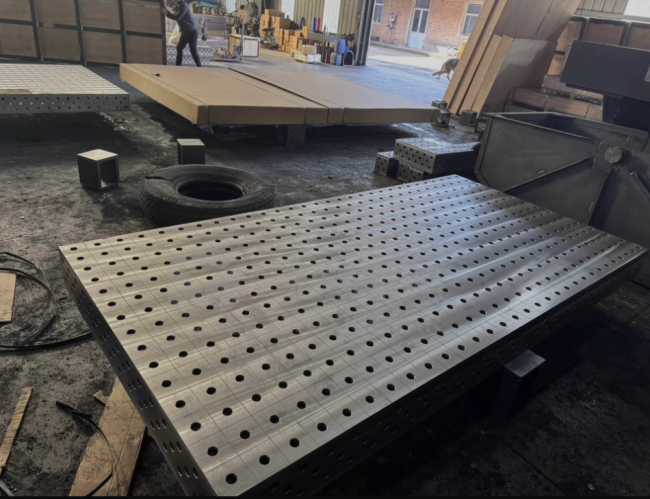

- Five-sided machining (tabletop + 4 side panels): Positioning holes around the entire circumference enable 3D welding
- Reinforced ribs/box-type structure: High rigidity, load-bearing capacity of 5-10 tons/㎡, no deformation after long-term use
- Modular assembly: Multiple units can be seamlessly assembled to meet the needs of large workpieces
Core Advantages
- Ultimate Precision: Positioning and repeatability accuracy reaches ±0.01mm, ensuring consistent finished product dimensions and geometric tolerances
- Extremely Low Deformation: High rigidity + shock-absorbing materials + low thermal expansion reduce welding deformation by over 70% compared to traditional platforms
- Flexibility and Efficiency: One platform covers multiple product types and small batches, reducing changeover time from hours to minutes, significantly lowering tooling costs and inventory
- High Versatility: Compatible with manual welding, automatic welding, robotic welding, precision assembly, and coordinate measuring machine inspection, offering multiple uses in one machine
- Long-Term Stability: Constructed from precision cast iron/alloy steel, maintaining accuracy for ten years with low maintenance costs
Export Packaging Standards
- Material: Multi-layer plywood / solid wood fumigated crate
- Compliant with: IPPC fumigation mark, acceptable to most countries worldwide (EU, USA, Middle East, Southeast Asia, Australia, etc.)
- Free from pests and quarantine risks, suitable for sea, air, and land transport
Warranty Policy
Warranty period: 24 months from the date of delivery
Warranty Coverage
- Quality defects of the welding table structure, frame, and precision
- Normal wear and tear of standard accessories within warranty
Free Services Under Warranty
- Free repair or replacement of defective parts
- Free technical support and troubleshooting guidance
