1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
Price:
100-500 USD
MOQ:
1
Delivery Time:
15-25 work days
Brand:
LEMAR
Product Description

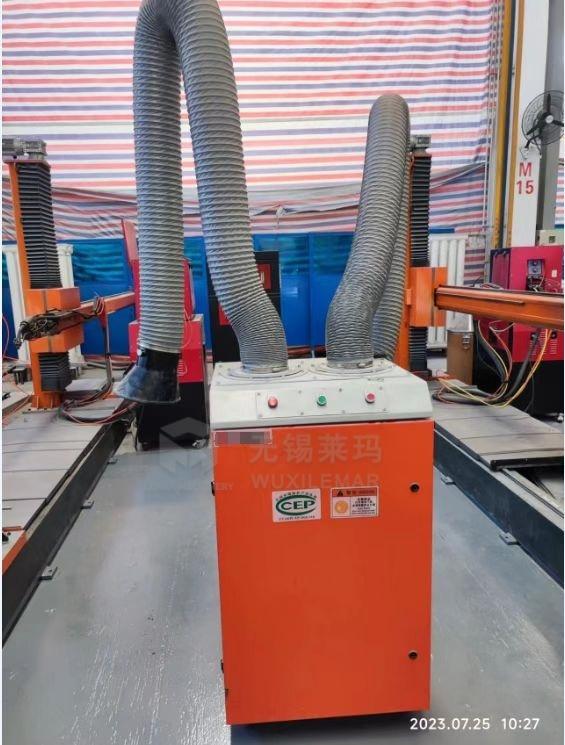

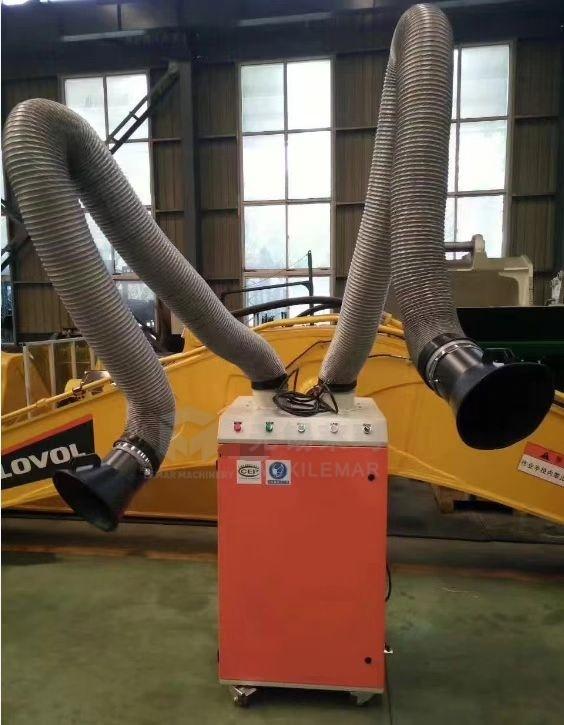

Commercial Dust Collector for Welding Smoke and Particles
This commercial-grade air purification system is specifically engineered for industrial welding applications. It effectively captures and purifies welding fumes, metal particles, and harmful gases at the source, protecting worker health while meeting environmental emission standards.
Technical Specifications
| Air Flow | 1000-1500 m³/h |
| Power | 1.0-3.0 kW |
| Voltage | 220V/380V, 50/60Hz |
| Air Pressure | 1500-3000 Pa |
| Filter Efficiency | ≥99.9% for 0.3μm particles |
| Suction Arm | 2m / 3m / 4m, 360° flexible |
| Dust Collection | Drawer type, 10-30L |
| Noise Level | ≤75 dB(A) |
Core Components
Suction Arm/Collection Hood
360° rotation with damped suspension, high-temperature resistant hose for precise source capture
Fan System
Variable frequency centrifugal fan, high temperature resistant (150℃), adjustable airflow with low noise design
Filter Cartridge
PTFE membrane polyester pleated filters with flame retardant and antistatic properties, high dust holding capacity
Pulse Cleaning System
Compressed air tank with solenoid valve and nozzle, automatic cleaning triggered by timer or differential pressure
Dust Collection Device
Drawer/hopper type design for easy cleaning and prevention of secondary dust generation
Control System
PLC/microcontroller monitoring differential pressure, airflow, and filter life with remote start/stop capability
Product Advantages
- Source capture technology ensures high purification efficiency and eliminates smoke diffusion
- Powerful suction provides stable and consistent airflow performance
- Automatic dust removal eliminates frequent manual cleaning requirements
- Flexible mobility suitable for multi-workstation rotation
- Low noise operation meets workshop environmental standards
- Fireproof and anti-static design ensures safer industrial environment
- Robust construction with low failure rate for long-term reliability
Air Intake Arm Details
| Material | High-temperature resistant, flame-retardant flexible hose (withstands >200℃) |
| Support | External spring/bracket for secure positioning without sagging |
| Diameter | φ140mm / φ160mm / φ200mm |
| Length | 2m, 3m, 4m, 5m (customizable options available) |
| Suction Hood | Equipped with adjustable valve for on/off airflow control |
After-Sales Service and Support
- Commercial Dust Collector for Welding Smoke and Particles - 1-Year Warranty
- Long-Term Supply of Consumable Parts (Filters)
- Complete Documentation: English Instruction Manual, Electrical Diagram, Installation Video
- Lifetime Technical Support for Wiring, Debugging, and Troubleshooting
- Optional On-Site Service by Overseas Engineers
