Automated Straight Seam Welding Machine 0.5 - 6mm Thickness Longitudinal Seam Welder
Price:
500-5000
MOQ:
1
Delivery Time:
7 days
Brand:
Lemar
Product Description

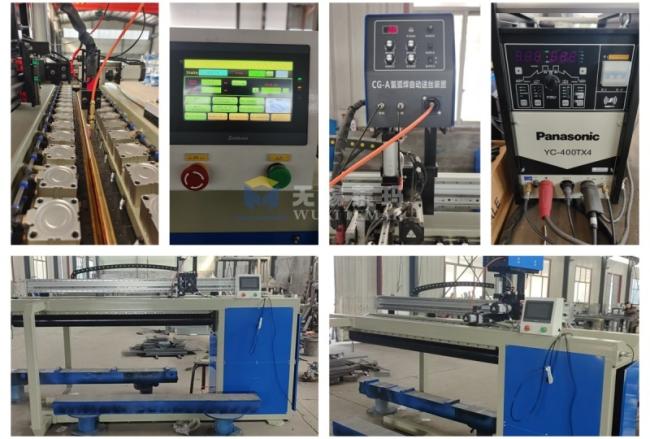

ZF-1500 Automated Internal Pipe Welding Machine
The ZF-1500 Automated Internal Pipe Welding Machine is a specialized submerged arc welder designed to solve longitudinal seam welding challenges in thin plates. This advanced equipment delivers superior performance with high efficiency, precision, and minimal deformation.
This welding machine significantly enhances weld aesthetics while reducing labor intensity, making it essential for improving production efficiency and product quality in modern industrial manufacturing. Suitable for both large petrochemical containers and delicate stainless steel products, the ZF-1500 demonstrates powerful capabilities across diverse applications.
Key Features & Benefits

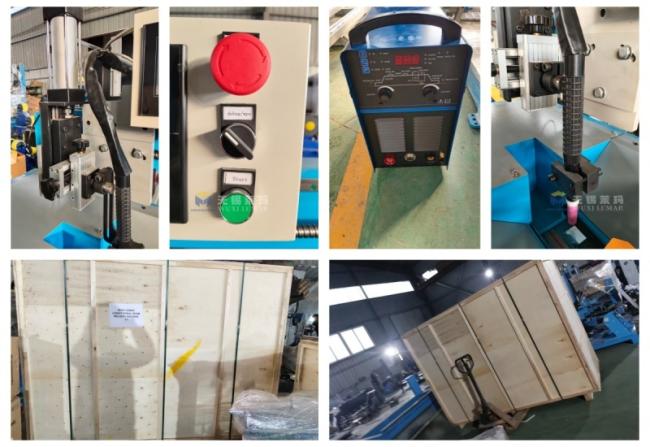

- Cantilevered main frame with high-strength body construction
- Pneumatic piano-key type clamping mechanism for secure hold
- Copper welded gaskets with back-gas protection system
- High-precision walking and adjustment mechanism
- PLC-controlled system with user-friendly interface
Technical Specifications
| Effective welding length | ≤1500mm |
| Welding diameter | 120-1000mm |
| Welding thickness | 0.5-6mm |
| Welding head moving speed | 220-2200mm/min |
| Welding torch adjust stroke | Y=100mm, Z=100mm |
| Suitable welding process | TIG, PAW, MIG, MAG, SAW, LASER welder |
| Input power | AC220V 1P or 380V 3P |
| Walking drive | DC servo motor + rack and pinion drive |
We offer straight seam welding machines in various lengths from 300mm to 2500mm to accommodate your specific manufacturing requirements.
Trusted Manufacturing Partner
Wuxi Lemar Machinery Equipments Co., Ltd. provides stable, efficient, and highly customizable seam welding equipment with over 15 years of industry experience. As a high-tech enterprise, we focus on R&D and manufacturing of automatic welding and cutting equipment.
