PLC Circular Seam Welding Machine 1-10r/Min TIG CO2 Welding Long Seam
Price:
500-5000usd
MOQ:
1
Delivery Time:
7 days
Brand:
Lemar
Product Description

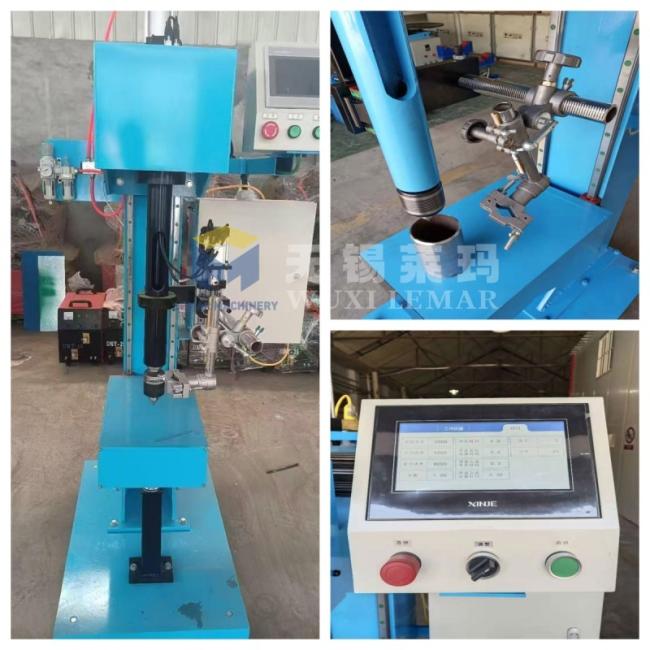

Shock Absorber Circular Seam Welding Machine
The Automatic Rotating Gun Welding Machine is a core piece of equipment in modern automotive shock absorber manufacturing. With superior performance characterized by high precision, efficiency, and stability, this equipment helps automotive parts manufacturers improve product quality while reducing production costs.
Whether you are building a new shock absorber production line or automating existing welding processes, this equipment provides a reliable solution for circumferential seam welding applications.
Technical Specifications
| Power Supply | 380V 50HZ | Welding Source | TIG, MIG, MAG, PAW, SAW |
|---|---|---|---|
| Spindle Speed | 1-10r/min | Suitable Diameter | 30-60mm |
| Wire Diameter | 0.8-1.2mm | Pressure | 0.4-0.6MPa |
| Welding Torch Stroke | 100mm | Welding Torch Angle | 25°-60° |
| Control Mode | PLC + Touch Screen | Brand | LEMAR |
Additional Circumferential Welding Equipment
- Hydraulic cylinder welding equipment
- Pneumatic cylinder welding equipment
- Circumferential weld equipment for pipe fittings and flanges
- Circumferential weld equipment for thin-walled vessel shells
Industry Applications
- Shock absorber oil reservoir welding to base: Achieving circumferential seam connection between the cylinder and the bottom end cap.
- Shock absorber spring disc welding: Precisely positioning the lap weld between the spring seat and the cylinder.
- Shock absorber lifting ring (mounting bracket) welding: Completing the circumferential seam weld between the top mounting bracket and the cylinder.
- Shock absorber valve body welding to oil pipe: Precisely positioning the connection weld between the valve body and the pipe fitting.
