Complete Set Welding Fixture Table HRC 40- 45 Welding Fixture Table
Price:
500-1000 USD
MOQ:
1
Delivery Time:
15-25 work days
Brand:
LEMAR
Product Description

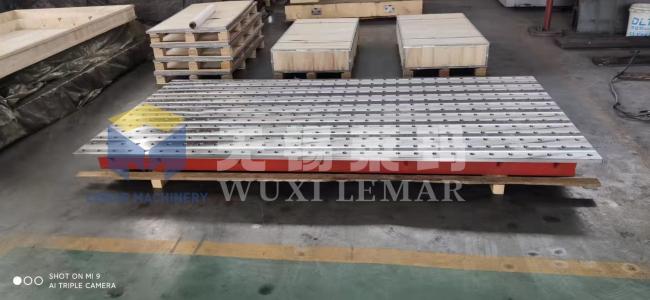

2D Welding Table with Complete Set of Accessories
The 2D Welding Table with Complete Set of Accessories is a precision tooling platform for metal welding and machining. Designed for rapid positioning and clamping in the XY plane, this system enables efficient, precise, and repeatable welding operations with standardized fixture accessories.
Technical Specifications
| Countertop hardness | HRC 40-45 |
| Machining accuracy | Flatness ≤ 0.05 mm/m² |

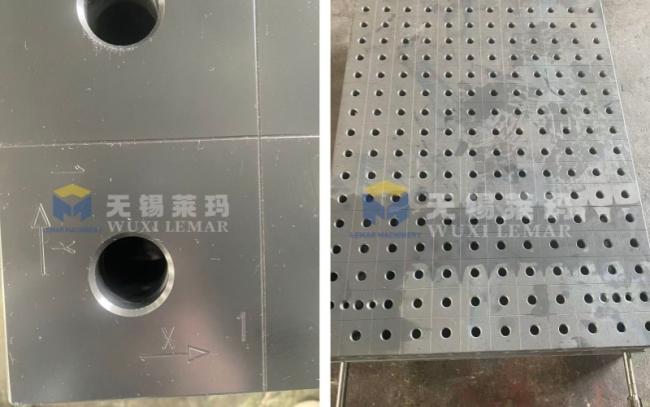

| Pore system form | Square hole grid system |
| Hole spacing | 50×50 mm / 100×100 mm |
| Hole diameter | D16 / D28 |
| Frame | Heavy-duty square tube steel |
| Adjustable feet | ±20 mm |
| Load capacity | 1.5-5 ton/m² |
Core Functions and Advantages
- Quick Changeover: Modular building block design enables tooling switchover within minutes, reducing time and cost for custom welding fixtures
- High Repeatability: Unified hole system ensures consistent workpiece positioning during batch welding, minimizing dimensional tolerances
- Flexible Operation: Adaptable to various workpieces including sheet metal, square tubing, round tubing, and angle steel
- Lowered Barrier to Entry: Beginners can achieve precise positioning using standard accessories, reducing reliance on experienced welders

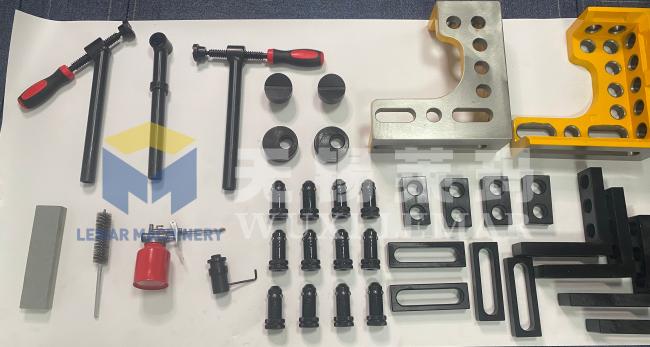

Standard Accessories Configuration
| Quick clamp / elbow clamp | Quickly clamp workpieces to prevent welding displacement |
| Locating pin / diamond pin | Reference positioning ensures repeatable clamping accuracy (±0.01mm) |
| Angle blocks / right angle ruler | Precise control of welding angles such as 90° and 45° |
| V-block | Clamping round tubes and shafts |
| Support block / Elevating block | Leveling workpieces of different thicknesses |
| Wrench, connecting bolts, storage box | Tools and storage solutions |
Structural Details
- Reinforced Construction: Heavy-duty square tubing frame with multiple crossbeams prevents wobbling and deformation under load
- Adjustable Leveling: Quick-leveling feet ensure table stability even on uneven surfaces
- Safety Features: Chamfered tabletop holes and edges prevent hand injuries and slag buildup
- Vibration Control: Low center of gravity and high rigidity minimize vibration during welding operations
Durability and Lifespan
Built with high-strength cast iron/steel plate tabletop resistant to cracking and bending. Surface treatment provides rust and welding slag protection, extending lifespan significantly compared to ordinary workbenches. High-strength steel clamps maintain integrity after repeated use. With proper maintenance, expect 5-10 years or more of reliable service.
Packaging and Transportation
- Export standard plywood crates or steel-strapped crates
- Tabletops protected with anti-scratch film
- Accessories individually packaged and categorized
- Available as complete package or disassembled for cost savings
- Suitable for sea, land, and cross-border transportation
