1000KG Circular Seam Welding Machine ±45deg Pipe Welding Corner Seam Welder
Price:
500-5000usd
MOQ:
1
Delivery Time:
7 days
Brand:
Lemar
Product Description

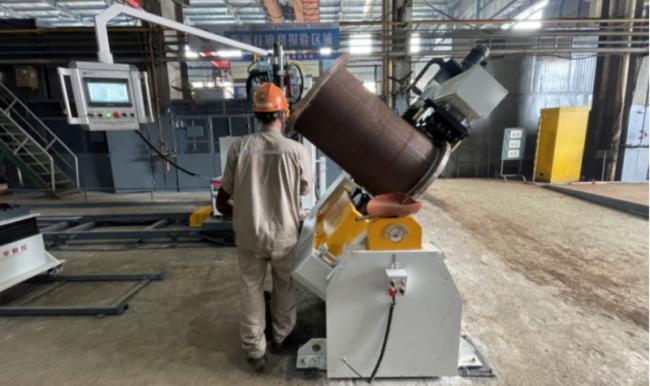

Roller-Type Machine Rotary Welding Machine 1000kg
Lemar's pipe rotary welding machine offers exceptional practicality and reliability. This roller-type pipe circular welding positioner serves as a versatile welding auxiliary device for welding pipes to pipes, pipes to flanges, bent pipes, T-shaped pipes, and pipes of different diameters with offset centers of gravity.
The equipment securely clamps pipes or flanges and rotates or tilts the workpiece to optimal welding positions as needed. Primarily used for rotary pipe welding across various industries including shipbuilding, chemical engineering, and skid-mounted equipment. This roller-type pipe welding positioner can also integrate with mobile cantilever welding machines to create automated welding systems.
Technical Specifications
| Model | LM-28 |
| Pipe diameter | Φ108-710mm |
| Rotate speed | 100～1000mm/min |
| Rotational torque | 30000NM |
| Equipment power | 4.15KW |
| Displacement method | Electric |
| Drive wheel height | 950mm |
| Equipment weight | About 1500KG |
| Max load capacity | 1000KG |
| Drive wheel transmission method | Motor + gear reducer + worm gear drive with self-locking function, high rotational stability and precision |
| Arm lifting and guiding method | High-precision linear guides for superior transmission accuracy, stability, and maintenance convenience |
| Arm lifting method | Motor + Gear Reducer + Lead Screw and Nut Pair |
| Control | Hand control box + foot switch |
| Tilt angle | ±45° |
| Power | 3P, 380/50HZ |
Key Features
- Dedicated Workpiece Clamping System: V-shaped clamp structure adapts to pipes of different diameters while ensuring precise positioning
- Multi-Degree-of-Freedom Welding Torch Adjustment: Welding torch angle adjustable from 25°-60°, maintaining proper alignment with pipe surface normal direction
- Automatic Arc Length Tracking System (AVC): Maintains constant distance between welding torch and workpiece with ±0.2V sensitivity for consistent welding quality
- Multi-Process Compatibility: Supports TIG (Tungsten Arc Welding), MIG/MAG (Gas Shielded Gas Welding), and plasma welding processes
- Intelligent Control System: PLC programmable controller with touchscreen interface stores up to 30 sets of welding process parameters
- Dual Operation Modes: Manual mode for pre-welding preparation and touch-up welding; automatic mode for unmanned welding operations
Premium Construction: Features high-precision linear guides and worm gear drive systems for superior stability and precision, avoiding low-cost chain drive and steel guide alternatives that require frequent maintenance.
