MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
Price:
500-10000usd
MOQ:
1 set
Delivery Time:
20 days
Brand:
Lemar
Product Description

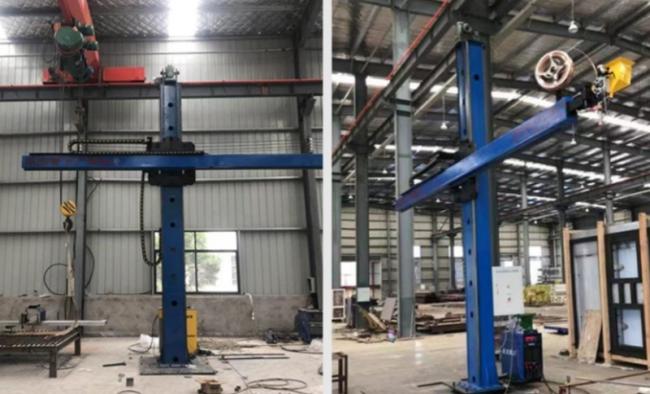

HJ5050 MIG Welding Manipulator - Longitudinal Seam Welding System
In heavy manufacturing, steel structures, and pressure vessel industries, welding processes often require switching between MIG/MAG and SAW welding methods due to variations in workpiece material, plate thickness, and specific weld requirements.
Wuxi Lemar's multi-functional MIG/MAG welding manipulator is an automated welding system featuring a modular design that enables rapid process switching. This versatile equipment allows you to handle multiple welding applications with a single machine, maximizing your return on investment.
Key Features & Capabilities
- The welding head is mounted at one end of a crossbeam, providing vertical movement and horizontal extension/retraction capabilities
- The column is mounted on a trolley via a rotary table with ±180° rotation capacity
- Crossbeam extension and retraction are frequency-controlled for stable speed operation
- Compatible with welding rotary tables, roller frames, and other positioners for internal/external circumferential welds, longitudinal welds, and surfacing welds on cylinders
- Standard interface allows quick interchange between MIG/MAG welding torch and SAW welding head within minutes
- Simultaneous switching of wire feeding mechanism, flux delivery and recovery system, and corresponding control parameters for multi-purpose functionality
Technical Specifications
| Model | HJ-2020 | HJ3030 | HJ4040 | HJ4050 | HJ5050 | HJ6060 | HJ7070 |
|---|---|---|---|---|---|---|---|
| Column Effective Stroke | 2000mm | 3000mm | 4000mm | 4000mm | 5000mm | 6000mm | 7000mm |
| Boom Effective Stroke | 2000mm | 3000mm | 4000mm | 5000mm | 5000mm | 6000mm | 7000mm |
Welding Source: TIG / Submerged Arc Welding / MIG Welding
Trolley: With or Without
Rotation: Electric Type or Manual type according to customer request
Welding Tracking: Customized
Voltage: 380V or Customized
Other Options: Welding Positioner or Welding Rotator
Trolley: With or Without
Rotation: Electric Type or Manual type according to customer request
Welding Tracking: Customized
Voltage: 380V or Customized
Other Options: Welding Positioner or Welding Rotator
