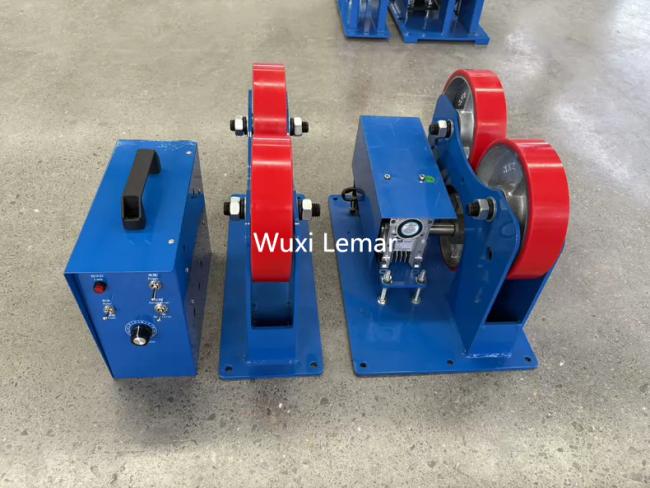

1 Ton Self-Aligning Welding Rotator with VFD Speed Control for Pipe and Tank Welding Turning Roll
This 1-ton self-aligning welding rotator is a professional welding turning roll designed for pipes, tanks, and pressure vessels. Featuring self-adjusting PU roller design and VFD variable speed control, it ensures stable rotation for circumferential seam welding. The rigid steel frame provides steady operation and perfectly matches welding manipulators, making it widely used in boiler, pipeline, and metal fabrication industries.
| Parameter | Specification |
|---|---|
| Max. Load Capacity | 1000 kg |
| Self-Adjusting Roller Type | Rubber-coated + polyurethane wheel |
| Roller Rotation Speed | 60 - 600 mm/min |
| Drive Motor Power | 250W DC gear motor |
| Workpiece Diameter Range | Ø 50 mm - Ø 800 mm |
| Roller Material / Hardness | Nitrile rubber (80 Shore A) + wear-resistant PU coating |
| Control Method | Remote wired pendant / pedal speed control |
| Power Supply | 230V AC 50/60Hz |
- Automatic Adaptation: Self-aligning structure automatically fits different workpiece diameters, saving adjustment time.
- Premium Roller Performance: High wear-resistant PU roller, anti-slip and no scratch on workpiece surface.
- Stable Speed Control: VFD stepless speed regulation ensures smooth rotation for welding seam.

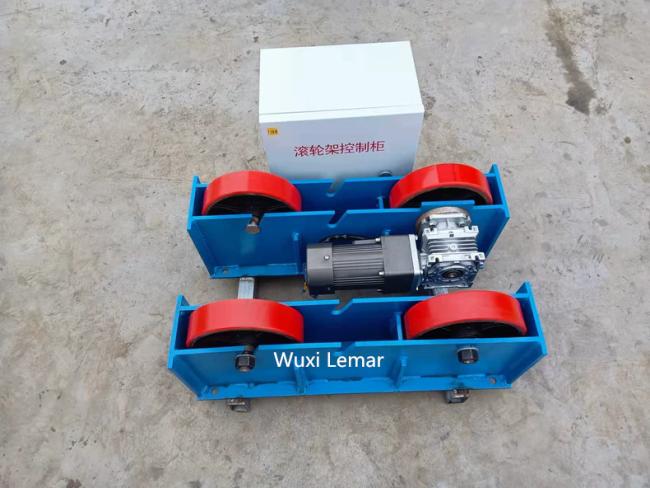

- Solid Structural Strength: Integrated steel welded frame provides high rigidity and stable load bearing.
- Wide Compatibility: Perfectly matched with welding manipulator, easy operation and low maintenance.
- Load Capacity: Confirm the actual bearing tonnage matches workpiece weight.
- Roller Material: Prioritize high wear-resistant PU roller to avoid workpiece damage.
- Speed Regulation System: Adopt VFD variable speed for stable rotating speed.
- Structure Stability: Integral steel welded frame with high overall rigidity.
- Adjustment Mode: Choose self-aligning or spacing adjustable type as needed.
- Matching Compatibility: Support docking with welding manipulator and automatic welding system.
- Quality & Service: Check production process, warranty and after-sales support.
- Technical Support: Professional online technical guidance available anytime.
- Installation Guidance: Remote installation commissioning and operation training provided.
- Warranty Period: Long warranty time for main body and core components.
- Spare Parts Supply: Original spare parts available at factory price quickly.
- Fault Handling: Rapid response to equipment failure with effective solutions.
- Lifelong Maintenance: Lifelong paid maintenance and upgrade service offered.
Yes, it can automatically adapt to various cylinder diameters without manual adjustment.
High wear-resistant PU roller material that prevents scratching on workpiece surfaces.
Equipped with VFD variable speed system, providing stepless speed regulation.
Widely used for pipes, tanks, pressure vessels and cylindrical parts.
Yes, it can be perfectly compatible with automatic welding equipment.
