D28 2D Modular Welding Table 2000mm x 1500mm
Our D28 2D Modular Welding Table 2000mm x 1500mm is a heavy-duty, high-precision modular welding fixture platform. Adopting standard D28 100mm grid hole system, it supports full modular clamping, positioning and assembly. Ideal for custom metal fabrication, frame welding, chassis assembly and robotic welding workstation layout. It perfectly fits small to medium workpieces and batch production demands.
| Table size: | 2000mm × 1500mm, with a thickness of approximately 25mm |
|---|---|
| Reference hole: | 28mm in diameter, with a grid spacing of 100 ± 0.05mm, evenly distributed throughout the entire tabletop |
| Flatness: | 0.3mm/1000mm (high-precision level) |
| Verticality: | 0.1mm/200mm (side to table) |
| Surface hardness: | about 20HRC (wear-resistant, slag resistant) |
| Material: | HT300 cast iron (stress relieved, non deformed) or Q355 steel (heavy-duty) |
| Working face: | 5 faces (tabletop+4 sides) can be positioned and clamped |
| Supporting feet: | Standard fixed feet, adjustable feet (700-900mm), and optional wheeled mobile feet |
- Main body of countertop: High precision CNC machining, hole spacing error ≤ ± 0.05mm, surface precision milling/scraping, Ra3.2. Mark millimeter scales on the edge for easy and quick measurement and positioning.
- Support system: Box type/reinforced base with strong load-bearing capacity and vibration resistance. The footrest can be adjusted horizontally to ensure long-term horizontal stability of the tabletop.

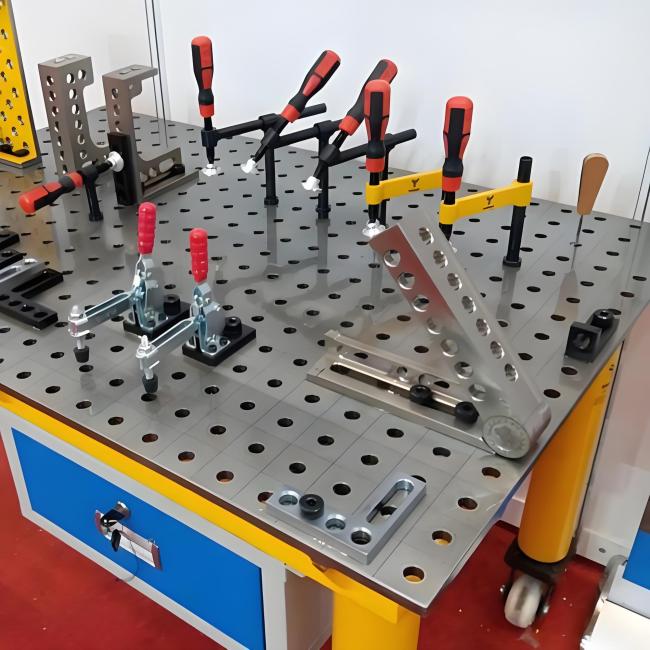

- Modular fixture (optional): Positioning pin, quick locking pin, right angle block, V-shaped block, support block, angle sensor, quick clamp, etc. All accessories are compatible with the φ 28 hole system and can be combined in a "building block" style to adapt to different workpieces.
This D28 welding table is fully CE certified according to EU Machinery Directive and EN 1090 standard.
- Meets European industrial safety regulations
- Safe edge design, anti-tipping stable structure
- Qualified welding procedure and raw material traceability
- Free customs clearance and legal circulation in EU market
- Perfect for large factories, engineering companies and industrial procurement audit
Automotive frame, engineering machinery, steel structure, cabinet chassis, agricultural equipment, logistics racking, rail transit parts, robotic welding cell and custom metal fabrication workshop.
Can I add moving casters?
Yes. We offer optional brake caster base, convenient to move the table to different workstations and lock steadily.
Can I splice several tables together?
Yes. Multiple 2000×1500mm tables can be freely spliced to make a larger working area for extra-long or super-large workpieces.
What is the packing and shipping way?
Export standard fumigated wooden box packaging. Perfect size for FCL or LCL sea shipping, suitable for EU and global container loading.
Can you customize size, color or structure?
Yes. Custom size, table thickness, base height, industrial painting color and special structure design are all acceptable.
