3000kg Load Capacity Welding Positioner with VFD Speed Control and 220V Voltage for Tank Cylinder Welding
Price:
500-1000USD
MOQ:
1
Delivery Time:
Negotiable
Brand:
LEMAR
Product Description

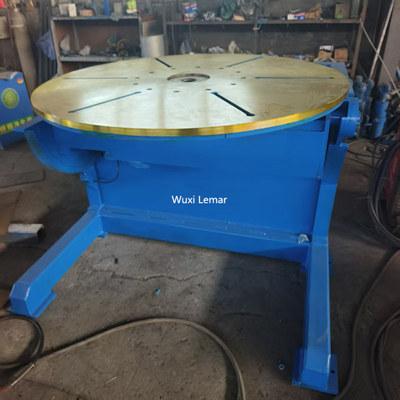

3000kg Welding Turntable Heavy Duty Welding Positioner for Tank Cylinder
Product Introduction

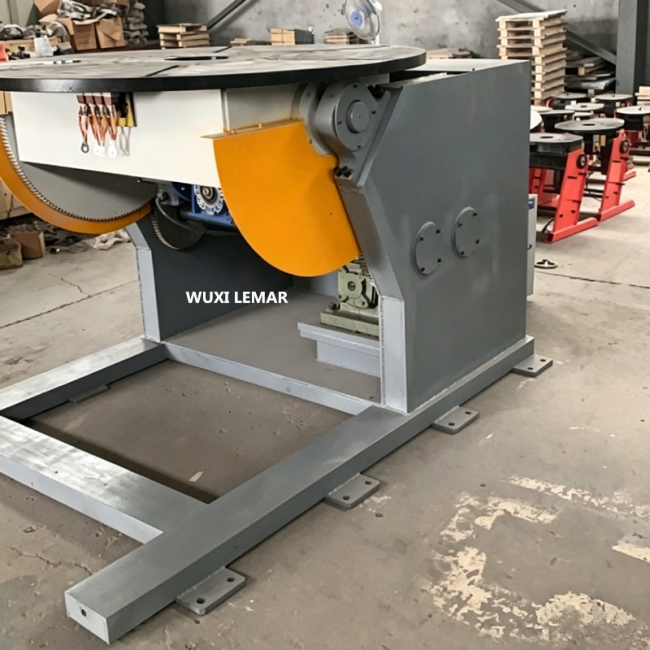

3T welding positioner adopts VFD speed regulation with stable rotation and strong load capacity. It supports 360° rotation and manual tilting, suitable for welding of cylinders, heads and various workpieces. With rigid structure and easy operation, it greatly improves welding efficiency and workmanship.
- VFD Speed Control: Stepless frequency conversion speed adjustment realizes smooth rotating and tilting, no stalling or jittering, perfectly matching automatic welding rhythm
- Safety Protection: Equipped with emergency stop, overload protection and limit switch, effectively avoiding operation risk and ensuring stable running under full load
- Humanized Operation: Integrated control panel with simple buttons and optional remote control, easy parameter setting and one-key start/stop for workers
- High Load Structure: Integral welded heavy-duty frame with stress relief treatment, strong rigidity, long-term heavy load working without deformation
- Wide Compatibility: Matches welding machine, rotator and manipulator perfectly, suitable for carbon steel, stainless steel and alloy workpiece welding
Product Parameters
| Model | BWJ-300 |
|---|---|
| Loading weight (kg) | 3000 |
| Table Speed (rpm) | 0.05~0.5 |
| Flip speed (rpm) | 0.5 |
| Flip angle (°) | 0-120 |
| Positioner diameter (mm) | Φ1400 |
| Maximum eccentricity (mm) | 200 |
| Maximum gravity (mm) | 300 |
| Rotate speed adjustment method | Frequency |
| Rotation motor (kw) | 1.5 |
| Flip motor (kw) | 3.0 |
Application Scenarios
- Widely used in pressure vessel and boiler manufacturing for circular seam and longitudinal seam welding
- Suitable for tank, cylinder and end head processing in petrochemical and natural gas industry
- Applied to steel structure and mechanical equipment workpiece rotary welding and assembly
- Perfect for new energy equipment, wind power parts and pipeline welding projects
- Matches well with welding manipulators and automatic welders for automated production lines
After-sales Service
- Professional online technical support provides 24-hour timely consultation and problem solving
- Complete one-year warranty period for core components with free maintenance within warranty
- Supply original spare parts at factory cost price for long-term equipment operation guarantee
- Provide operation installation guidance, remote debugging and technical training for operators
- Long-term follow-up service to ensure stable and efficient running of welding equipment
Frequently Asked Questions
What is the load capacity of your welding positioner?
We have complete models ranging from 0.5T to 120T, and customized load capacity is available as well.
Does the equipment support variable frequency speed regulation?
Yes, all standard models adopt VFD stepless speed regulation with stable rotating performance.
Can you customize the equipment according to workpiece requirements?
Customization is supported, including table size, tilt angle, anti-drift device and control mode.
How long is the warranty period and what does it include?
We offer 18 months warranty, with free repair and core parts replacement under normal use.
Do you provide installation guidance and technical support?
Yes, we provide remote installation guidance, operation training and lifelong online after-sales support.
