100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
The 100kg welding positioner is a lightweight precision positioner designed for automated circular/longitudinal welding of small and medium-sized workpieces. It integrates rotation, tilting, and precise positioning to adjust workpieces to the optimal flat/downhand welding position, significantly improving welding efficiency, seam quality, and operational safety. Widely compatible with TIG, MAG/MIG, plasma welding, etc., it is ideal for flanges, pipes, shafts, shells, small steel structures, and other batch welding and precision assembly tasks.
| Standard Accessories | Optional Accessories |
|---|---|
| Main machine body | 3-jaw self-centering chuck |

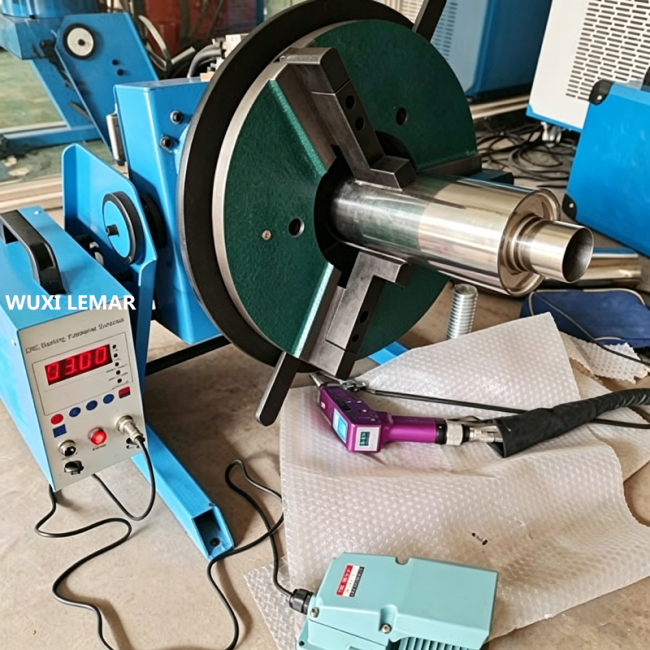

| Independent control box | Wireless remote controller |
| Foot switch | Pneumatic tailstock |

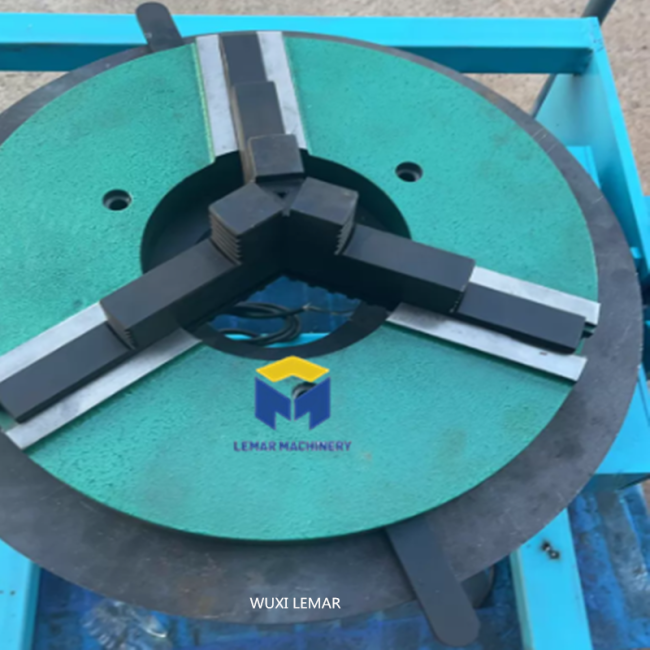

| Rotary worktable | Welding torch holder |
| Mounting screws & fasteners | Custom large center hole |
| Operation manual | CNC timing control system |
- Precision & Stable Transmission: Worm gear tilting + precision gear rotation, smooth rotation, self-locking tilt, repeat positioning accuracy ≤±0.5°.
- Stepless Speed Regulation: Wide speed range, smooth adjustment, suitable for thin part precision welding and thick part penetration welding.
- Strong Anti-Interference: Special anti-electromagnetic interference circuit, suppresses welding high-frequency interference, supports welding machine linkage.

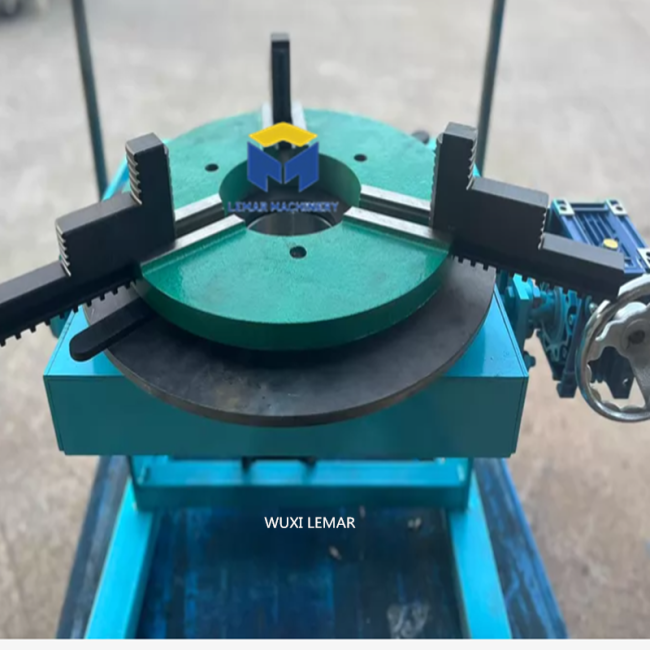

- Flexible Center Hole: Through-hole design for long pipes/shafts, compatible with 3-jaw chucks and pneumatic steady rests.
- Compact & Efficient: Small footprint, easy to move, single-operator friendly, ideal for small-batch production and robot welding stations.
- Safe & Durable: Overload protection, emergency stop, limit switches; thick steel body, wear-resistant gears, rust-proof paint.
| Model | BWJ-10 |
|---|---|
| Loading weight (kg) | 100KG |
| Rotation speed (rpm) | 0.5-5 |
| Flip speed (rpm) | 0.73 |
| Flip angle (°) | 0-90 |
| Positioner diameter (mm) | Φ400 |
| Maximum eccentricity (mm) | 150 |
| Maximum gravity (mm) | 200 |
| Rotate speed adjustment method | Frequency |
| Rotation motor (kw) | 0.37 |
| Flip motor (kw) | 0.37 |

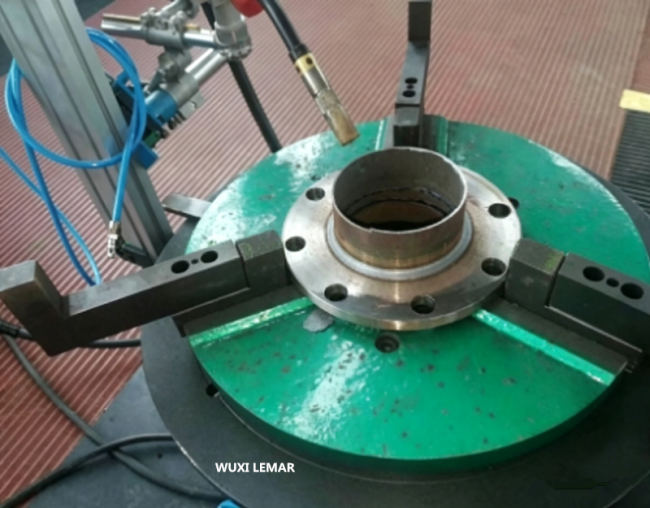

- Metal fabrication: flanges, elbows, tees, small pressure vessels
- Pipe manufacturing: steel/stainless steel/aluminum pipe welding
- Auto parts/hardware: shafts, hubs, shells, brackets
- Steel structures: small frames, boxes, heads
- Automation: robot external axis, automatic production line
A: Yes. It adopts stepless speed regulation with stable rotation, no shaking, perfectly suitable for thin sheet and small precision workpieces welding.
A: Sure. It uses worm gear self-locking structure, which can stay at any tilt angle without slipping.
A: We support custom voltage like 110V, 220V, 380V to adapt to local power supply standards.
A: The table is designed with T-slots, which is convenient to install 3-jaw chuck, fixtures and customized tooling.
A: OEM & ODM are acceptable. We can customize logo, color and outer structure according to your requirements.
