50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Price:
500-1000USD
MOQ:
1
Delivery Time:
10-20 work days
Brand:
LEMAR
Product Description

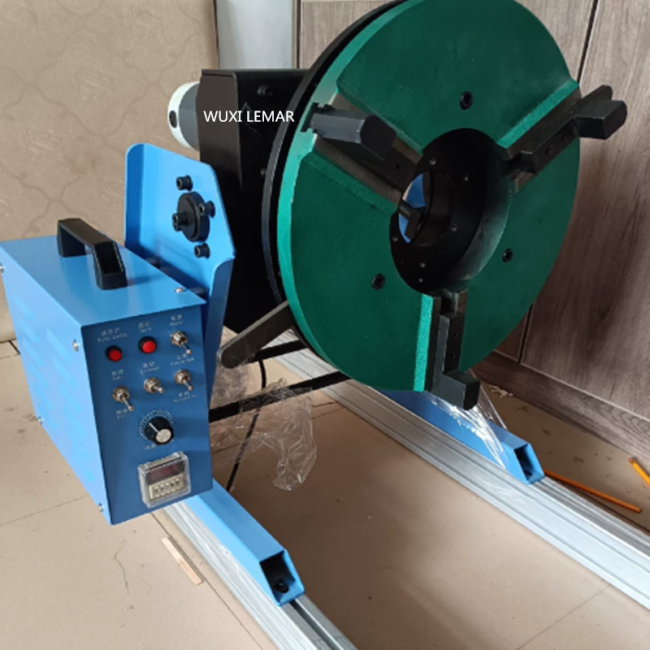

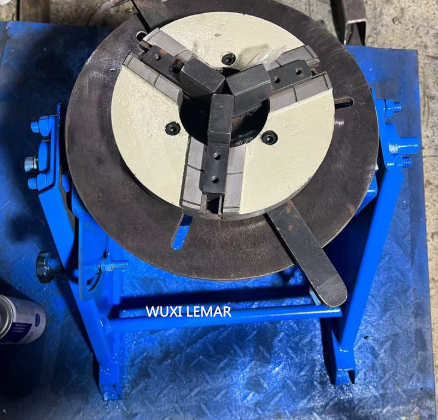

50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Product Introduction
This 50kg mini welding positioner is lightweight portable welding auxiliary equipment, specially designed for small workpiece processing. It features compact size and flexible movement, ideal for small workshop daily welding work.
Adopts stable drive structure and stepless speed regulation, running smoothly with low noise. It can rotate and tilt workpieces freely, helping workers finish circumferential welding quickly and easily.
- Body Material: Thickened high-strength carbon steel, solid integrated frame, high rigidity, stable structure and anti-deformation
- Drive Treatment: Precision gear drive assembly, smooth transmission, low noise and long service life
- Running Accuracy: Stable rotating balance, accurate tilting positioning, ensure uniform welding seam effect

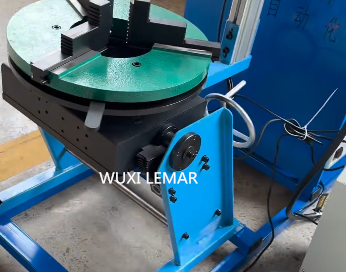

- Multi-angle Design: Support 360° horizontal rotation and electric tilting angle adjustment, flexible workpiece placement
- Speed Control: VFD stepless speed regulation, wide speed range, easy adjustment to meet different welding processes
Technical Specifications
| Model | BWJ-05 | Input power | AC220V |
|---|---|---|---|
| Horizontal loading | 50KG | Vertical loading | 25KG |
| Work table diameter | 315mm | Work table height | 340mm |
| Rotate speed | 0.5-5rpm | Rotate motor | 120W |
| Flip angle | 0-90° | Flip mode | Manual |
| Suitable chuck | KP-65/125/200/300 | Warranty | 1 year |
Product Production Process
- Raw Material Cutting: Adopt high-quality steel plate raw materials, cut materials accurately according to drawing standards
- Integral Welding: Integrate frame welding, conduct stress relief treatment to avoid structural deformation
- Precision Machining: Process core rotating parts via CNC machining to ensure assembly precision
- Drive Assembly: Install reducer, motor and frequency converter, complete internal wiring layout
- Debugging Test: Carry out no-load running, speed test and load bearing test one by one

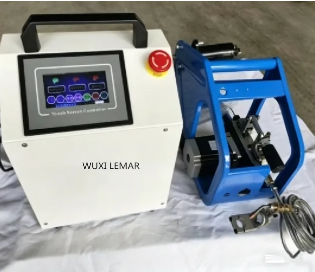

Product Configuration
| Standard Configuration | Optional Configuration |
|---|---|
| High-strength carbon steel main body, anti-deformation | VFD stepless speed regulation system |
| Standard motor and reducer drive system | Handheld remote control pendant |
| 360° rotation + fixed angle tilting | Foot pedal control switch |
| Standard welding table / chuck | High-precision positioning brake device |
| Wired control panel | Customized fixtures for different workpieces |
| Anti-rust painting surface treatment | Waterproof & high-temperature resistant parts |
Product Packaging
Frequently Asked Questions
Q: What is the rated load of 50kg welding positioner?
A: Its safe bearing capacity is 50kg, specially suitable for various small workpieces welding processing.
Q: Can this mini positioner adjust rotating speed freely?
A: Yes, it supports VFD stepless speed regulation, runs smoothly and keeps stable rotating speed.
Q: What angle can this welding positioner tilt?
A: It can realize 360° horizontal rotation and 0-120° electric tilting for omnidirectional welding.
Q: Is it convenient to operate this light duty positioner?
A: Simple control design, easy to start and adjust, labor-saving and high working efficiency.
Q: What kinds of workpieces is it mainly used for?
A: Widely used for small pipes, hardware parts, small cylinders and other miniature workpieces welding.
