Direct Sales Low-Priced 3D Welding Table D28 series with Accessories
Price:
500-1000 USD
MOQ:
1 PCS
Delivery Time:
15-20 work days
Brand:
WUXI LEMAR
Product Description
Direct Sales Low-Priced 3D Welding Table D28 Series with Accessories
Product Overview
The 3D Welding Table D28 series is a precision device used in welding processes, designed for automated and precise welding operations. Equipped with a three-dimensional motion control system that moves freely on multiple axes, it accommodates workpieces of various shapes and sizes. This equipment enhances welding efficiency and accuracy, making it ideal for manufacturing, automotive, and aerospace industries.
Product Specifications
| No. | Size (mm) | Height (mm) | Material |
|---|---|---|---|
| 1 | 4000x2000 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 2 | 3000x2000 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 3 | 3000x1500 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 4 | 2500x2000 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 5 | 2500x1500 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 6 | 2000x2000 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 7 | 2400x1200 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 8 | 2000x1500 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 9 | 1500x1500 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 10 | 2000x1000 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 11 | 1200x1200 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 12 | 1200x1000 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 13 | 1000x1000 | 200 | Q355/HT300 Cast iron/Stainless steel |
| 14 | 1000x800 | 200 | Q355/HT300 Cast iron/Stainless steel |
Besides the above dimensions, custom sizes are available upon request.

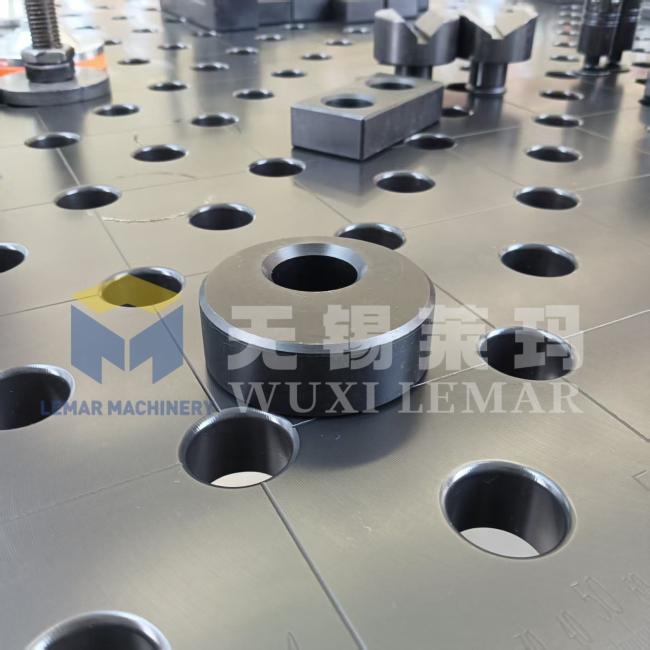

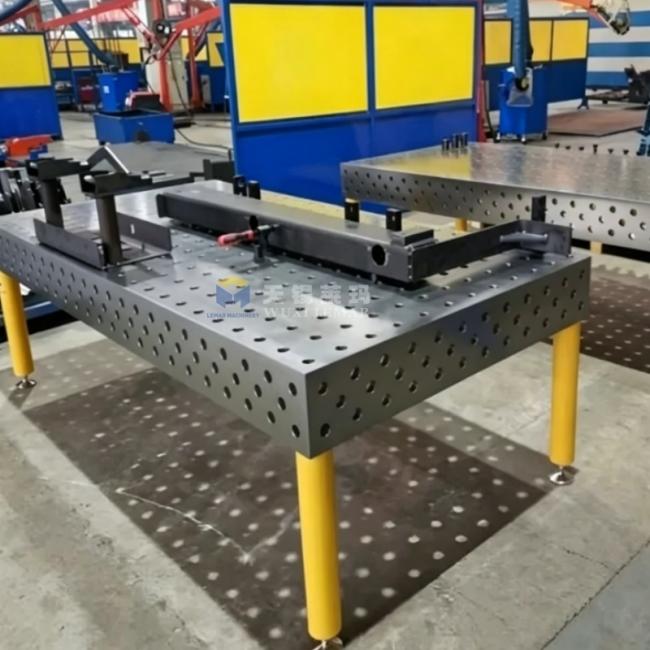

Actual Product Photos
Core Strengths
- Three Dimensional Flexibility: Five-face system with X/Y/Z three-axis arbitrary positioning, enabling complex workpieces to be clamped in one go
- High Precision: Hole spacing ±0.05mm, flatness ≤0.1mm/m, repeat positioning accuracy ±0.03mm, ensuring welding consistency
- High Efficiency: Modular fixtures enable quick clamping/disassembling without marking or welding fixtures, reducing changeover time by over 80%
- High Durability: Welding table nitriding surface HRC 42-52, wear-resistant, rust proof, slag resistant, with lifespan of 10+ years
- Strong Universality: Suitable for carbon steel, stainless steel, aluminum alloy, covering all scenarios from small to heavy structural components
Structure and Load-Bearing Capacity
Standard five-sided 3D structure (tabletop + D28 holes evenly distributed on all sides) enables positioning and clamping at any position in three-dimensional space. Internal reinforcement design provides standard load-bearing capacity of 1-3 tons/square meter, with heavy-duty models available for higher capacity requirements. The 3D welding table can be equipped with adjustable feet, movable feet, or lifting feet to accommodate different workshop floors and workstations.
Core Values and Customer Benefits
- Cost Reduction and Efficiency Improvement: Replaces traditional specialized fixtures, reduces changeover time by over 80%, significantly improves production efficiency for multiple varieties and small batches
- Stable Accuracy: Unified hole system standards reduce manual marking errors, ensure high dimensional consistency of welded products, and significantly lower rework rates
- Flexible Universal: One set of worktable and accessories adapts to most welding needs for steel structural components, engineering machinery components, automotive frames, reducing tooling investment
Delivery and After-Sales
WUXI LEMAR supports standard specifications for spot delivery. Customized sizes/configurations have delivery times confirmed based on order quantity and specifications (regular customization cycle: 15-30 days). We provide free tooling solution design, recommending workbench specifications and accessory configurations based on customer workpiece size and process requirements. Products include warranty service with repair/replacement for non-human factor quality issues, plus long-term accessory supply.
Factory direct, price-friendly: Direct Sales Low-Priced 3D Welding Table D28 series with Accessories. Precision-engineered, fully customizable, and ready to elevate your welding workflow. Reach out today for your personalized quote!
