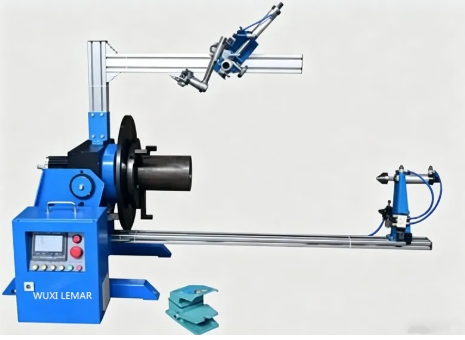

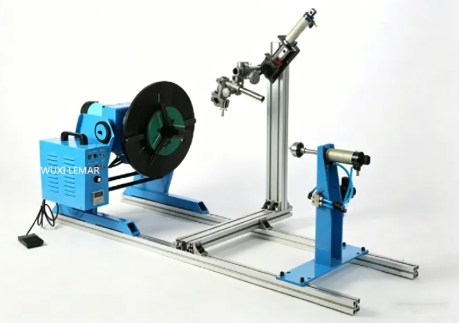

30kg Tilting Welding Positioner Small Rotary Welding Turning Table for Workpiece Circumferential Welding
This 30kg small tilting welding positioner is compact rotary welding equipment designed for small hardware, pipe fittings, and flanges. It supports 360° table rotation and 0-120° tilting, with variable frequency stepless speed control. Widely used for circumferential seam welding of tiny workpieces, it's ideal for small workshops and maintenance factories.
| Parameter | Specification |
|---|---|
| Rated Load | 30kg |
| Tilting Range | 0°~120° |
| Rotation Mode | 360° stepless speed regulation |
| Standard Chuck | 160mm three-jaw chuck |
| Control | Control box + foot pedal |
| Working Voltage | 220V/380V customizable |
| Application | Small pipe, flange, hardware welding |
- Ultra-compact size, small floor space, suitable for small workshop and desktop use
- Cast iron base design, anti-vibration, stable running without shaking
- Stepless variable speed, uniform rotation, no welding ripple
- Dual control of foot pedal and manual box, flexible operation
- Low noise, low failure rate, supports long-time continuous work
- Widely compatible with TIG, MIG, MMA welding equipment
Widely used for small flange welding, pipe fitting circular welding, stainless steel hardware parts, valve components and metal craft processing. Perfect for small processing factories, maintenance workshops and personalized welding production.
- Place the positioner on horizontal ground and fix the base
- Connect standard power supply and test control system
- Adjust rotation speed and tilting angle freely
- Load test workpiece to check running stability
- Match welding machine parameters to complete formal production
This 30kg small welding positioner adopts worm gear reduction drive and variable frequency control system. It realizes 360° uniform rotation and 0°-120° tilting adjustment. The equipment steadily drives small workpieces to rotate at constant speed, matching welding torches to complete high-precision circular seam welding, effectively improving welding consistency and automation level.
