Universal D28 3D Welding Table Compatible All Standard Welding Clamps
Price:
500-1500 USD
MOQ:
1 PCS
Delivery Time:
15-25 work days
Brand:
WUXI LEMAR
Product Description

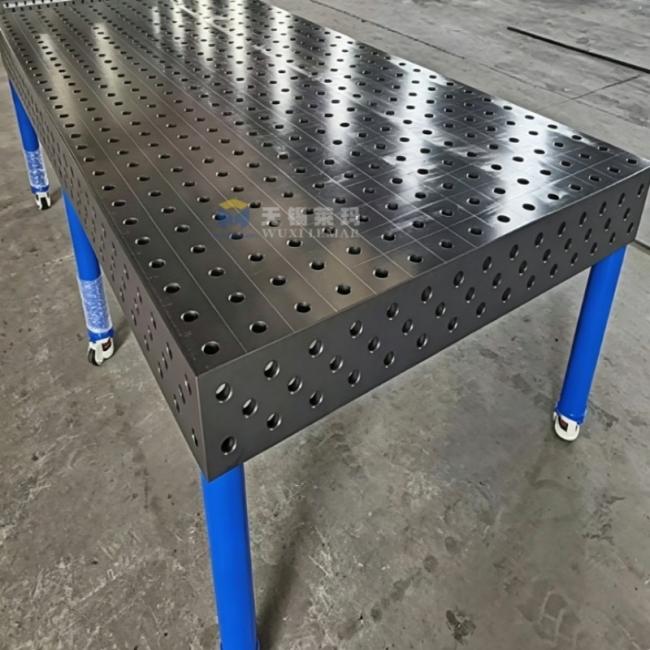

Universal D28 3D Welding Table Compatible All Standard Welding Clamps
Our Universal D28 3D Welding Table is a modular flexible fixturing platform specially designed for industrial welding, frame assembly, metal fabrication and inspection work. Adopting global universal φ28mm hole system with 100×100mm grid spacing, this 3D welding bench perfectly matches all standard D28 welding clamps, positioning blocks, quick locking pins and auxiliary fixtures from mainstream manufacturers worldwide.
Core Technical Specifications
| Item | Standard Parameter | Optional Upgrade |
|---|---|---|
| Hole Spec | D28, hole center distance 100×100mm | Custom coordinate marking |
| Working Sides | 5 sides (top + 4 vertical sides) | Add side baffle guard |
| Table Material | Q355 thick steel plate 25mm | HT300 high-grade cast iron |
| Surface Treatment | Ion nitriding HV650-850 | High-hardness thick nitriding layer |
| Flatness Accuracy | Grade 1: ≤0.1mm/1000mm | Grade 0 Precision: ≤0.05mm/1000mm |
| Static Uniform Load | 2 tons per square meter | Reinforced rib for 5-ton concentrated load |
| Standard Table Height | 630mm | 750-950mm adjustable height legs |
| Edge Process | Full R5 arc chamfer, no sharp edges | Laser engraved customer logo |
| Certification | CE, ISO9001 | Full English inspection report |
Core Advantages
- Flexible and modular design eliminates the need for custom-made tooling: A welding table combined with standard fixtures allows for quick reconfiguration to accommodate different workpieces, whereas traditional welding methods require expensive, dedicated jigs for each product.
- 3D multi-angle positioning: A five-sided hole grid enables spatial clamping, allowing chassis, frames, and complex tubular parts to be positioned and welded in a single setup, thereby minimizing errors caused by repeated repositioning.

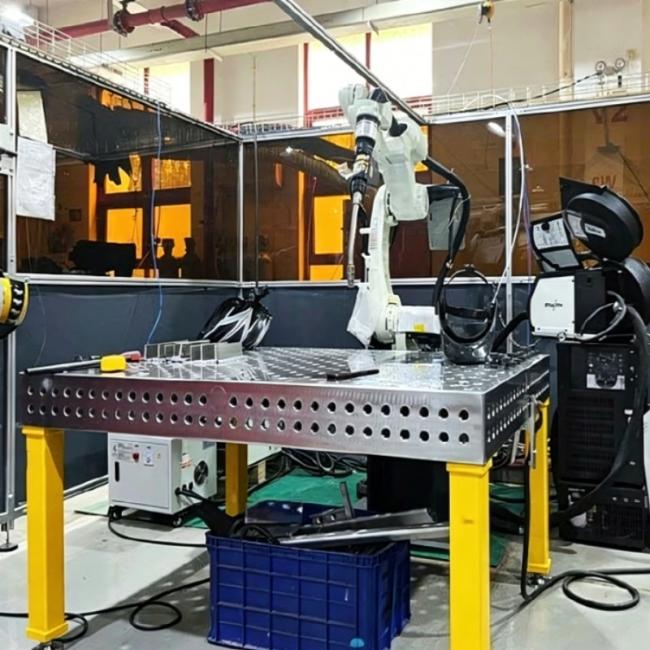

- High precision and consistent welding dimensions: Ideal for mass production while ensuring workpiece interchangeability; the robotic automated welding workstation comes standard with a precision base table.
- Exceptional versatility: Compatible with all standard D28 fixtures and interchangeable with existing tooling, making it suitable for workshops handling diverse product lines.
Support Leg Systems
- Standard Fixed Leveling Legs (Included as Standard): Thick square tube with rubber leveling feet, ±30mm fine adjustment for uneven ground.
- Height Adjustable Telescopic Legs: 750-950mm working height for ergonomic operation.
- Mobile Caster Legs with Brake: Easy workshop transfer without forklift, lock firmly during welding.
- Heavy Fixed Base Legs: Pre-drilled expansion bolt holes for robot workstation permanent fixing.
Why Choose Our D28 3D Welding Table?
VS Import German Brand D28 Tables
100% same D28 standard hole system, fully interchangeable clamps; same nitriding hardness, only 40% of import price, shorter lead time and accessible spare parts supply.
VS Low-Cost Domestic Welding Tables
Our table: Double stress relief, thickened reinforcement ribs, complete ion nitriding, ±0.03mm hole precision, service life 8-12 years
Cheap competitors: No aging treatment, thin ribs, simple paint only, large hole tolerance, deformed within 1-2 years, frequent pin jamming and scrapped workpieces
Cheap competitors: No aging treatment, thin ribs, simple paint only, large hole tolerance, deformed within 1-2 years, frequent pin jamming and scrapped workpieces
Daily Maintenance Guide
- Daily: Clear welding slag with shovel, wipe hole debris
- Weekly: Apply anti-rust oil on lock pins to prevent sticking
- Semi-annually: Recheck flatness and re-level support legs
- Forbidden: Plasma cutting directly on table, heavy workpiece single-point long-term extrusion
Interested in our Universal D28 3D Welding Table Compatible All Standard Welding Clamps?
Send us your workpiece size and production demand, we will provide customized layout drawing & full fixture quotation within 24 hours.
Send us your workpiece size and production demand, we will provide customized layout drawing & full fixture quotation within 24 hours.
