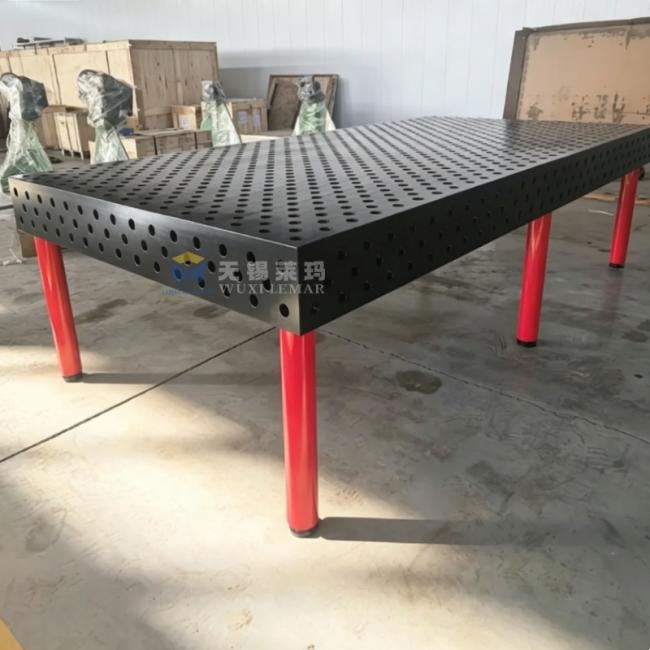

D28 3D Welding Table with 28mm Holes for Accurate Fixturing
Upgrade your welding workshop with the D28 3D Welding Table with 28mm Holes for Accurate Fixturing. Designed for accurate, repeatable fixturing, this five-sided 3D welding table uses the industry-standard Φ28mm hole system, allowing you to assemble custom clamping solutions within minutes. Thanks to precise machining, stress relief and wear-resistant nitriding finish, the table resists deformation and weld spatter adhesion. Swap workpieces rapidly without custom jig fabrication, boost production efficiency and improve welding consistency for manual and robotic welding applications.
| Table Dimension (L × W) | Standard Working Height | Table Thickness | Uniform Load Capacity | Splicable |
|---|---|---|---|---|
| 1000 × 800 mm | 750 mm / 800 mm | 25 mm | 2000 kg/㎡ | Yes |
| 1000 × 1000 mm | 750 mm / 800 mm | 25 mm | 2000 kg/㎡ | Yes |
| 1200 × 800 mm | 750 mm / 800 mm | 25 mm | 2000 kg/㎡ | Yes |
| 1500 × 1000 mm | 750 mm / 800 mm | 25 mm | 2500 kg/㎡ | Yes |
| 2000 × 1000 mm | 750 mm / 800 mm | 25 mm | 2500 kg/㎡ | Yes |
| 2400 × 1200 mm | 750 mm / 800 mm | 25 mm | 2500 kg/㎡ | Yes |
| 3000 × 1500 mm | 750 mm / 800 mm | 25 mm | 3000 kg/㎡ | Yes |
| 4000 × 2000 mm | 750 mm / 800 mm | 25 mm | 3000 kg/㎡ | Yes |
- Rapid changeover: setup time for new product tooling reduced by over 70%
- Stable dimensional accuracy, effectively controlling welding tolerances and minimizing rework
- 5-sided 3D structure, eliminating clamping blind spots for complex spatial geometries
- Global standard D28 hole system, ensuring cross-brand compatibility of accessories
- Nitrided welding table resistant to weld spatter and corrosion, offering a long service life
1. High-Quality D28 Welding Table (Our Standard)
Comprehensive stress-relief aging + monolithic 5-face CNC milling + full-surface nitriding + strict tolerances; ensures stable precision during long-term use and high resistance to hole wear.
2. Low-Cost, Inferior Table (Competitor Products)
Milling limited to the top surface with minimal side-wall processing; no vibration aging; surface blackening only (no nitriding); loose hole tolerances; prone to deformation, slag adhesion in holes, and rapid loss of precision after six months of use.
Want more details about the D28 3D Welding Table with 28mm Holes for Accurate Fixturing? Send us your size requirements and application scenarios. We provide custom specifications, matching fixture packages and reliable bulk pricing. Drop your inquiry, and our sales engineer will reply to you within 24 hours.
