D16 3D Welding Table with 16mm Hole and Grid System

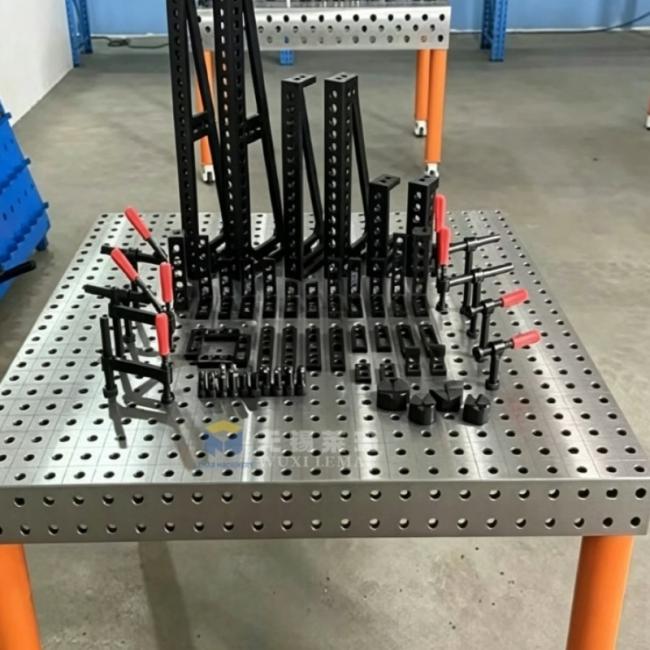

Our D16 3D Welding Table with 16mm Hole and Grid System is a five-sided modular flexible welding fixture platform built for precision small-to-medium fabrication. Featuring standard 50×50 mm grid system and φ16 H7 precision-reamed locating holes, this 3D welding table enables full X-Y-Z multi-direction positioning and clamping across the top and four side working faces.
Manufactured from stress-relieved Q355 steel or HT300 cast iron with plasma nitrided surface treatment, it delivers outstanding flatness, wear resistance and anti-spatter performance. Fully compatible with the complete range of D16 modular accessories, multiple tables can be connected to expand working area.
Ideal for sheet-metal works, tubular assemblies, prototype development and robotic welding cells with high repeat-accuracy requirements. Custom sizes and support frames are available upon request.
| Inspection Item | Grade 1 (Standard Welding Table) | Grade 0 (Robotic Welding Table) |
|---|---|---|
| Table Flatness | ≤0.1 mm /1000mm | ≤0.05 mm /1000mm |
| Grid Hole Center Distance | ±0.05 mm | ±0.03 mm |
| Perpendicularity of Side to Top Surface | ≤0.1 mm /200mm | ≤0.05 mm /200mm |
| Parallelism of Adjacent Holes | 0.06 mm /1000mm | 0.04 mm /1000mm |
| Side Face Flatness | 0.12 mm /1000mm | 0.07 mm /1000mm |
- 5-sided fully machined 3D hole system for X-Y-Z multi-direction clamping
- 50×50 mm dense grid & H7 reamed φ16 holes for high-precision fine positioning
- Stress-relieved Q355 steel / HT300 cast iron base to prevent long-term deformation
- Plasma nitrided surface: anti-spatter, wear-resistant, easy spatter cleaning
- 100% compatible with full set standard D16 modular fixturing accessories
- Quick fixture re-setup, lower custom fixture cost for multi-variant production
- Support multi-table splicing to enlarge working area for large fabrications
- Perfect fit for manual welding and robotic welding workstation
- Custom sizes and support structures available
Steel plate cutting → Welding of bottom reinforcing ribs → Overall stress-relief annealing (to eliminate internal welding stresses and prevent subsequent warping/deformation) → CNC 5-sided milling of all working surfaces → Drilling and reaming of D16 positioning holes (reaming ensures a hole diameter tolerance of φ16.065-16.149 mm) → Engraving of a 50×50 mm grid scale on the table surface → Plasma nitriding treatment → Final precision inspection (CMM inspection of flatness, hole spacing, and perpendicularity).
Resin sand casting → Initial annealing for casting stress relief → Rough machining → Shot blasting → CNC 5-sided precision machining, hole reaming, and grid engraving → Plasma nitriding → Full CMM inspection prior to dispatch.
