3000kg Welding Positioner for Metal Fabrication & Vessel Seam Welding

This 3-ton welding positioner is heavy-duty welding auxiliary equipment, specially designed for medium and large circular workpieces such as pressure vessels, large flanges, pipe spools, and cylindrical tanks. It rotates and tilts workpieces continuously to achieve flat welding position, effectively avoiding overhead and vertical welding. Widely used in pressure vessel factories, pipeline manufacturing, metal fabrication, and engineering machinery workshops, it significantly reduces labor intensity while improving weld seam consistency and quality.

• Horizontal rated load: 3000kg, vertical load: 1500kg for stable bearing of heavy workpieces
• Thickened integral steel frame with stress relief treatment ensures long-term operation without deformation
• Large T-slot rotary table provides flexible installation for fixtures, chucks, and tooling
• 0-90° electric tilting angle meets multi-angle welding requirements
• Can cooperate with welding torch stand to achieve automatic circumferential seam welding
• Equipped with conductive device option to prevent welding cable twisting during rotation

Suitable for circumferential seam welding of the following workpieces:

• Pressure vessels, stainless steel storage cylinders
• Large flanges, pipe spools and pipeline fittings
• Tank heads, elbows and rotary mechanical parts
• Engineering machinery circular components
• Boiler accessories, metallurgical equipment parts

The heavy-duty positioner maintains uniform rotation of heavy workpieces during operation, allowing welders to consistently work under flat welding conditions. Production benefits include:

• Reduced welding operation difficulty
• Smooth and aesthetically pleasing weld appearance
• Lower welding defect rate
• Improved overall workshop welding efficiency

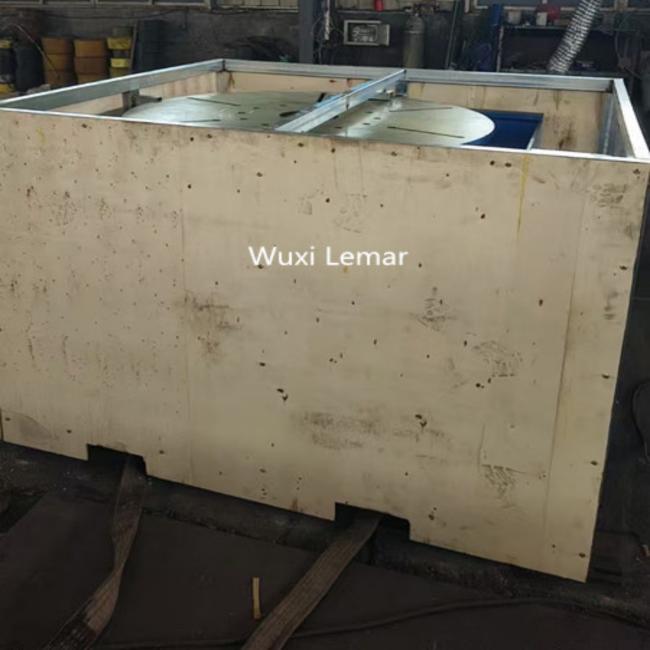

• Packing: Standard export plywood wooden case / aluminum frame packing
• Available Trade Terms: EXW / FOB / CIF / DDP
• Customized configuration support: welding torch stand, wireless remote control, conductive slip ring

A1: Horizontal rated load is 3000kg, vertical load 1500kg. The load capacity is related to workpiece gravity center. If the center is far away from the table surface, the allowable load will decrease accordingly.

A2: Yes. The T-slot rotary table supports installation of large-size self-centering welding chuck. We can supply the chuck as an optional accessory.

A3: Features VFD frequency conversion control with rotating speed 0.05-0.5rpm stepless adjustable, providing stable performance for slow circumferential welding.

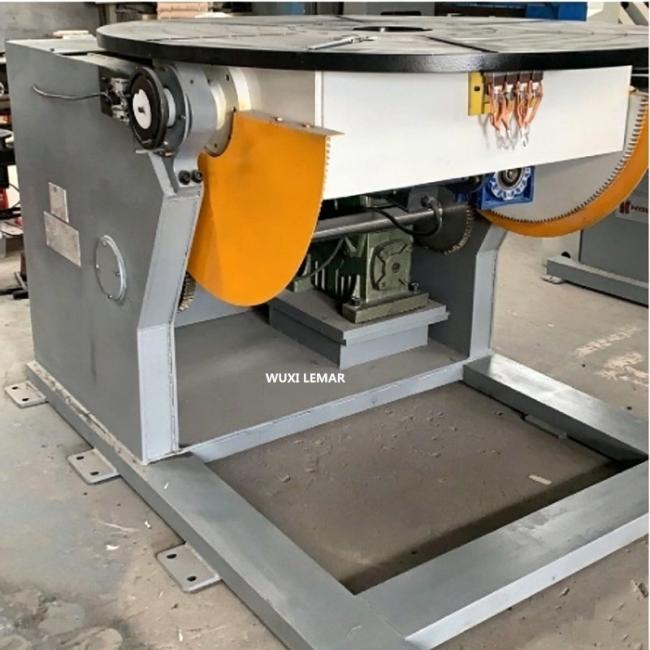

A4: Utilizes semicircular gear + worm gear self-locking structure. After adjusting tilt angle within 0-90°, the machine remains securely fixed in position.

A5: Yes. Optional welding torch stand, conductive slip ring and PLC control system support connection with automatic welding equipment to form a complete welding workstation.

A6: Yes, CE certification is available for this heavy welding positioner.
