50kg Welding Positioner, Rotary Welding Turntable with 0-90° Tilting, Optional Chuck for Pipe & Flange Welding
The 50kg welding positioner is light-duty welding auxiliary equipment designed for circumferential welding applications. The worktable features electric tilting from 0 to 90° with stepless rotation speed adjustment, positioning workpieces in the ideal flat welding position to reduce welder fatigue and improve weld uniformity.
Suitable for flanges, short cylinders, pipes, and small pressure vessels. Compatible with MIG, TIG, MMA, and laser welding processes. Optional accessories include 3-jaw chuck, torch holder, and foot pedal. Can be integrated with small welding robots. Widely used in sheet metal workshops and equipment maintenance shops. Pre-tested before delivery, stock available, customization supported.
| Item | Specification |
|---|---|
| Model | WP-50 |
| Rated Horizontal Load | 50kg |
| Rated Vertical Load | 25kg |
| Table Diameter | 300mm (customizable) |
| Tilting Range | 0~90° Electric Tilting |
| Rotation Speed | 0.5~6r/min stepless adjustable |
| Motor Power | 120W |
| Power Supply | AC220V/110V, 50/60Hz |
| Optional Parts | 3-jaw chuck, torch holder, foot pedal |
| Welding Process | MIG/TIG/MMA/Laser Welding |
- Welding Table: 300mm diameter rotary worktable with T-slots for fixture mounting, customizable center hole for through-shaft workpieces.
- Tilting Mechanism: Worm gear and worm drive with self-locking function, ensures stable positioning at any angle from 0 to 90°.
- Rotation Drive: Gear motor with VFD control, provides smooth start/stop and stepless speed regulation.

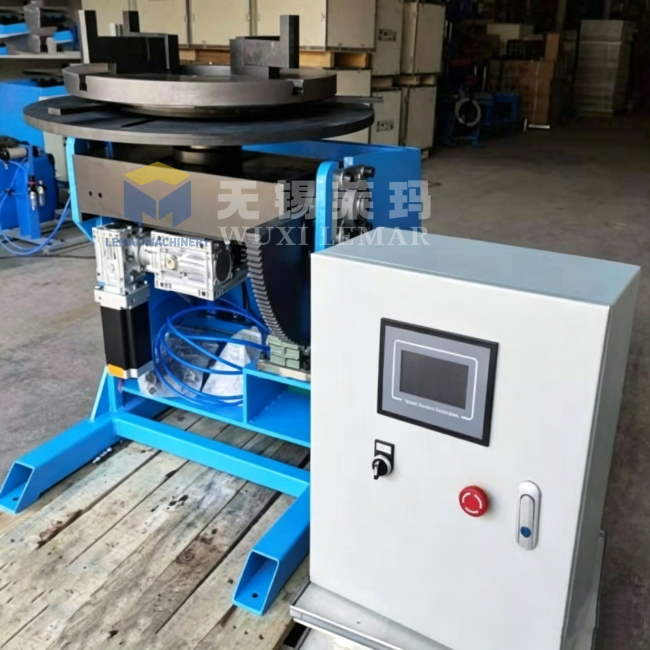

- Control Box: Integrated electrical cabinet with speed regulator, forward/reverse switch and emergency stop button.
- Foot Pedal: Hands-free start/stop control, allows welder to focus on welding operation.
- Base Frame: Heavy-duty welded steel structure, stress-relieved for high rigidity and long-term stability.
- Pressure vessel parts fabrication

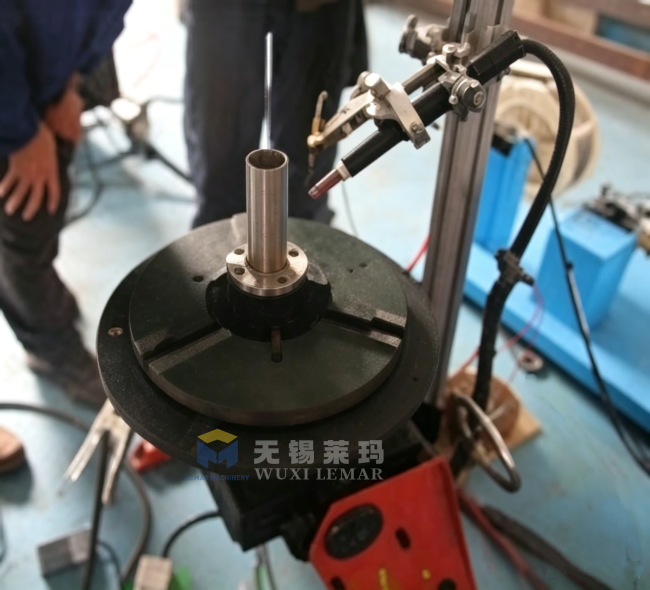

- Pipe & flange manufacturing
- Hardware and sheet metal processing
- Valve production
- Small engineering component welding
- Welding test sample preparation
- Automotive component welding

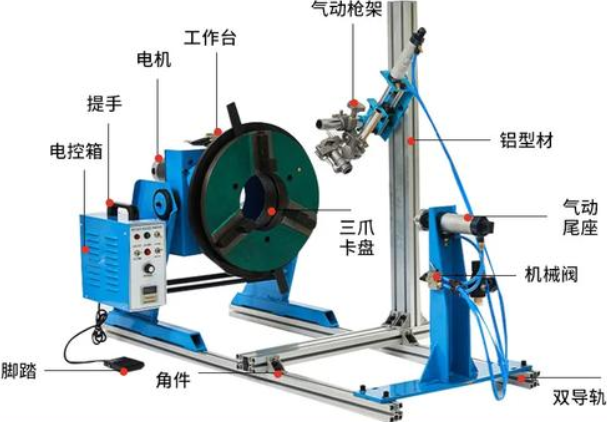

| Accessory | Description |
|---|---|

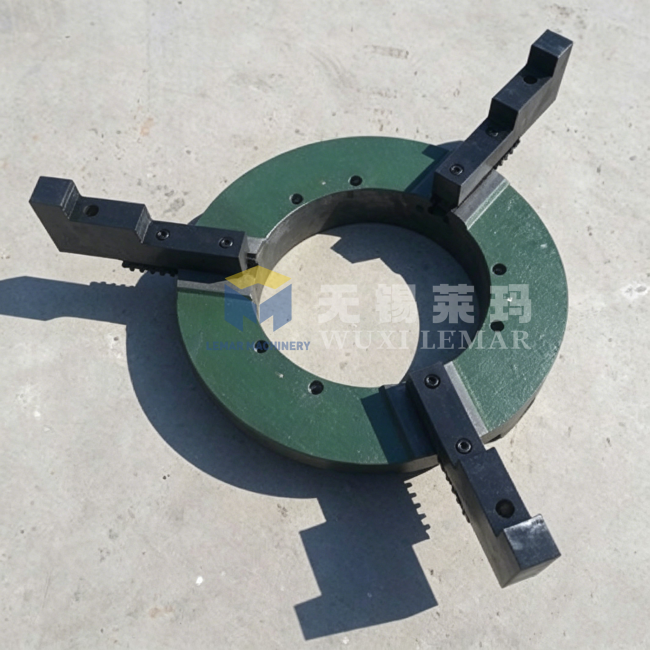

| 3-Jaw Chuck | K11-200 / K11-250 manual chuck for quick workpiece clamping |
| Through-Hole Chuck | For long shaft or pipe passing through the table center |
| Pneumatic Chuck | Automatic clamping for mass production lines |

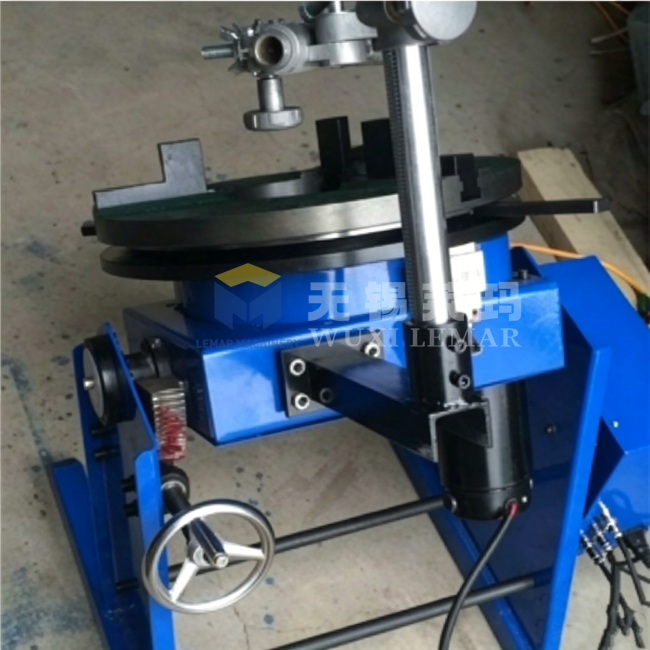

| Torch Holder | Adjustable welding gun bracket for fixed-position welding |
| Foot Pedal | Hands-free start/stop controller |
| Robot Interface | Signal interface for coordination with welding robots |
| Extended Table | Larger diameter table for oversized workpieces |
