10 Ton Self-Aligning Welding Rotator for Tank & Pipe Welding
Price:
500-1000USD
MOQ:
1
Delivery Time:
10-20 work days
Brand:
LEMAR
Product Description

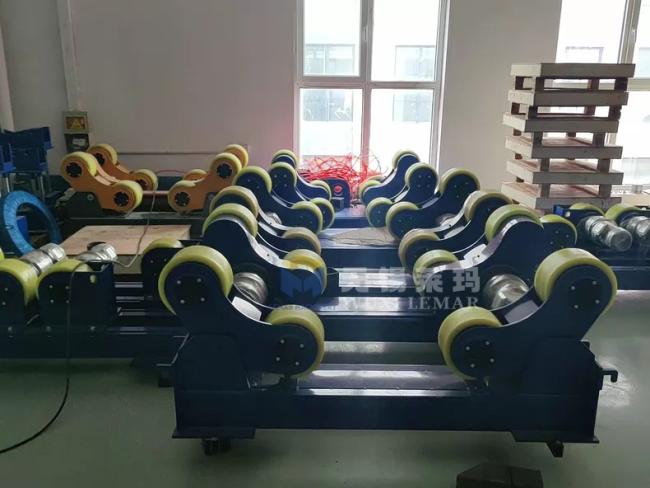

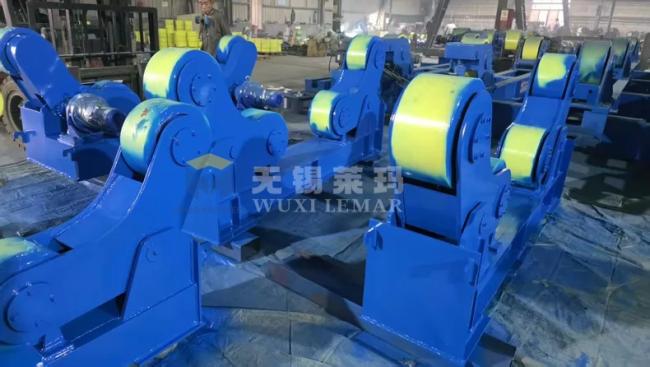

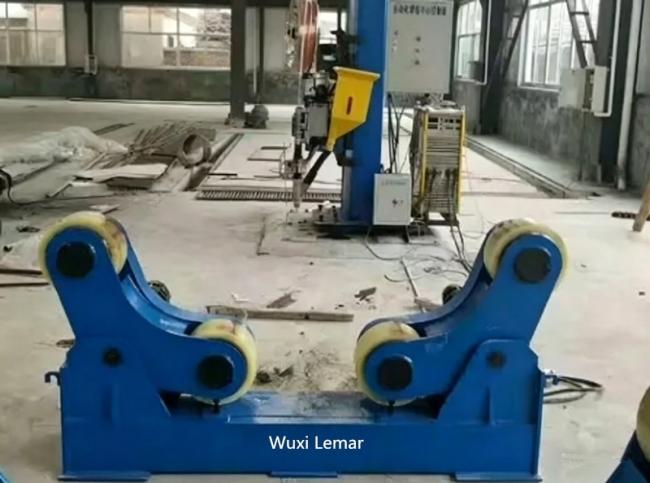

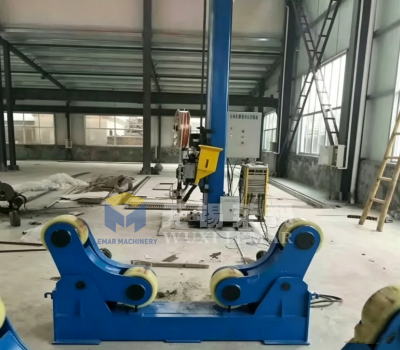

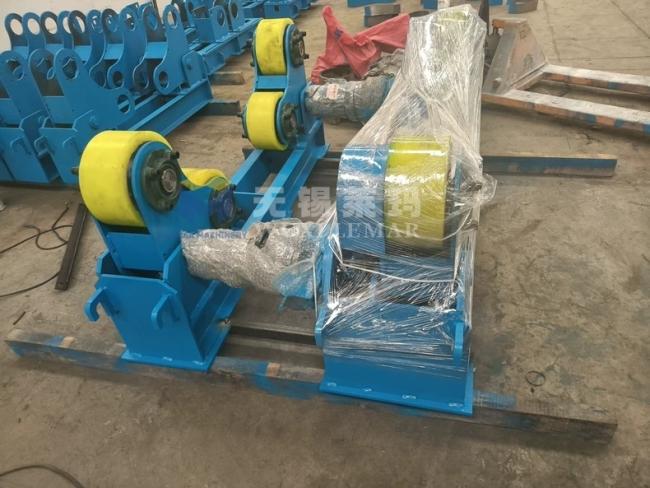

10 Ton Self-Aligning Welding Rotator for Tank & Pipe Welding
Product Overview
The 10 Ton Self-Aligning Welding Rotator is specially designed for circumferential seam welding of cylindrical workpieces like tanks, pressure vessels and pipes. Featuring automatic centering rollers, it can adapt to different cylinder diameters without manual adjustment. Equipped with VFD speed control and anti-creep device, the machine ensures steady rotation and prevents workpiece axial drifting. Adopting thickened steel frame and high-performance PU/steel rollers, this rotator greatly improves welding efficiency and reduces labor cost. Widely used in chemical, petroleum, boiler and steel structure industries.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZTG-10 |
| Rated Load | 10000kg |
| Adjusting Type | Self-aligning |
| Workpiece Diameter | Φ350-3000mm |
| Roller Material | PU / Steel Optional |
| Rotation Speed | 6-60 m/h, VFD stepless speed |
| Motor Power | 0.37kW*2 |
| Frame Material | Thickened Welded Steel |
| Control Mode | Wired Remote Control Box |
| Certificate | CE, ISO9001 |
| Voltage | 380V / Customizable |
| Warranty | 12 Months |
| Brand | Lemar |
| Origin | Wuxi, China |
Key Advantages
- Automatic centering rollers, no manual spacing adjustment
- Built-in anti-creep structure, effectively prevent workpiece axial drift
- VFD stepless speed, stable rotation with low noise
- Optional PU rollers, protect stainless steel surface from scratches
- Heavy-duty thickened base, resistant to deformation under heavy load
- Simple wired remote control, convenient for welders to operate
Supplier Selection Guide
- Check manufacturing strength: thick steel structure & strict full-load and anti-creep testing before shipment
- Verify complete certifications: CE, ISO, load test reports and operation videos for tender & customs clearance
- Confirm customization ability: rollers, voltage, anti-drift and control system can be adjusted as your demand
- Confirm export experience: familiar with overseas shipping and regional power standards
- Evaluate after-sales service: online technical guidance, spare parts supply and rapid troubleshooting
Packing & Delivery
- Standard export wooden case packaging to avoid sea transport damage
- Secure internal fixing to protect rollers and electric control components
- Flexible shipment: FCL / LCL delivery as customer's requirement
- Short production lead time after deposit confirmed
- Supply packing photos and loading pictures before shipment
Application Scenarios
- Circumferential welding of pressure vessels and chemical storage tanks
- Fabrication and welding of heat exchanger shells and cylindrical pipes
- Manufacturing of boiler barrels and thin-wall tank cylinders
- Wind power small tower section assembly and seam welding
- Cylindrical workpiece polishing, assembling and inspection process
- Steel structure cylinder fabrication for oil & gas industry
Frequently Asked Questions
Q1: What does self-aligning mean for this 10t welding rotator?
A1: Rollers automatically adjust angle to center cylindrical workpiece, no manual spacing adjustment required.
Q2: What workpiece diameter can this 10 ton rotator support?
A2: Standard range Φ350-3000mm, we can customize larger diameter on request.
Q3: PU roller or steel roller, which one should I pick?
A3: PU roller for stainless steel to avoid scratches; steel roller for high temperature & heavy load workpieces.
Q4: Does this rotator have anti-drift function?
A4: Yes, standard built-in anti-creep structure to stop workpiece axial movement.
Q5: What's your speed control mode?
A5: VFD stepless speed regulation, adjustable rotation speed via control box.
Q6: What is your warranty period?
A6: 12 months warranty, lifetime online technical support.
