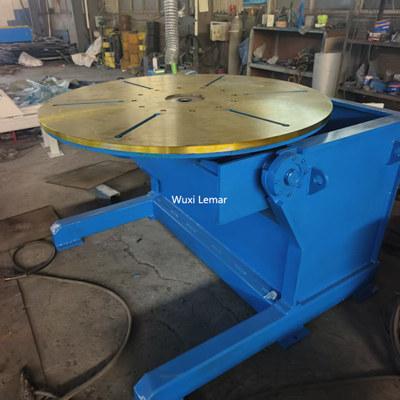

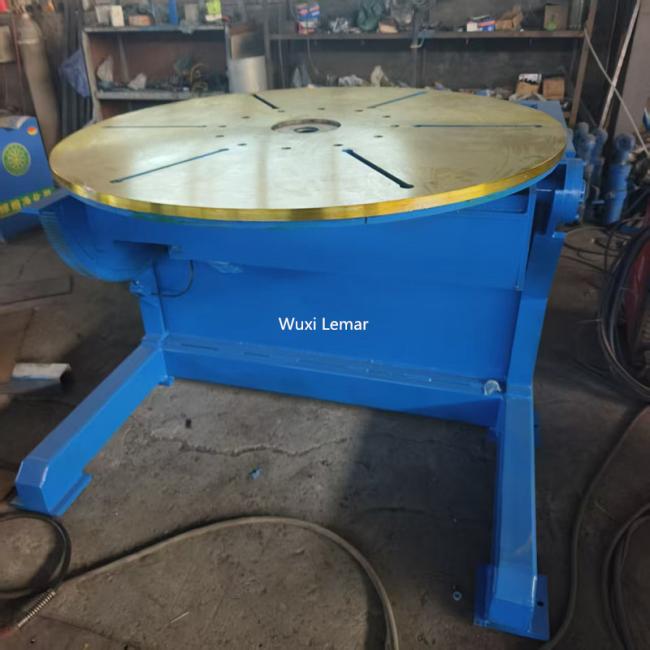

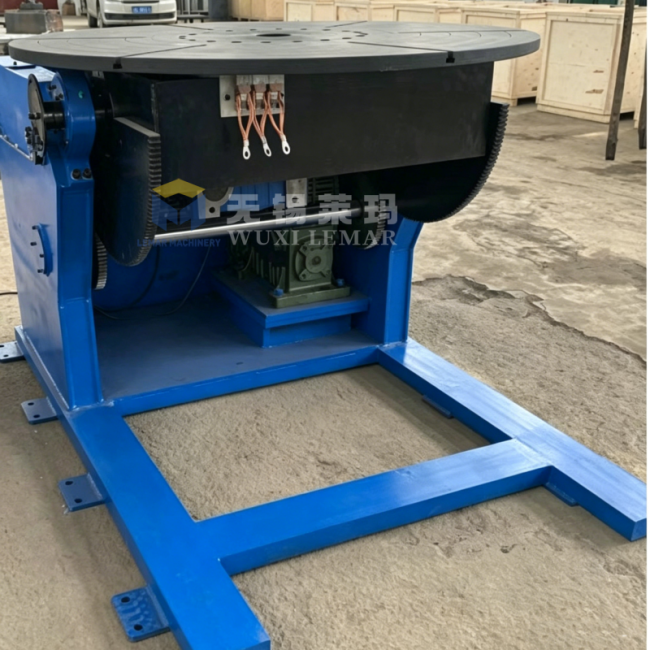

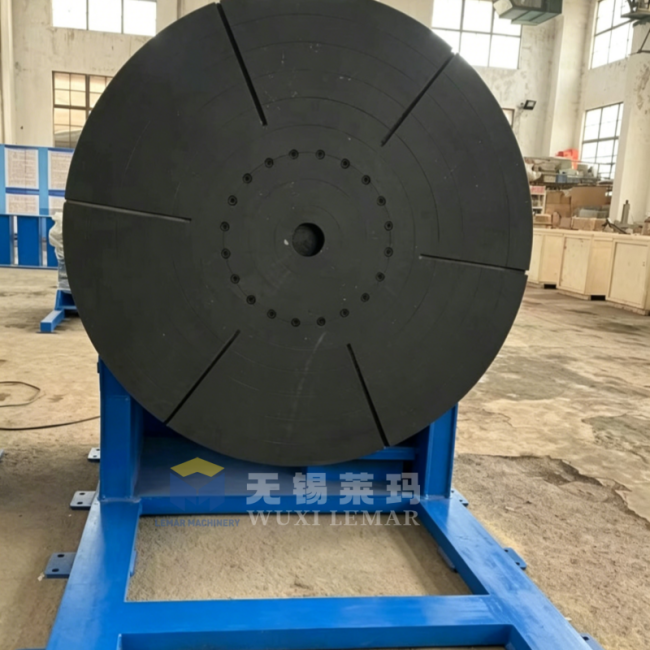

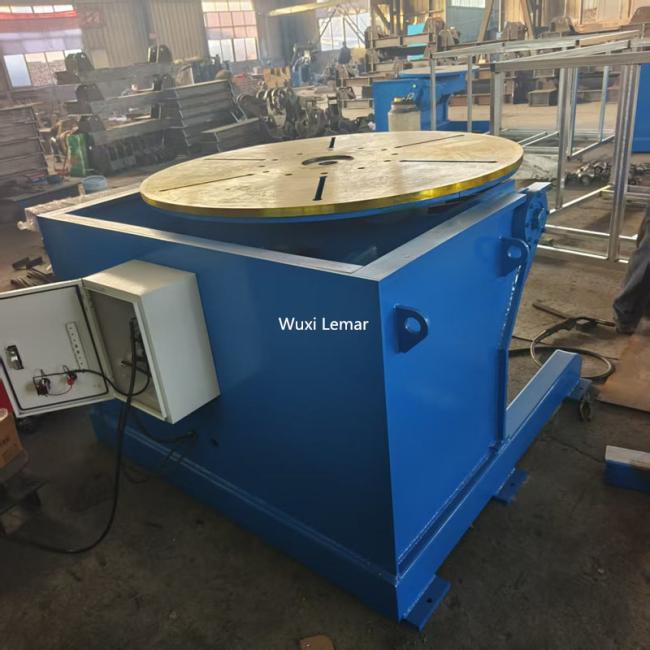

3 Ton Welding Positioner 0-90 Degree Tilting Rotary Welding Table
This 3 ton welding positioner is a compact tilting rotary table designed for medium load circumferential welding applications. It features stepless speed control and can tilt workpieces from 0 to 90 degrees, allowing welders to work at optimal horizontal positions. The stable rotation and reliable tilting structure reduce welding difficulty while improving weld quality. Ideal for metal fabrication workshops working with flanges, pipes, and small pressure vessels.

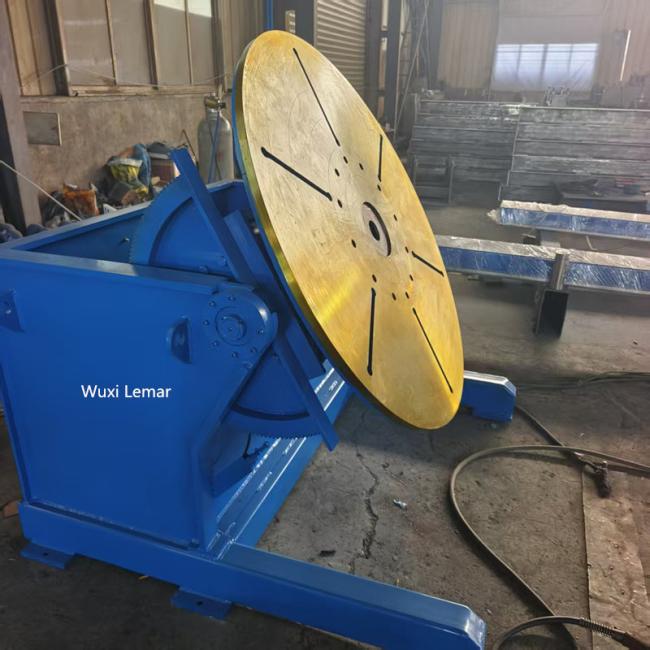

- 0-90° electric tilting for flexible workpiece angle adjustment
- 0.5-15r/min stepless rotating speed for smooth, stable operation
- Heavy-duty cast turntable with high rigidity and strong load capacity
- Emergency stop button for enhanced operational safety
- Simple operation with easy installation and maintenance
- Customizable table size and voltage to meet specific requirements
| Model | 3Ton Welding Positioner |
|---|---|
| Load Capacity | 3000kg |
| Tilting Range | 0 ~ 90° |
| Rotation Speed | 0.5~15 r/min, stepless speed regulation |
| Power Supply | 220V/380V Optional |
| Table Diameter | 600mm (Customizable) |
| Application | Pipe, flange, small vessel circumferential welding |
- Flange and pipe assembly welding
- Small pressure vessel fabrication
- Stainless steel workpiece circumferential welding
- Hardware structural parts welding
- Pump and valve body welding
- Food & pharmaceutical equipment component welding
- Light metal cylinder welding work
- Professional welding equipment manufacturer with mature production technology
- Comprehensive running inspection before shipment to ensure stable performance
- Custom services for table size, voltage, and special fixtures
- Factory direct sales with competitive pricing
- Complete after-sales support with online technical guidance
- Secure plywood packaging suitable for sea transportation
- Q:What is the maximum load capacity?
- A:Rated loading capacity is 3000kg.
- Q:Can we customize the turntable diameter?
- A:Yes, table size can be customized according to your workpiece requirements.
- Q:Is the tilting action electric or manual?
- A:Electric tilting.
- Q:Can we change the power voltage?
- A:220V or 380V can be selected.
- Q:What is your production lead time?
- A:Q:10-20 working days after deposit received.
- Q:How long is the warranty period?
- A:12 months warranty for main parts, with lifelong technical consultation.
Products are packed with waterproof plastic film and solid plywood cases. We support sea freight, land freight, FOB, CIF, and other trade terms. Machines are securely fixed inside packaging to prevent collision damage during transit.
