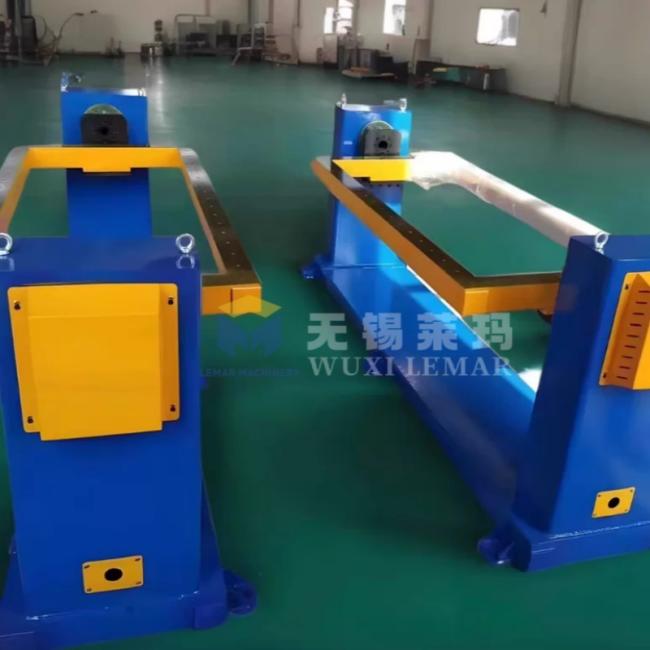

2Ton Head-Tail Welding Positioner, Robot Linkage Type

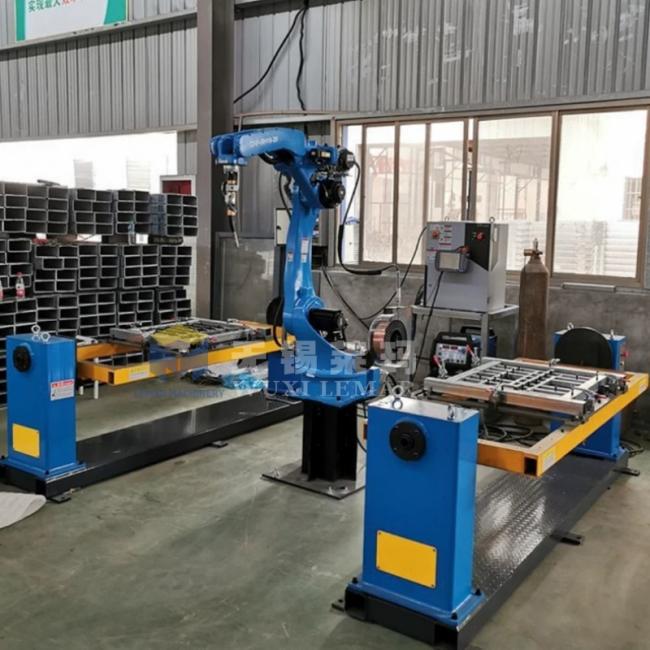

2 ton head-tail welding positioner adopts single-axis servo head and tail structure. It can link with welding robot and work as an external axis for coordinated motion. Ideal for automatic welding of long workpieces, vehicle frames and rectangular components. The headstock is fixed and the tailstock is movable to fit different workpiece lengths. It supports signal interaction and synchronous operation with welding robots, featuring high repeat positioning accuracy. The heavy thick steel frame resists torsion and deformation. It can be matched with mainstream welding robot brands including Yaskawa, KUKA and FANUC for automated welding workstations.

• Synchronous control with welding robot for coordinated interpolation movement, realizing continuous automatic welding and eliminating manual workpiece flipping.
• Separated head and tail design with slidable tailstock, suitable for long beams and frame workpieces of different lengths.
• Servo drive ensures stable operation without crawling at low speed for consistent weld formation.
• Heavy-duty integrally welded frame, anti-deformation under heavy load for long-hour continuous automatic workshop production.
• Standard communication interface compatible with mainstream welding robots. Custom span and center height available.
• Built-in welding ground wire device to protect servo motor from welding current damage.

• Engineering machinery frames robotic welding
• Long steel structural components welding
• Pressure vessel sections welding
• Conveyor racks automatic welding
• Door and window frames robotic welding

• Full load running test before delivery
• Dimensional inspection for all machined components
• Motor and reducer performance testing
• Paint thickness and surface quality check
• Complete test report can be provided

• Custom table size according to workpiece dimension
• Adjustable load capacity based on actual working condition
• Custom control program and signal interface
• Special base structure available upon request
• Custom protection cover optional

A1: Yes, it can serve as robot external axis. Standard communication interface reserved for mainstream robot brands such as KUKA, Yaskawa, Fanuc. Please advise your robot model for matching.

A2: The standard movable tailstock allows free span adjustment. We can customize effective working length according to your workpiece.

A3: ±0.1°, stable for robotic automatic welding and guarantees consistent weld quality.

A4: Thickened welded steel box frame with anti-torsion structure, designed for 2 ton continuous heavy-load workshop operation.

A5: Customization for center height, T-slot faceplate and fixture is available.
