Welding Table D28 for Efficient Workshop Metal Welding Tasks
The D28 welding table is a versatile modular fixturing platform built to streamline routine metal welding operations in general fabrication workshops. Built with stress-relieved carbon steel plate and a standardized D28 hole grid, it enables flexible positioning of metal components during fitting, tack welding, and final welding.
The standalone support legs deliver stable support without cross braces, creating unobstructed workspace underneath the table for easier workpiece handling. The tabletop can be treated with nitriding to gain strong resistance against welding spatter and mechanical abrasion.
This all-purpose worktable removes the need to fabricate dedicated single-use jigs for different metal parts, cutting setup time and raising overall workshop operational efficiency for mixed welding jobs.
We are the original manufacturer of 3D flexible welding tables, with complete in-house machining and surface treatment workshops. We strictly control every production step from steel plate stress relief, precision milling to nitriding processing, to guarantee stable flatness and hole tolerance for each finished table.
We understand varied workshop demands deeply and offer flexible custom sizes and fixture combinations to match your unique welding projects. Our technical team provides one-to-one professional guidance for fixture layout and workpiece positioning solutions.
We adopt strict pre-shipment inspection and record test videos for verification before delivery. We deliver responsive after-sales support and competitive factory direct prices, helping you cut procurement costs and improve your metal fabrication efficiency.
| Parameter | Specification |
|---|---|
| Model | Welding Table D28 |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
Through professional nitriding heat treatment, the table surface achieves exceptional hardness (up to 60 HRC), outstanding wear resistance, and reliable anti-rust performance. No more frequent replacements — one table serves you for years under harsh welding environments.
The 28mm diameter hole grid (100mm spacing) is fully compatible with standard D28 clamping accessories. Position, clamp, and secure workpieces of any shape and size in seconds. From simple brackets to complex structural frames — setups that used to take hours now take minutes.
Designed as a true 3D welding platform, this table supports horizontal, vertical, and multi-angle fixturing. Weld square tubes, angle irons, pipes, and custom profiles with consistent accuracy — every joint aligns perfectly on the first try.

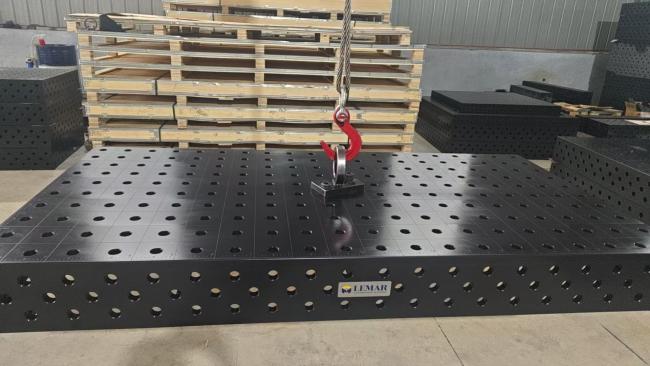

Generous table size provides ample space for large fabrications, batch production, and multi-operator work. The thick solid steel plate maintains perfect flatness (±0.1mm/m) even under heavy load, ensuring dimensional accuracy across every project.
- Structural Steel Fabrication — Frame welding, beam assembly, bracket fabrication
- Pipe and Tube Welding — Square tube, round pipe, angle iron positioning
- Automotive and Chassis Work — Frame jigging, suspension brackets, roll cages
- Machine Manufacturing — Equipment frames, base structures, enclosures
- Agricultural Equipment — Implement frames, brackets, structural components
- General Job Shop — High-mix low-volume production, prototype development
- Training and Education — Welding training centers, vocational schools
If you need a flexible D28 welding table to boost efficiency for your daily workshop metal welding tasks, share your workpiece specifications and workshop layout with our team. Our engineers will recommend suitable table dimensions and matching fixture kits. We provide transparent quotations and professional technical support for your metal fabrication projects. Reach out to us to get your customized solution and elevate your workshop productivity.
