MS3112E14-19P MIL-DTL-26482 Series 1 Connector, Box Mounting Receptacle, 14-19, Pin Contacts
MS3112E14-19P MIL-DTL-26482 Series 1 Connector, Box Mounting Receptacle, 14-19, Pin Contacts
INTRODUCTION:

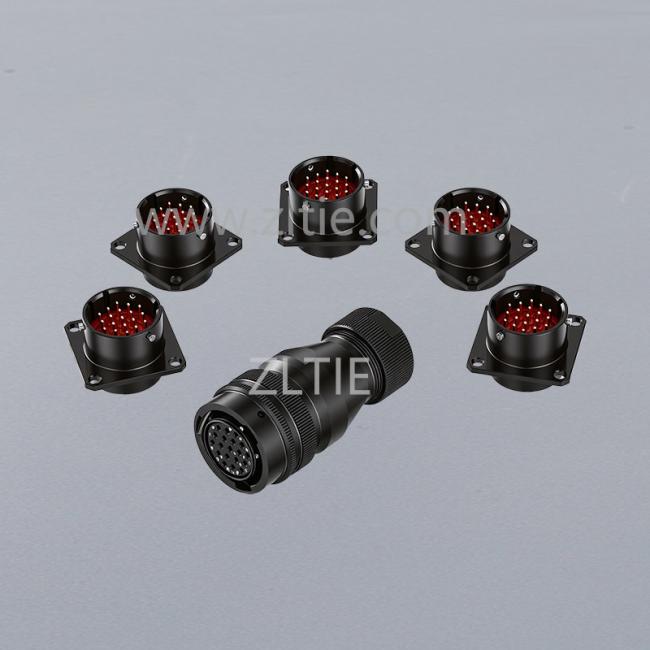

MS3112E14-19P MIL-DTL-26482 Series 1 Connector, a box mounting receptacle with a straight orientation. This rugged connector features a 14-19 contact arrangement with 19 pin contacts, each soldered for a secure connection. Housed in a size 14 aluminum shell with a cadmium and green chromate coating, it offers excellent corrosion resistance. The gold-plated copper alloy contacts ensure optimal conductivity, rated for 600V DC and 7.5A. Designed for harsh environments, it operates in temperatures ranging from -55°C to 125°C.
The 4-hole flange allows easy panel mounting, while the bayonet coupling provides a secure and reliable connection. Ideal for applications requiring a durable and versatile electrical connector.
FEATURES:
- Bayonet coupling mechanism
- High-strength aluminum alloy housing with corrosion-resistant finish
- Synthetic rubber insulators
- Gold-plated copper alloy contacts for optimal conductivity and durability
- Soldered pin contacts for reliable connections
- Panel mount design with 4-hole flange
- IP67 rating
MAIN SPECIFICATIONS:
General Information:
| Part Number: | MS3112E14-19P | |
| Product Type: | MIL-DTL-26482 series 1 Mil-Spec Circular Connector | |
| Series: | MS3112 Box Mounting Receptacle | |
| Connector Type: | Receptacle | |
| Orientation: | Straight | |
| Contact Type: | Pin Contacts | |
| Number of Contacts: | 19 Contacts | |
| Contact Termination: | Solder Cup | |
| Shell sizes: | 14 | |
| Contact Arrangement: | 14-19 | |
| Coupling Method: | Bayonet | |
| Mount Method: | Panel Mount | |

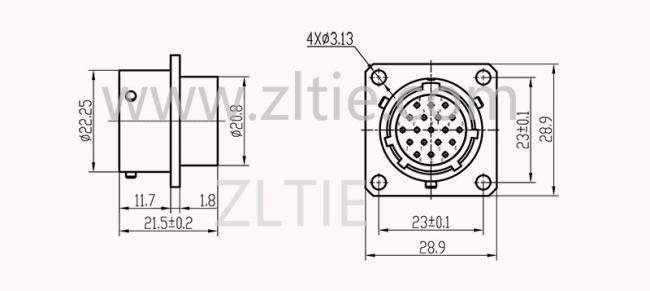

| Mount Feature: | 4-Hole Flange | |
| Wire Gauge: | 20/22/24AWG | |
| Durability: | 500 cycles | |
| Alternate Position: | N – Normal | |
| Shielding performance: | Unshielded | |
| Temperature range: | -55°C to + 125°C | |
| Protection degree: | IP67 |
Materials and Plating:
| Shell Material: | Aluminum alloy | |
| Shell Plating: | Olive Drab Cadmium/Black Over Zinc Plating | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating | |
| Insulator Material: | Synthetic rubber | |
| Grommets and Seals Material: | Synthetic rubber |
Electrical Performance:
| Rated voltage: | 600V | |
| Rated current: | 7.5A | |
| Insulation Resistance: | 5,000 megaohms minimum (at 25°C) | |
| Contact Resistance: | ≤10 mΩ |
