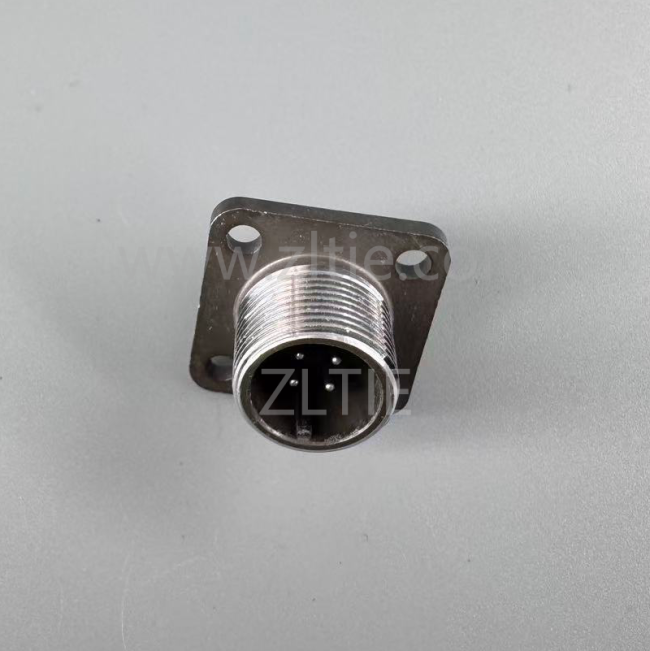

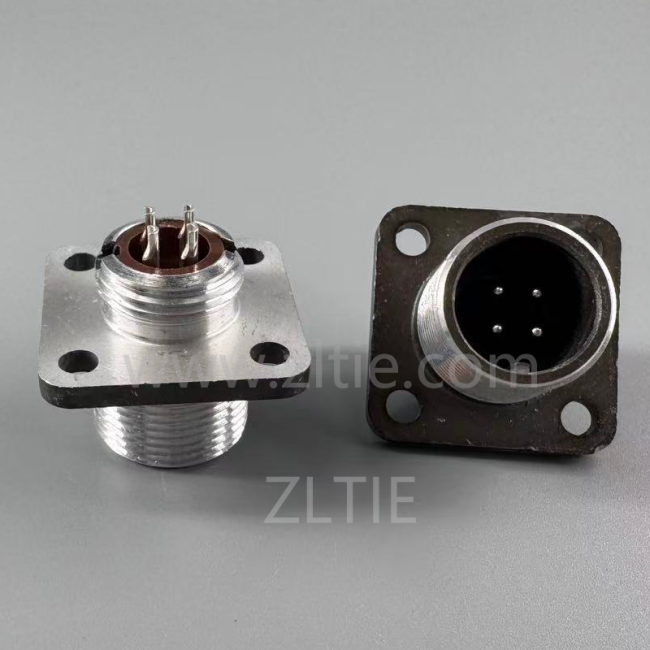

2PM-14 Series 4Pin Male Panel Socket – 2РМТ14Б4Ш1В1В
2PM Series Circular Electrical Connector
Product Information
The 2PM Series Circular Electrical Connector is designed for reliable electrical connection and signal transmission between electronic equipment. Its threaded mating structure provides a secure connection between the cable plug and panel receptacle, while the compact circular design supports practical installation in equipment with limited space.
A key feature of the 2PM Series is its sealed panel receptacle configuration. Glass-sintered sealed versions are available for applications requiring enhanced sealing performance, including vacuum, high-temperature and other demanding environments. The connector is rated for operating temperatures from -60°C to +200°C, providing flexibility for equipment used across a wide temperature range.
The series can also be matched and interchanged with corresponding original components of Russian 2PMT and 2РМДТ series, making it a practical option for replacement, maintenance and equipment integration.
Key Characteristics
-
Threaded connection for secure mating
-
4-pin configuration with Φ1.0 contacts
-
Aluminum alloy die-cast shell with surface oxidation treatment
-
Silver or gold contact finish options
-
Glass-sintered sealed receptacle options
-
Suitable for vacuum, sealed and high-temperature environments
-
Wide operating temperature range from -60°C to +200°C
-
Designed for electrical connection and signal transmission
Technical Specifications
| Item | Specification |
|---|---|
| Series | 2PM |
| Connector Type | Receptacle |
| Shell Size | 14 |
| Orientation | Straight |
| Number of Positions | 4 Pin |
| Contact Size | Φ1.0 |
| Shell Material | Aluminum Alloy |
| Contact Finish | Silver / Gold |
| Fastening Type | Threaded |
| Rated Current | 5A |
| Rated Voltage | ≤700V AC |
| Operating Temperature | -60°C to +200°C |
| Insulation Resistance | ≥1000MΩ (Normal); ≥20MΩ (Moistheat) |
| Contact Resistance | 0.8–5mΩ |
Working Principle
The connector transfers electrical power or signals through mating contacts inside the plug and receptacle. The threaded fastening structure helps maintain stable mechanical engagement, while the sealed glass-sintered receptacle design provides an additional barrier for demanding environmental conditions.
Applications
The 2PM Series can be used for electrical connection and signal transmission in industrial equipment, electronic systems, measurement equipment, control systems, communication equipment and other applications requiring secure circular connections.
Advantages
-
Reliable threaded mating structure
-
Durable aluminum alloy housing
-
Flexible silver/gold contact finish options
-
Wide operating temperature capability
-
Sealed receptacle options for demanding environments
-
Compatibility with corresponding 2PMT and 2РМДТ series components
-
Suitable for replacement and equipment integration
Service
We support product selection, sample orders, bulk purchasing and customized connector solutions. Contact us with your equipment requirements, connector configuration or application conditions for technical assistance and product matching.
FAQ
Q: Can the 2PM Series be used in high-temperature environments?
A: Yes. The specified operating temperature range is -60°C to +200°C.
Q: Does the series include sealed versions?
A: Yes. Glass-sintered sealed receptacle options are available for demanding applications such as vacuum and high-temperature environments.
Q: How is the connector secured?
A: The cable plug and panel receptacle use a threaded fastening structure.
Q: Can it replace corresponding Russian series components?
A: The 2PM Series can be matched and interchanged with corresponding original components of Russian 2PMT and 2РМДТ series.
