2PM-14 Series 4Pin Male Straight Cable Plug Unshielded – 2РМТ14КПН4Ш1В1В

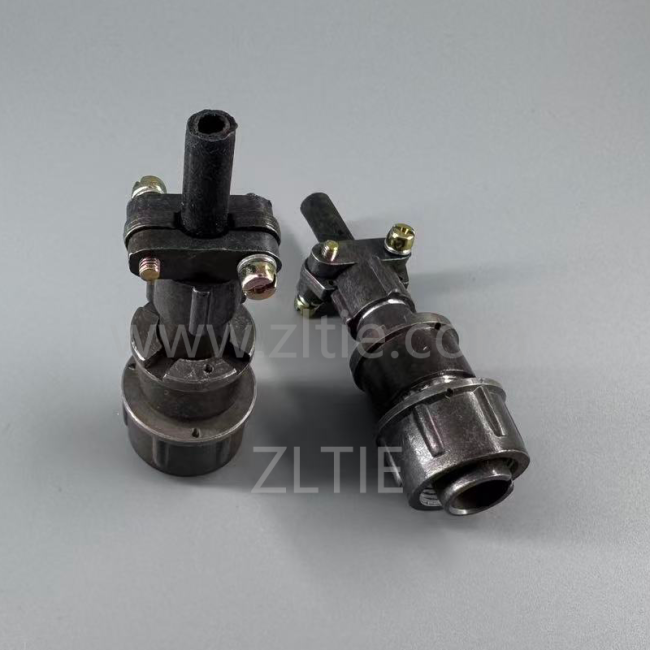

2PM Series 4-Pin Straight Circular Electrical Plug
Product Description
The 2PM series 4-pin circular electrical plug is a compact connection solution for electrical equipment requiring reliable power or signal transmission in a space-efficient circular format. With a straight configuration, Φ1.0 contacts, and threaded fastening, this model is designed for straightforward cable routing and secure mating with a compatible receptacle.
The connector housing is manufactured from die-cast aluminum alloy and receives surface oxidation treatment, providing a robust housing structure for equipment installation. Silver or gold contact finishes can be selected according to the required connection configuration.
The 2PM series uses an established Russian connector design and offers compatibility with suitable original components of the 2PMT and 2РМДТ series. Depending on the selected mating components, glass-sintered sealed sockets and wall sockets are also available for connection requirements involving vacuum, sealing, and elevated-temperature environments.
Key Characteristics
-
4-pin configuration for compact electrical or signal connections.
-
Straight orientation supports conventional cable routing and installation.
-
Φ1.0 contacts provide a compact contact arrangement.
-
Threaded fastening helps maintain secure mechanical coupling.
-
Die-cast aluminum alloy shell with oxidation surface treatment.
-
Silver or gold contact finish options.
-
Operating temperature range of -60°C to +200°C.
Technical Specifications
| Item | Specification |
|---|---|
| Connector Type | Plug |
| Shell Size | 14 |
| Orientation | Straight |
| Number of Positions | 4 Pin |
| Contact Size | Φ1.0 |
| Shell Material | Die-Cast Aluminum Alloy |
| Surface Treatment | Oxidation Treatment |
| Contact Finish | Silver / Gold |
| Fastening Type | Threaded |
| Rated Current | 5A |
| Rated Voltage | ≤700V AC |
| Operating Temperature | -60°C to +200°C |
| Insulation Resistance | ≥1000MΩ; Moistheat ≥20MΩ |
| Contact Resistance | 0.8–5MΩ |
Applications & Selection
This connector can be used in electrical equipment, industrial control systems, instrumentation, signal transmission equipment, and general equipment interconnection. The 4-pin version is appropriate when four contact positions are required within a compact connector body. Choose a straight configuration when conventional cable routing is preferred.
Advantages & Service
-
Compact 4-pin circular connection design.
-
Secure threaded coupling for compatible mating components.
-
Aluminum alloy housing with oxidation treatment.
-
Silver and gold contact-finish options.
-
Compatible matching with suitable 2PMT and 2РМДТ series components.
-
Support for samples, bulk orders, model selection, and technical consultation.
FAQ
Q: What is the rated current of this connector?
A: The specified rated current is 5A.
Q: What temperature range can this connector operate in?
A: The specified operating temperature is -60°C to +200°C.
Q: Is the connector compatible with 2PMT and 2РМДТ series components?
A: It can be matched and interchanged with compatible original components of these series.
