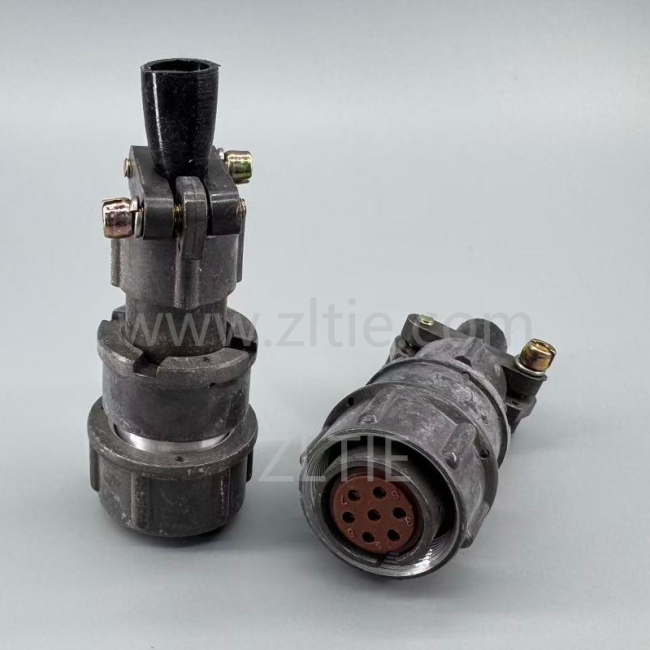

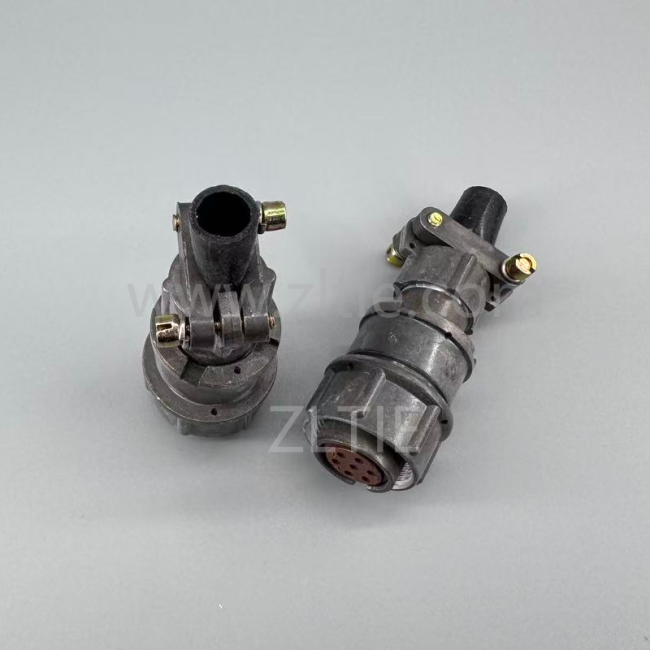

2PM-18 Series 7Pin Female Straight Cable Plug – 2РМТ18КПН7Г1А1B
2PM Series 7-Pin Circular Electrical Connector with Threaded Connection
Product Description
The 2PM series circular electrical connector is designed for reliable electrical connection and signal transmission between electrical equipment. Featuring a compact straight plug structure and threaded fastening, it provides a secure connection for equipment requiring stable mechanical retention and consistent electrical performance.
A key advantage of this connector is its compatibility with selected original components of the 2PMT and 2РМДТ series, providing a practical replacement and matching option for compatible equipment configurations. The series can also be combined with glass-sintered sealed panel sockets and wall sockets, supporting connection requirements in vacuum, sealed, and high-temperature environments.
Key Characteristics
-
7-pin configuration with Φ1.0 contacts for compact electrical and signal connections.
-
Threaded coupling helps maintain a stable connection during equipment operation.
-
Aluminum alloy shell with die-casting and surface oxidation treatment for mechanical durability.
-
Silver or gold contact finish options are available according to connection requirements.
-
Wide operating temperature range: -60°C to +200°C.
-
Compatible with suitable original components of the 2PMT and 2РМДТ series.
Technical Specifications
| Item | Specification |
|---|---|
| Connector Type | Plug |
| Shell Size | 18 |
| Orientation | Straight |
| Number of Positions | 7 Pin |
| Contact Size | Φ1.0 |
| Shell Material | Die-Cast Aluminum Alloy |
| Surface Treatment | Oxidation Treatment |
| Contact Finish | Silver / Gold |
| Fastening Type | Threaded |
| Rated Current | 5A |
| Rated Voltage | ≤700V AC |
| Operating Temperature | -60°C to +200°C |
| Insulation Resistance | ≥1000MΩ; Moistheat ≥20MΩ |
| Contact Resistance | 0.8–5mΩ |
Applications
The 2PM connector is suitable for electrical equipment, industrial control systems, instrumentation, signal transmission equipment, and other equipment requiring compact circular connectors. When matched with appropriate sealed panel or wall sockets, it can also be considered for vacuum, sealed, and high-temperature connection environments.
Advantages & Service
-
Stable threaded connection and compact circular design.
-
Multiple contact-finish options for different procurement requirements.
-
Support for compatible replacement and matching requirements.
-
Suitable for bulk supply and customized connector requirements.
-
Technical assistance available for model selection and product matching.
FAQ
Q: Can the 2PM series be matched with 2PMT or 2РМДТ series components?
A: It can be matched and interchanged with compatible original components of these series.
Q: Is a sealed version available?
A: Glass-sintered sealed panel and wall socket options are available for suitable applications.
Q: What is the operating temperature range?
A: The specified range is -60°C to +200°C.
