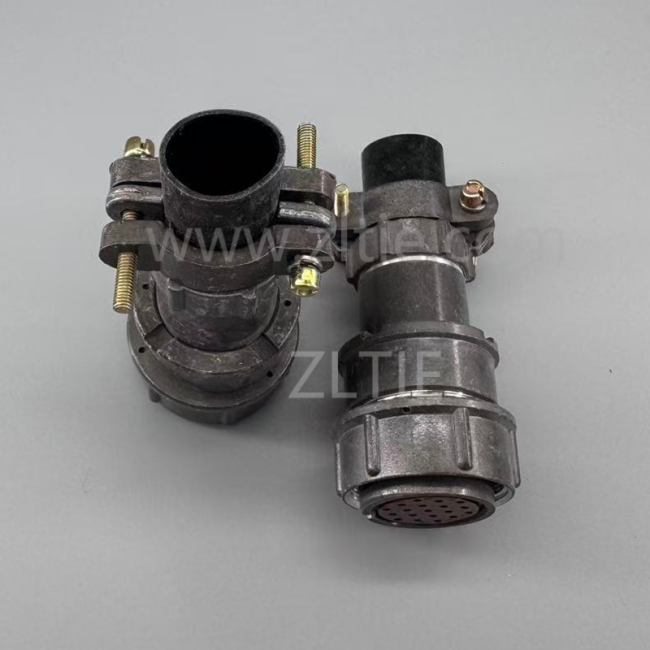

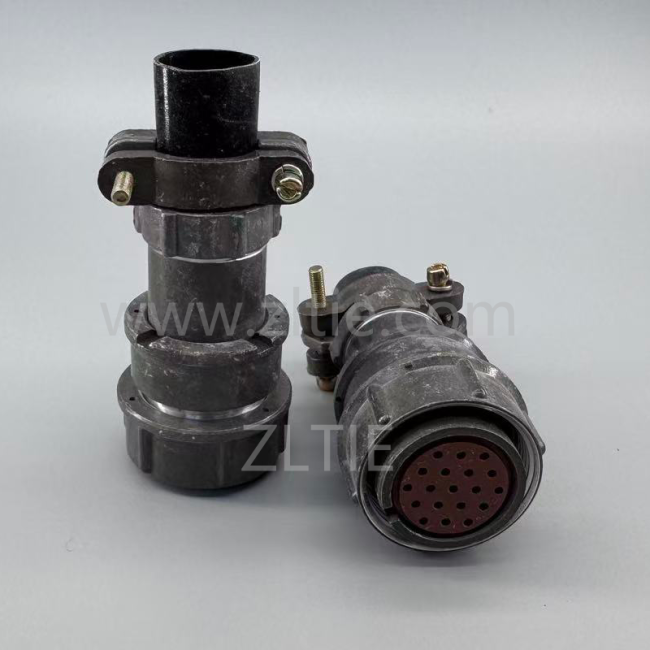

2PM-24 Series 19Pin Female Straight Cable Plug Unshielded – 2РМТ24КПН19Ш1В1В
2PM Series 19-Pin Circular Electrical Connector
Product Information
The 2PM Series circular electrical connector is designed for reliable electrical connection and signal transmission between electronic equipment. Its threaded coupling structure provides a secure connection, while the available glass-sintered sealed socket versions support applications requiring vacuum, sealing, and high-temperature resistance. The connector can also be matched and interchanged with original 2PMT and 2РМДТ series components, offering greater flexibility for equipment maintenance and replacement.
Key Characteristics
-
-- 19-pin configuration with Φ1.0 contacts for multi-circuit connection
-
-- Threaded fastening provides stable mechanical engagement
-
-- Aluminum alloy shell with die-cast construction and surface oxidation treatment
-
-- Silver or gold contact finish available
-
-- Wide operating temperature range from -60°C to +200°C
-
-- Glass-sintered sealed socket options for demanding environments
Technical Specifications
| Item | Specification |
|---|---|
| Connector Type | Plug |
| Shell Size | 24 |
| Orientation | Straight |
| Number of Positions | 19 Pin |
| Contact Size | Φ1.0 |
| Shell Material | Aluminum Alloy |
| Contact Finish | Silver / Gold |
| Fastening Type | Threaded |
| Rated Current | 5A |
| Rated Voltage | ≤700V AC |
| Operating Temperature | -60°C to +200°C |
| Insulation Resistance | ≥1000MΩ / ≥20MΩ (moist heat) |
| Contact Resistance | 0.8–5mΩ |
Advantages & Applications
The 2PM Series combines compact multi-contact construction, secure threaded coupling, and environmental sealing options. It is suitable for electronic equipment, industrial control systems, instrumentation, communication equipment, and other applications requiring stable power or signal transmission under demanding operating conditions.
Service & Customization
We provide technical specification confirmation, connector matching support, OEM/ODM services, sample orders, and bulk supply. Contact us with your equipment requirements or existing connector model for selection assistance.
FAQ
Q: Can it replace 2PMT and 2РМДТ series connectors?
A: The series is designed to match and interchange with original 2PMT and 2РМДТ series components. Please confirm the exact model before ordering.
Q: Are sealed versions available?
A: Yes. Glass-sintered sealed socket options are available for vacuum, sealing, and high-temperature applications.
Q: Can I request samples?
A: Yes. Please contact us for sample availability and technical confirmation.
