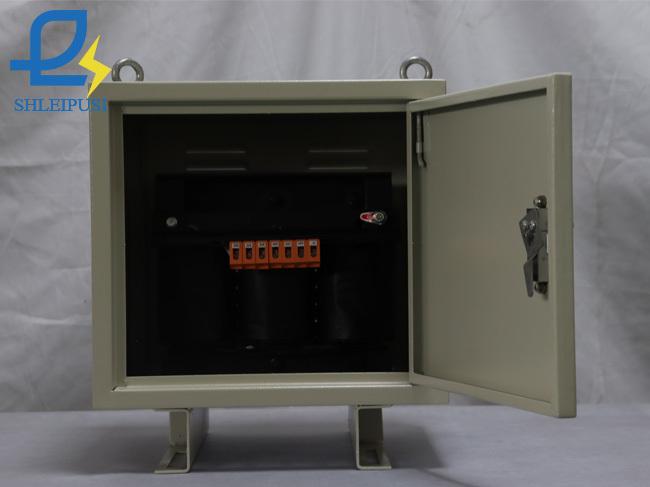

3 Phase Power Transformer Industrial Use Factory Use Voltage Transformer
Price:
1 pc≤Qty≤5 pcs 165USD; 5 pcs＜Qty≤100 pcs 157USD; 100pcs＜Qty 155USD
MOQ:
1
Delivery Time:
1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Brand:
SHLEIPUSI Or Support OEM/ODM Service
Product Description
OEM ODM Service 3 Phase Industrial Transformer | SG/SBK Series Customizable Dry Type Power Transformer
Contact Us
Tel: +86 15926315252 | Mobile/WeChat: +86 15926315252
Email: daniel@shlepus.com | WhatsApp: +86 18979230829
Product Introduction
Our OEM ODM Service 3 Phase Industrial Transformer (SG/SBK series) is a fully customizable, high-performance dry-type power solution engineered for global industrial, medical and renewable energy applications. With a standard 5KVA rated capacity and a fully scalable range from 500VA to 2000KVA, it delivers stable, high-precision voltage conversion for 50Hz/60Hz AC circuits with operating voltage up to 1000V. It supports standard 380V to 220V step-down and 220V to 380V step-up voltage ratios, with fully customizable voltage configurations to meet your project requirements. We provide end-to-end OEM and ODM services for global partners, and our transformers are widely trusted by electrical engineers, factory operators and medical facility managers worldwide, perfectly suited for factory power distribution, CNC machine tools, photovoltaic systems, EV charging stations, hospital precision equipment, generators, industrial motors and power transmission infrastructure.
Key Features & Customizable Advantages
This customizable 3 phase industrial transformer delivers industry-leading performance with high precision, fast response, long service life, low losses, full capacity operation and a wide voltage regulation range. Core features include a high-permeability silicon steel core for noise-free operation (<55dB) and high magnetic flux, high-purity winding material for superior conductivity and low temperature rise, and high-grade insulation materials that withstand 3500V dielectric strength tests with a premium nylon frame for stable Class F insulation performance. It features a digital display for real-time working status monitoring, a safety trip lock, brake-equipped universal wheels, input/output indicator lights, optimized heat emission holes, ±2% output precision, no additional waveform distortion, robust high-insulation terminals, and user-friendly wiring design. It is available in SG (cabinet-enclosed) and SBK (cabinet-free) models, with customizable IP23/IP44/IP54/IP64 protection grades, fully compliant with global environmental standards.
Why Choose SHLEIPUSI for OEM ODM Service
As a professional 3 phase industrial transformer manufacturer with full OEM/ODM capabilities serving the global market, we deliver tailored end-to-end power solutions meeting international quality benchmarks. We offer comprehensive one-stop OEM/ODM services, including custom power/voltage parameters, product appearance, brand logo printing on products and manuals, custom packaging, and tailored technical documentation. Every unit undergoes strict multi-stage quality inspection from raw material intake to final factory testing, ensuring zero defects and consistent performance. We support worldwide shipping via sea, air, land, express and railway, with all mainstream Incoterms available, plus lifetime free technical guidance, video/on-site installation support, and free replacement of defective components under warranty. With a monthly capacity of 10,000 small-power units and 2,000 large-power models, we accommodate flexible orders with a minimum order quantity of just 1 set.
Technical Specifications
| Parameter | Core Specification | Fully Customizable |
|---|---|---|
| Product Name | OEM ODM Service 3 Phase Industrial Transformer | Yes |
| Model | SG-5KVA | Yes (500VA-2000KVA) |
| Rated Capacity | 5KVA | Yes |
| Rated Input Voltage | 3 Phase 380V | Yes |
| Rated Output Voltage | 3 Phase 220V | Yes |
| Working Frequency | 50/60Hz | Yes |
| Output Precision | ±2% | Yes |
| Insulation Class | F | Yes |
| Working Efficiency | ≥90% | Yes |
| Cooling Method | Dry Type Air Cooling with Fan | Yes |
| Protection Grade | IP23 | Yes (IP44/IP54/IP64) |
| Noise Level | ＜55dB | Yes |
Frequently Asked Questions (FAQ)
- What OEM and ODM services do you provide for 3 phase industrial transformers?
We offer full OEM/ODM services including custom power/voltage parameters, step-up/step-down ratio, product appearance, brand logo printing, custom packaging, and tailored technical documentation to meet your project and brand requirements.
- What is the lead time for standard and OEM/ODM custom transformers?
Standard models ship within 3-7 working days; OEM/ODM custom orders take 10-30 days based on order quantity and customization requirements.
- How do you control the product quality for both standard and custom transformers?
We conduct professional quality inspection at every production stage from raw material incoming to final testing, and all units, including custom OEM/ODM models, pass full performance tests before shipment.
- What are your accepted payment terms for OEM/ODM orders?
30% deposit for standard products, at least 50% advance payment for OEM/ODM custom orders, with full balance settled before shipment.
- Do you provide technical support for custom OEM/ODM product installation?
Yes, our professional technical team offers full installation and application guidance, including remote video and on-site support worldwide for all our products.
- What packaging options are available for OEM/ODM orders?
Standard packaging uses reinforced wooden cases, and we fully support custom packaging designs, materials and branding for OEM/ODM projects.
- Can you print our brand logo on the transformers and user manuals?
Yes, we provide custom logo placement on products, operation manuals and technical specifications for all eligible OEM/ODM orders.
- What are your main global markets for OEM/ODM transformer services?
Our OEM/ODM services and products are supplied worldwide, covering Central Asia, East Asia, South Asia, Africa, South America and North America.
- What is your monthly production capacity for OEM/ODM bulk orders?
We produce 10,000 units of small-power transformers and 2,000 units of large-power models monthly, supporting large-scale OEM/ODM bulk orders.
- What is the minimum order quantity (MOQ) for your OEM/ODM services?
Our MOQ is 1 set for standard models, and we offer flexible MOQ terms for OEM/ODM custom orders based on your customization requirements.
- Can you customize the protection grade and enclosure for my application?
Yes, we fully customize protection grade from IP23 to IP64, enclosure design, and all technical parameters to match your industrial, medical or renewable energy project needs.
