Q235B EN S235JR JIS SS400 Heavy Steel Frame Building For Warehouse Logistics Centers
Price:
USD25-70 Square Meter/Negotiable
MOQ:
200 square meters
Delivery Time:
20-40days
Brand:
HCGG
Product Description

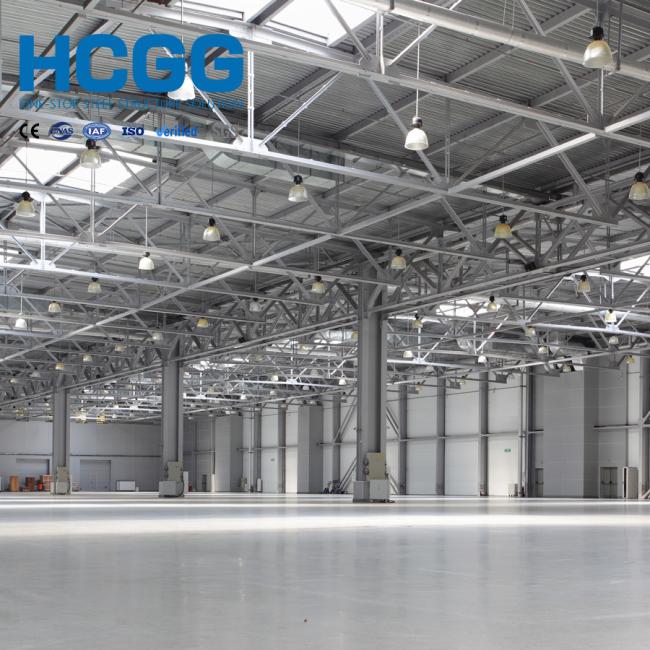

Heavy Steel Frame Building for Warehouse & Logistics Centers
Q235B/ASTM A36/EN S235JR/JIS SS400 compliant heavy steel structures designed for industrial warehouses and logistics centers.
Product Overview
Heavy steel structure buildings utilize load-bearing components constructed from large-section, thick steel plates and high-strength steel. These components are prefabricated in factories and assembled on-site, designed to withstand large loads, long spans, and heavy dynamic forces in high-rise or super high-rise industrial buildings.
Distinguished from ordinary light steel structures by thicker, stronger, and more robust components, heavy steel structures offer superior structural stability and represent the highest load-bearing capacity steel structure form for industrial and large public buildings.
As a versatile high-performance solution, heavy steel structures are ideal for heavy manufacturing, energy production, logistics, and chemical processing facilities.
Technical Specifications
| Main Material | Q235-Q355B Welded H Section Steel or Hot Rolled H Section Steel |
|---|---|
| Surface Treatment | Painted or Galvanized |
| Main Frame - Column | Q235, Q355 welded H section steel |
| Main Frame - Beam | Q235, Q355 welded H section steel |
| Secondary Frame - Purlin | Q235 Z/C steel purlin |
| Knee Brace | Q235 angle steel |
| Tie Rod | Q235 circular steel pipe |
| Brace | Q235 round bar |
| Vertical & Horizontal Support | Q234 angle steel/round bar/circular steel pipe |
| Roof & Wall Panel | EPS Sandwich Board, Single Corrugated Steel Plate, Glass Cotton Colored Board (Customer's Choice) |
| Window | PVC or Aluminum Alloy |
| Door | Sliding Door or Rolling Shutter Door |
Professional Services
Design
Complimentary structural design services tailored to your project requirements.
Manufacturing
Over 20 years of steel structure manufacturing experience with proven capability to produce diverse projects for clients worldwide.
Installation
Detailed installation drawings provided for smooth assembly. Comprehensive services including on-site installation, supervision, and training. Technical support available through online guidance or dispatched engineering teams.
Key Advantages
- Large component cross-sections and thick steel plates for superior load-bearing capacity and rigidity
- Extremely high load-bearing capacity for heavy-duty vehicles, machinery, and high-rise building loads
- Large spans up to 30 meters, 60 meters, or larger with minimal internal columns
- High overall rigidity and stability with superior earthquake, wind, and deformation resistance
- Industrialized prefabrication with factory-made components and on-site bolt/welding assembly
Technical Support Services
- Pre-project technical consultation, structural optimization, and feasibility analysis
- Professional structural calculations, detailed construction drawings, and BIM technology
- Raw material selection, processing guidance, and quality control solutions
- On-site installation guidance, construction coordination, and safety management
- Corrosion protection and fire protection system technical services
- Project acceptance documentation and comprehensive after-sales technical support
